PICOe-HM650 Half-size PCIe CPU Card

Page 32

Pin Description

Pin Description

12 PAPER

EMPTY

25 GND

13 PRINTER

SELECT 26 NC

Table 3-17: Parallel Port Connector Pinouts

3.2.16 SATA 6Gb/s Connector

CN Label:

S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connector

CN Location:

See

6

Figure 3-17

CN Pinouts:

See

6

Table 3-18

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 6Gb/s.

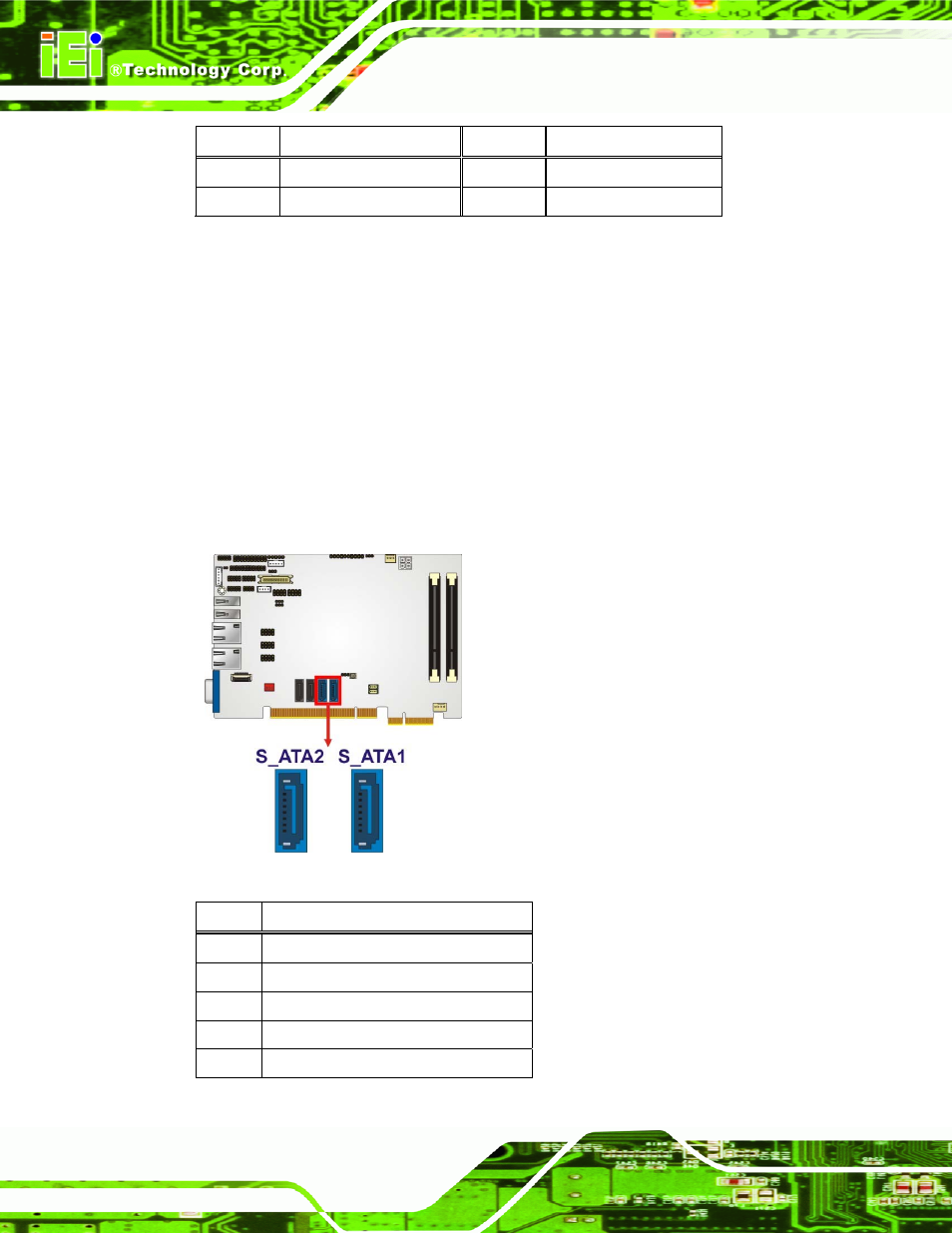

Figure 3-17: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-
