PICOe-HM650 Half-size PCIe CPU Card

Page 28

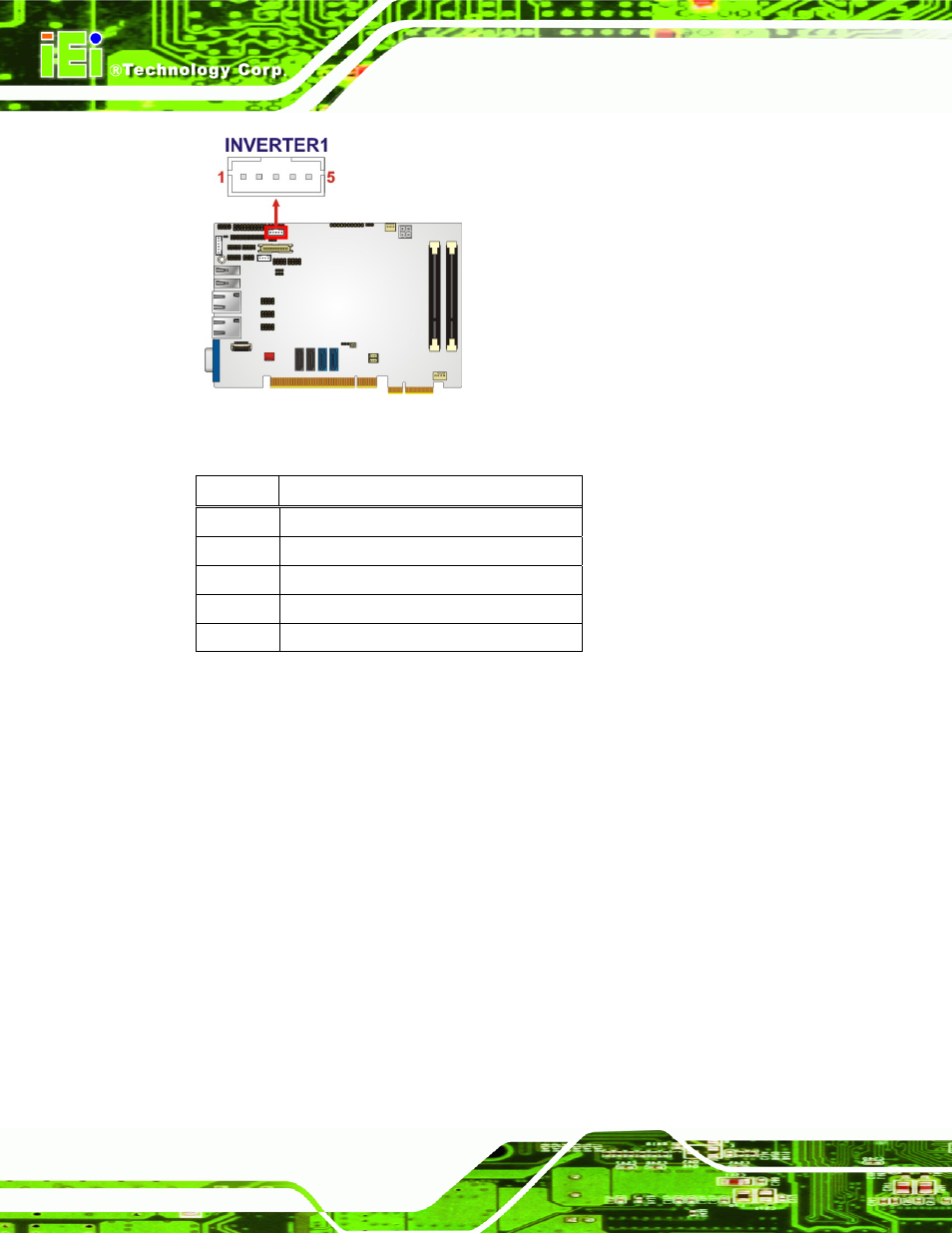

Figure 3-13: Backlight Inverter Connector Location

Pin Description

1 BACKLIGHT

ADJUST

2 GROUND

3 +12

V

4 GROUND

5 BACKLIGHT

ENABLE

Table 3-14: Backlight Inverter Connector Pinouts

3.2.13 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer (1x6)

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-15

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2

Y-cable to add keyboard and mouse functionality to the system.
