PICOe-HM650 Half-size PCIe CPU Card

Page 22

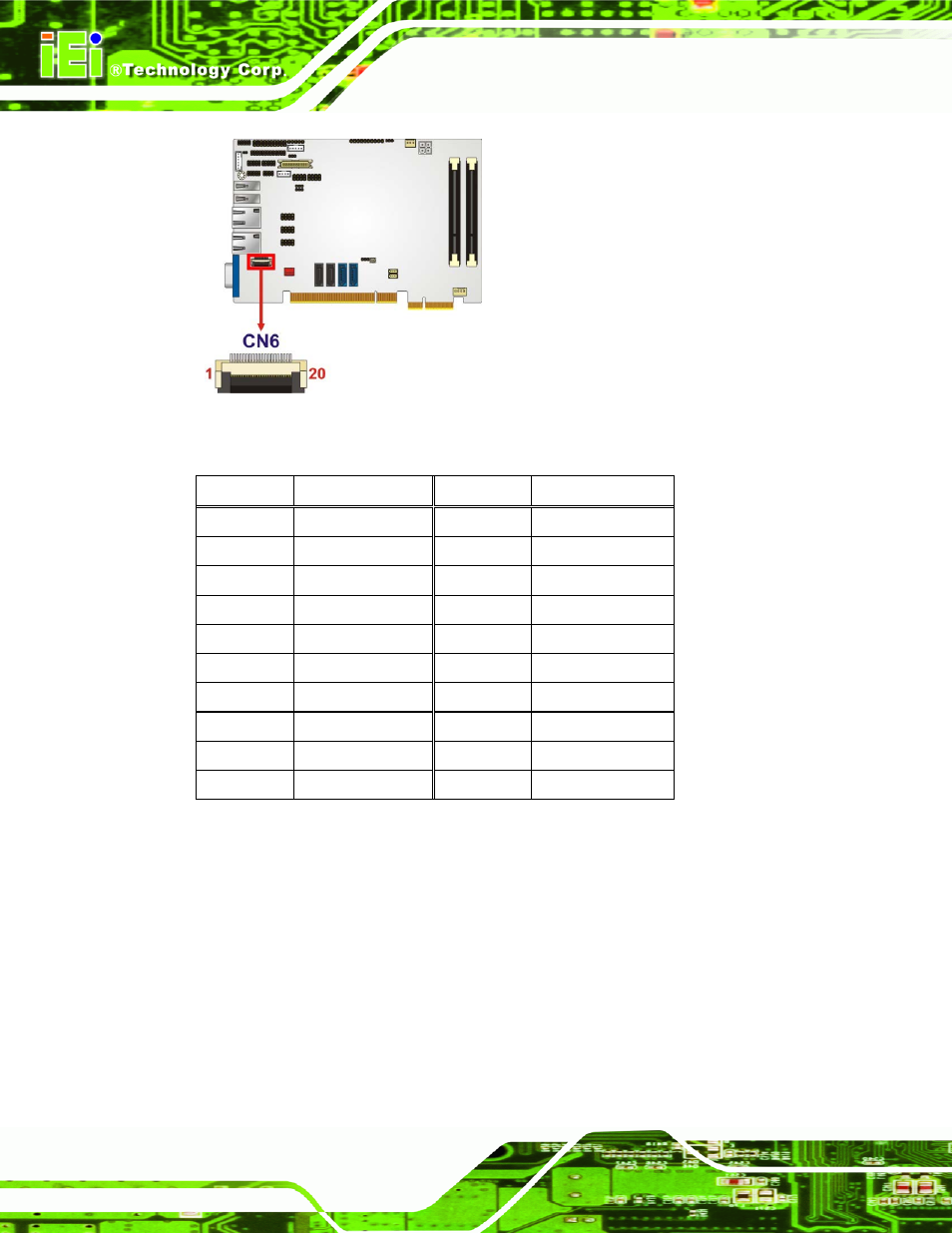

Figure 3-7: EC Debug Connector Location

Pin Description

Pin Description

1 EC_EPP_STB#

11

EC_EPP_BUSY

2 EC_EPP_PD0

12

EC_EPP_KSI5

3 EC_EPP_PD1

13

EC_EPP_KSI4

4 EC_EPP_PD2

14

EC_EPP_AFD#

5 EC_EPP_PD3

15

NC

6 EC_EPP_PD4

16

EC_EPP_INIT#

7 EC_EPP_PD5

17

EC_EPP_SLIN#

8 EC_EPP_PD6

18

GND

9 EC_EPP_PD7

19

GND

10 NC

20 GND

Table 3-8: EC Debug Connector Pinouts

3.2.7 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer (1x4)

CN Location:

See

6

Figure 3-8

CN Pinouts:

See

6

Table 3-9
