PCIE-Q670 PICMG 1.3 CPU Card

Page 49

4.2.2 Socket LGA1155 Cooling Kit Installation

The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.

WARNING:

Do not wipe off (accidentally or otherwise) the pre-sprayed layer of

thermal paste on the bottom of the heat sink. The thermal paste

between the CPU and the heat sink is important for optimum heat

dissipation.

To install the cooling kit, follow the instructions below.

Step 1:

A cooling kit bracket is pre-installed on the rear of the motherboard. See Figure

4-5.

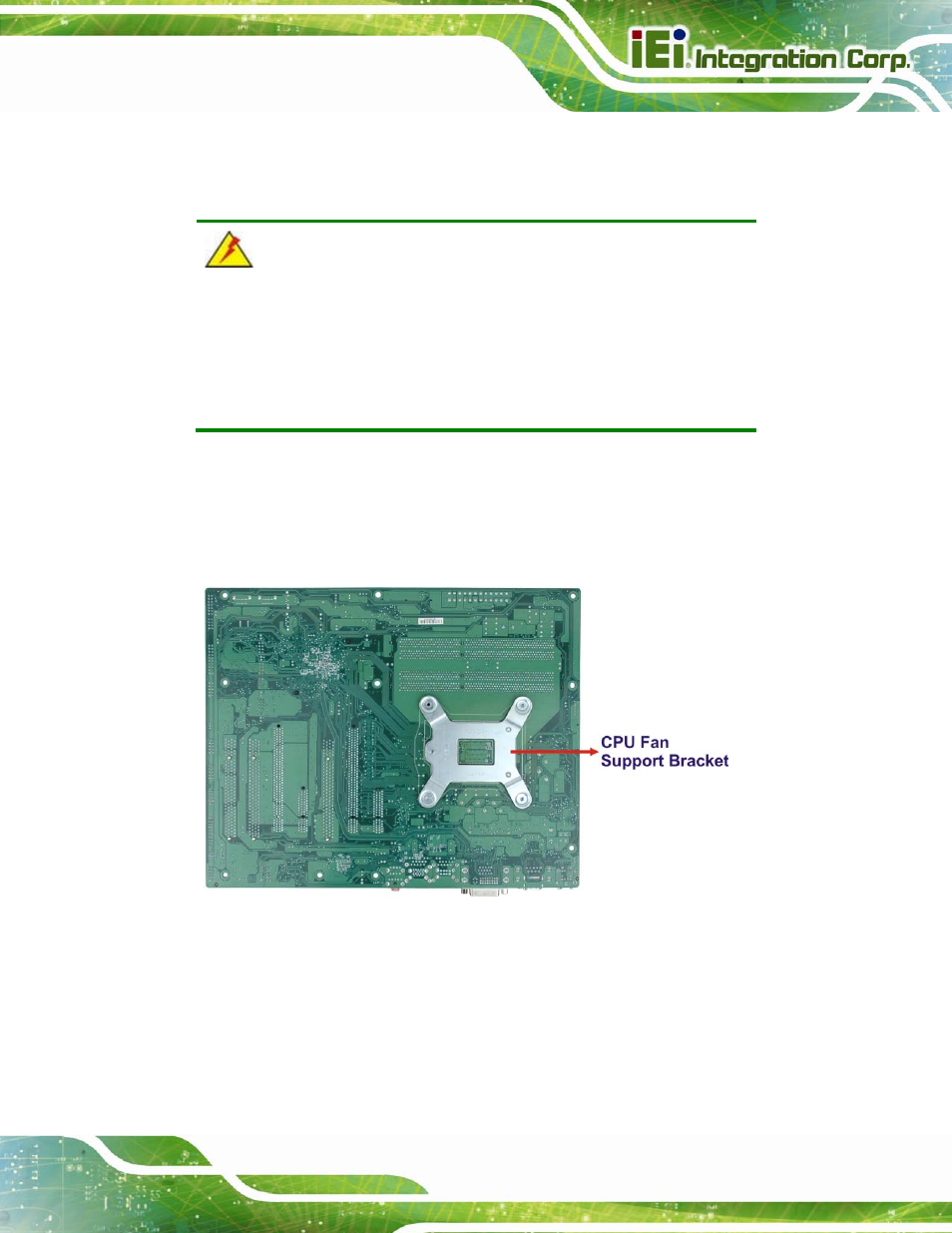

Figure 4-5: Cooling Kit Support Bracket

Step 2:

Place the cooling kit onto the socket LGA1155 CPU. Make sure the CPU

cable can be properly routed when the cooling kit is installed.
