PCIE-Q670 PICMG 1.3 CPU Card

Page 24

The DVI-D connector connects to a monitor that supports DVI video input via the

DVI-D/USB kit.

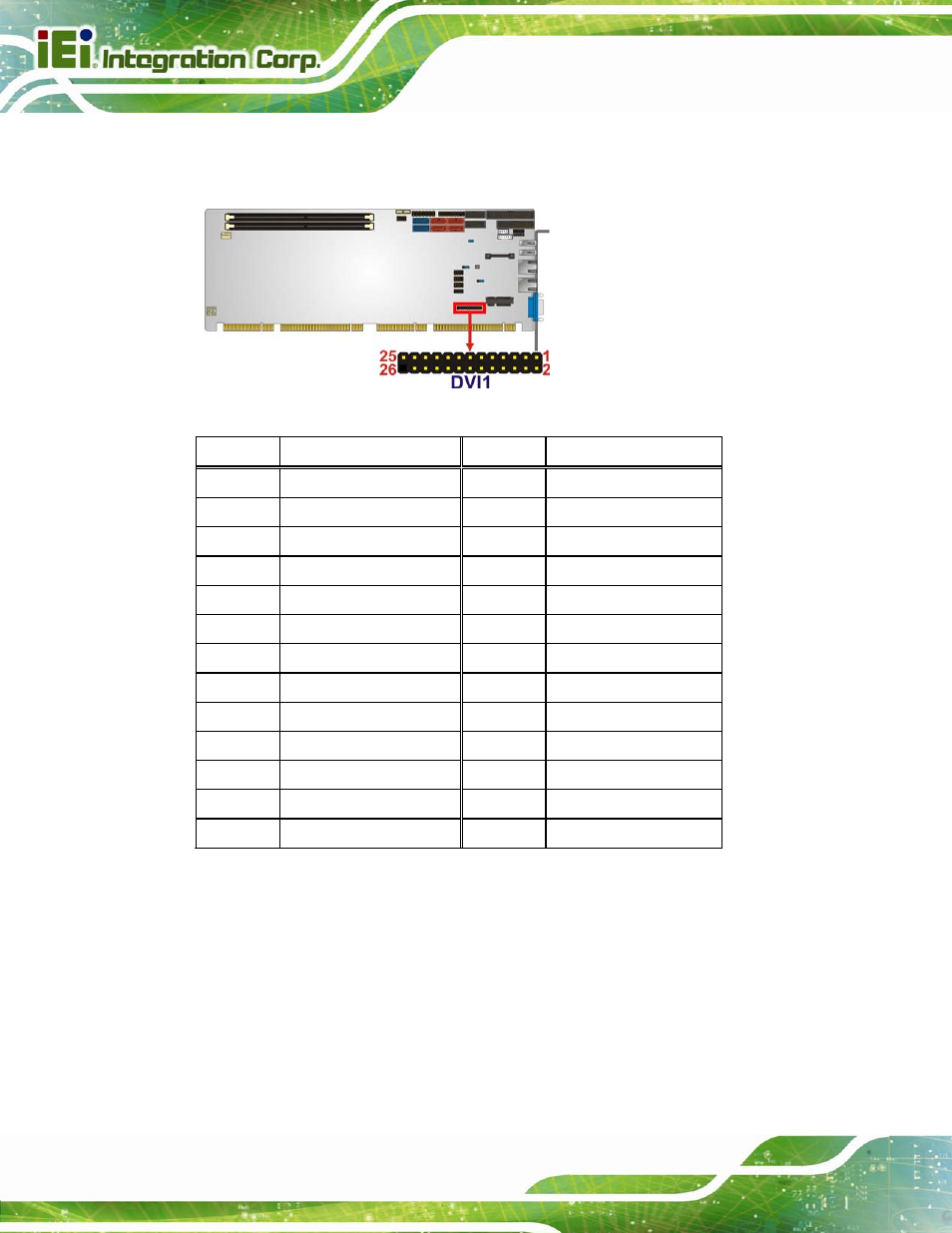

Figure 3-7: DVI-D Connector Location

Pin Description

Pin Description

1

Data 2-

2

Data 2+

3

GND

4

NC

5

NC

6

DDC Clock

7

DDC Data

8

NC

9

Data 1-

10

Data 1+

11

GND

12

NC

13

NC

14

VCC

15

GND

16

Hot Plug Detect

17

Data 0-

18

Data 0+

19 GND

20 NC

21

NC

22 GND

23

Clock +

24

Clock -

25 GND

26 NC

Table 3-7: DVI-D Connector Pinouts

3.2.7 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-8
