PCIE-Q670 PICMG 1.3 CPU Card

Page 25

The fan connector attaches to a CPU cooling fan.

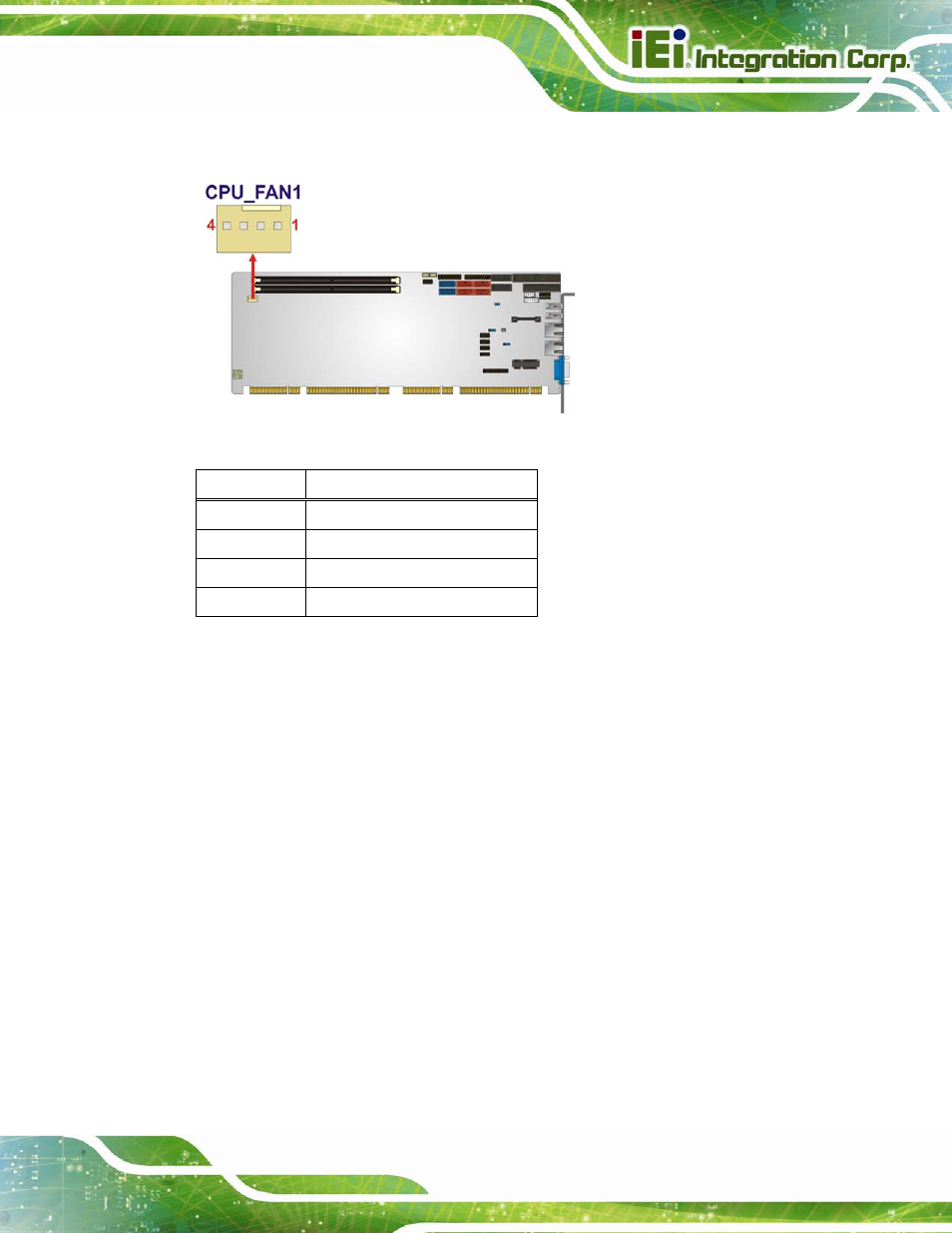

Figure 3-8: CPU Fan Connector Location

PIN NO.

DESCRIPTION

1

GND

2

+12 V

3

Rotation Signal

4

PWM Control Signal

Table 3-8: CPU Fan Connector Pinouts

3.2.8 Floppy Disk Drive Connector

CN Label:

FDD1

CN Type:

34-pin header

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-9

The floppy disk drive connector is connected to a floppy disk drive.
