PCIE-Q670 PICMG 1.3 CPU Card

Page 5

1.5 Dimensions

The main dimensions of the PCIE-Q670 Series are shown in the diagram below.

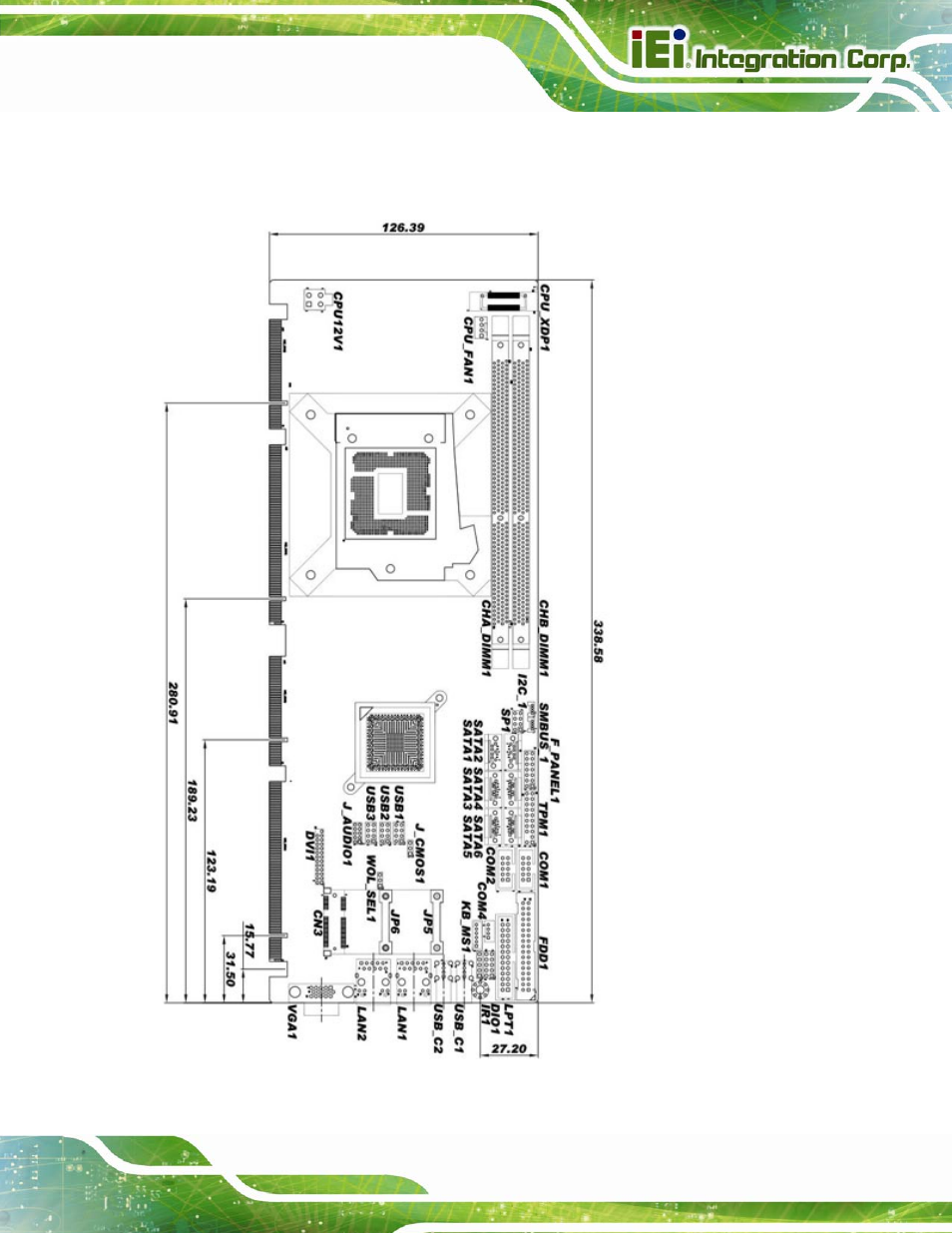

Figure 1-3: PCIE-Q670 Series Dimensions (mm)
