1.1 Introduction

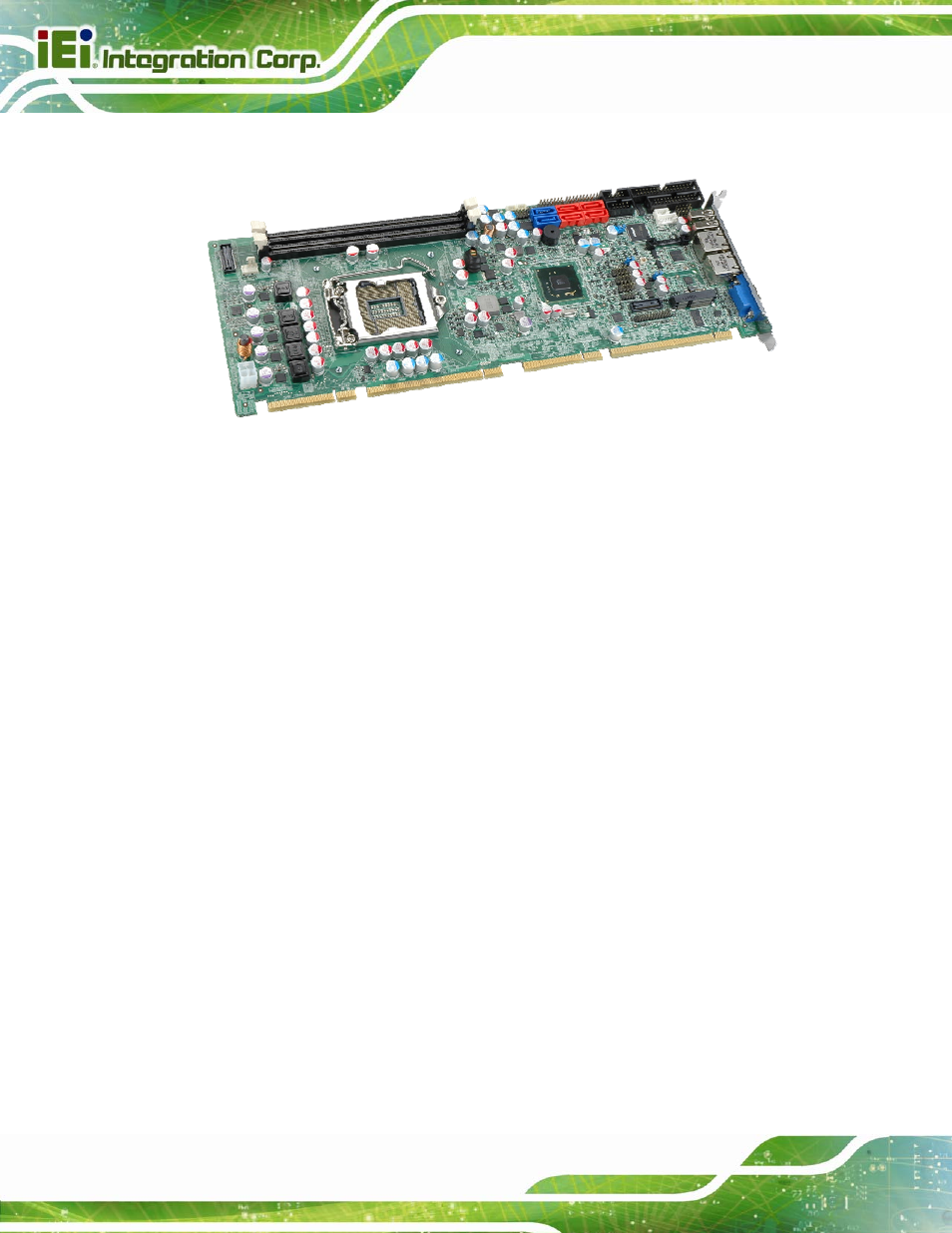

Figure 1-1: PCIE-Q670 Series
The PCIE-Q670 Series PICMG 1.3 CPU card is a Socket LGA1155 32nm Intel® Core™
i3/i5/i7/Pentium®/Celeron® processor platform that supports two 240-pin 1066/1333 MHz
dual-channel DDR3 DIMM modules up to 16.0 GB.
The PCIE-Q670 Series supports two GbE interfaces through the Intel® 82579 Ethernet
PHY (with Intel® AMT 7.0 support) and the Intel® 82583V Ethernet controller.
The integrated Intel® Q67 chipset supports two SATA 6Gb/s and four SATA 3Gb/s drives.
Two USB 2.0 on the rear panel, six USB 2.0 by pin header and one PCIe Mini interface
provide flexible expansion options. High Definition Audio (HDA) support ensures HDA
devices can be easily implemented on the PCIE-Q670 Series.
