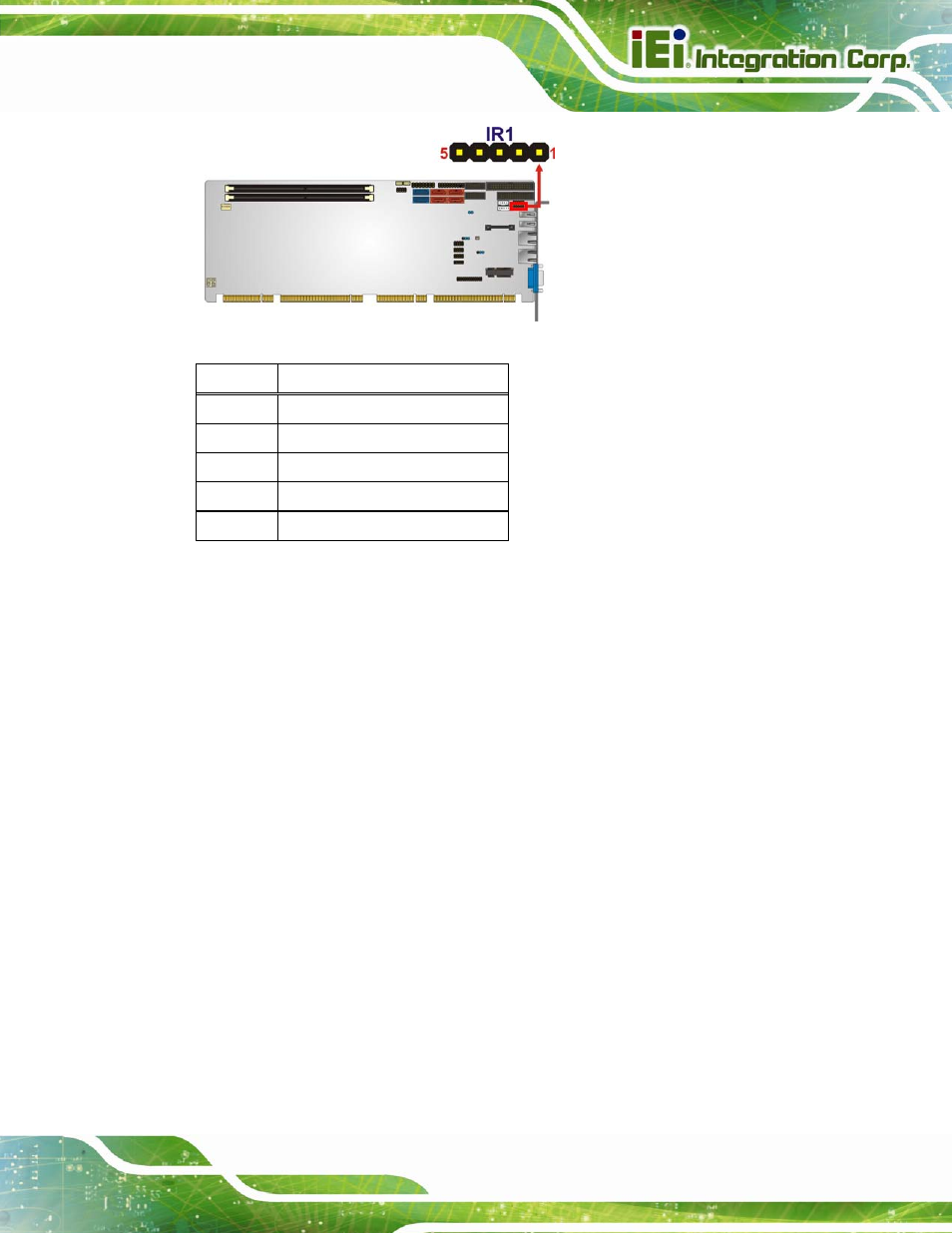

Figure 3-12: Infrared Connector Location

Pin Description

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 3-12: Infrared Connector Pinouts

3.2.12 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-13

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.
