PCIE-Q670 PICMG 1.3 CPU Card

Page 4

1.4 Connectors

The connectors on the PCIE-Q670 Series are shown in the figure below.

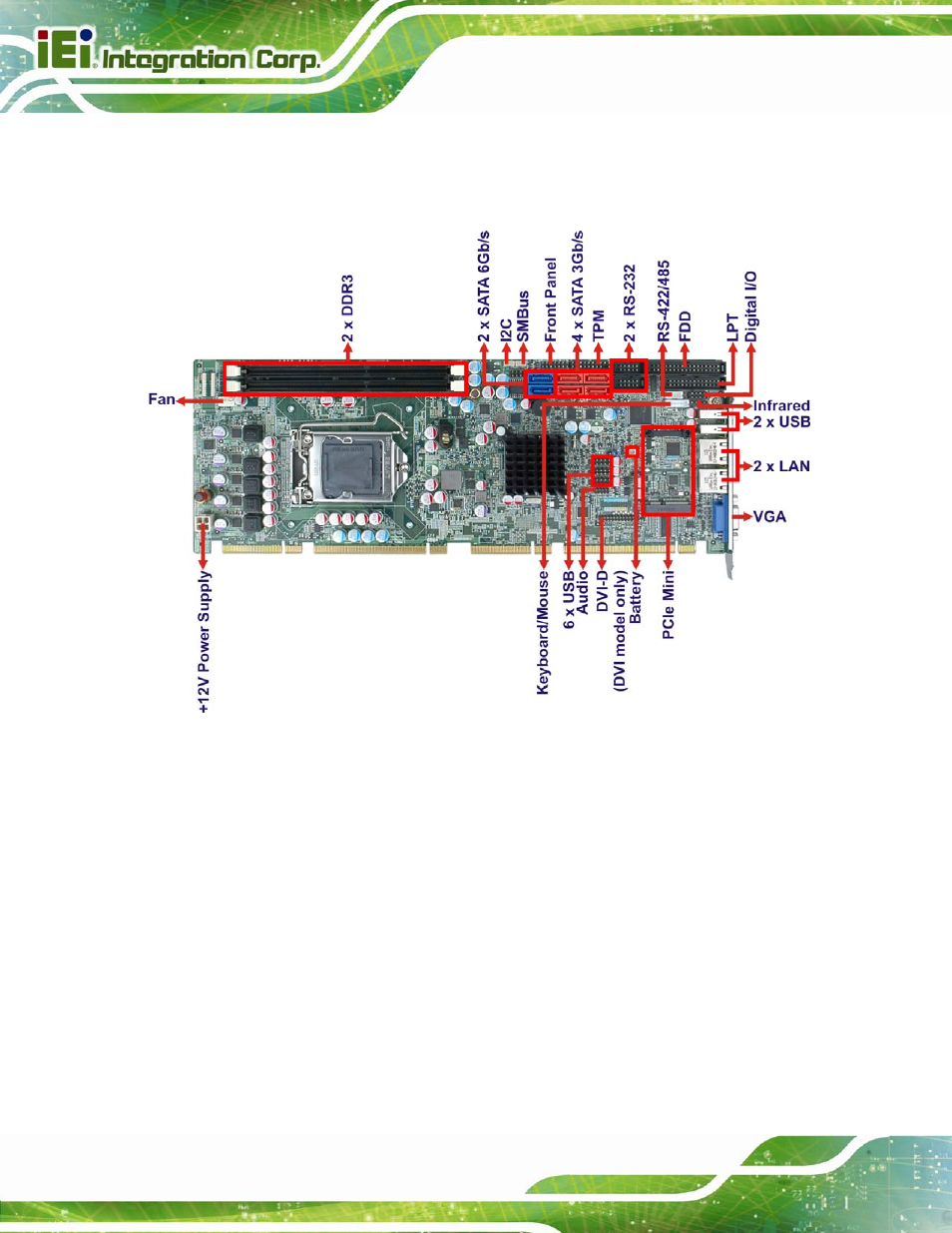

Figure 1-2: Connectors
