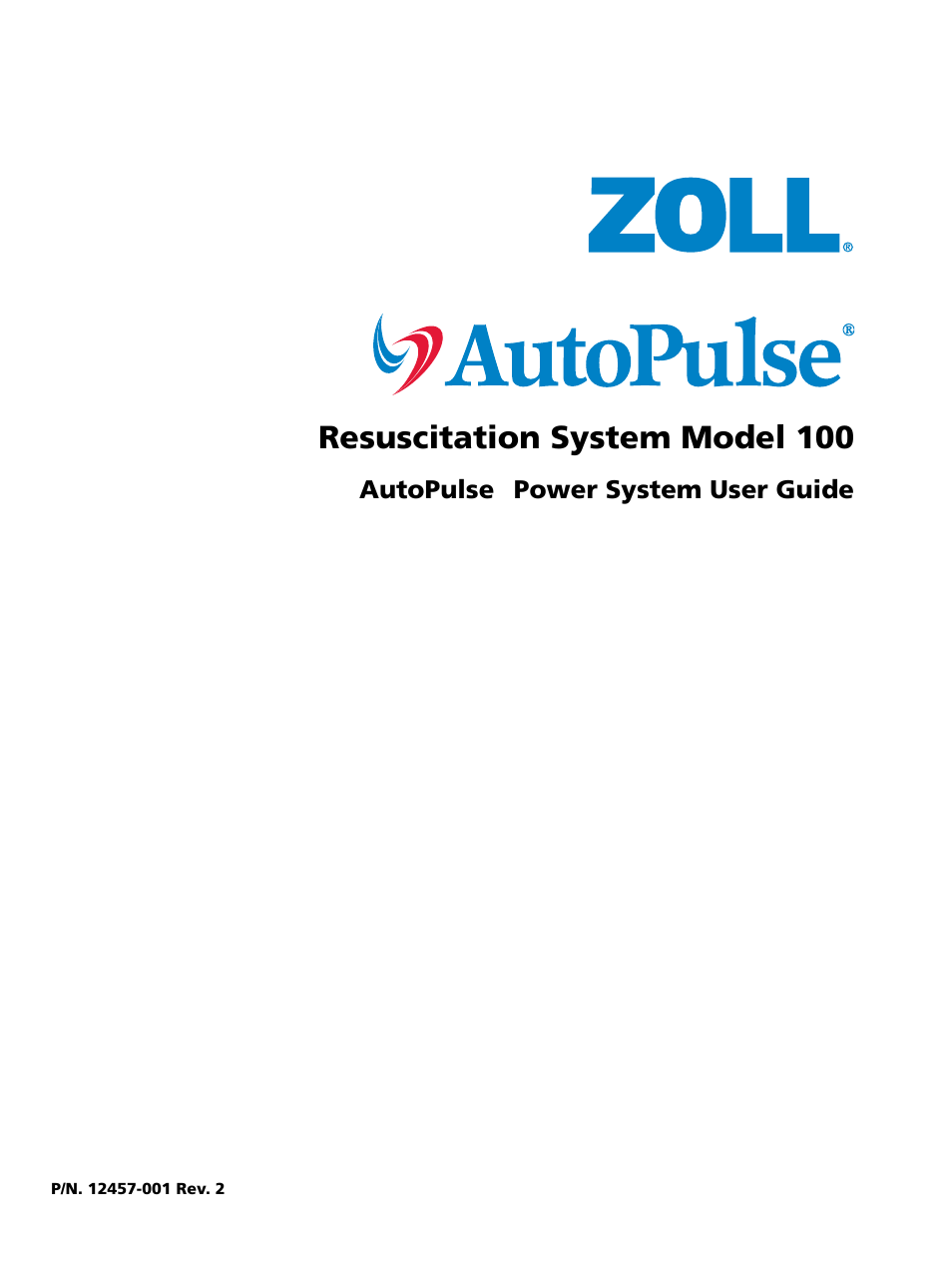

ZOLL AutoPulse Rev A User Manual
Resuscitation system model 100, Autopulse, Power system user guide
Table of contents
Document Outline
- Resuscitation System Model 100
- Notice
- Table of Contents
- Figures
- Tables
- Preface
- Who Should Read this Guide
- General Warnings and Precautions
- Symbols
- 1 Introduction of the AutoPulse Power System
- 1.1 Recommended Battery, Charger and AutoPulse Ratios
- Figure 1-2 Recommended component ratios
- 2 AutoPulse Li-Ion Battery
- 3 AutoPulse NiMH Battery
- 4 The AutoPulse Multi-Chemistry Battery Charger
- Figure 4-1 AutoPulse Multi-Chemistry Battery Charger
- 4.1 Setting Up the AutoPulse Multi-Chemistry Battery Charger
- 1. Plug the alternating current (AC) power cord into the power receptacle on the back of the AutoPulse Multi-Chemistry Battery Charger.
- 2. Plug the AC power cord into an appropriate wall outlet receptacle.
- 3. When the AutoPulse Multi-Chemistry Battery Charger is powered on, all the LED’s illuminate briefly as the Charger performs a self test.
- 4. When the power indicator (green LED) on the AutoPulse Multi-Chemistry Battery Charger’s Control Panel illuminates, the AutoPu...
- 1. Plug the alternating current (AC) power cord into the power receptacle on the back of the AutoPulse Multi-Chemistry Battery Charger.
- 4.2 Operating the AutoPulse Multi-Chemistry Battery Charger
- 1. Slide the Battery into an available charging bay (see Figure 4-2). Make sure that the Battery locks into place (locking bar engaged).
- Figure 4-2 Sliding the Battery into a Multi-Chemistry Battery Charger Charging Bay
- 2. The Multi-Chemistry Battery Charger automatically detects the presence of a Battery within 5 seconds.
- 3. The Multi-Chemistry Battery Charger’s status will be indicated on the control panel (see Figure 4- 3 and Table 4-1).
- 4. AutoPulse Li-Ion batteries placed in a charging bay are automatically charged and tested for minimal performance (Charging LED illuminated) in less than 4¹ hours.
- 5. AutoPulse NiMH batteries placed in a charging bay are automatically charged and tested for minimal performance (Charging LED illuminated) in less than 6¹ hours.
- 6. The AutoPulse Multi-Chemistry Battery Charger automatically conducts a Performance Test on both the AutoPulse Li-Ion Battery ...
- 7. Once the green LED on the Charger illuminates the Battery is fully charged and has successfully passed the Performance Test. The Battery is ready to use.
- Table 4-1 AutoPulse Multi-Chemistry Battery Charger Status LEDs (Page 1 of 2)
- 4.2.1 AutoPulse Multi-Chemistry Battery Charger Test-Cycle mode
- 1. Slide the Battery into an available charging bay (see Figure 4-2). Make sure that the Battery locks into place (locking bar engaged).
- 5 Using the AutoPulse Battery
- 6 Managing the AutoPulse Power System
- 6.1 AutoPulse Battery Management
- 6.2 AutoPulse Battery Maintenance
- 7 AutoPulse Multi-Chemistry Battery Charger Maintenance
- 7.1 Cleaning the AutoPulse Multi-Chemistry Battery Charger
- 7.2 Replacing a AutoPulse Multi-Chemistry Battery Charger Fuse
- 1. Unplug the Power Cord from the wall outlet and from the receptacle on the back of the AutoPulse Multi-Chemistry Battery Charger. Wait one minute before going to step 2.
- 2. The fuse holder is located directly under the power receptacle on the back of the AutoPulse Multi- Chemistry Battery Charger (see Figure 7-1). Open the fuse holder by pressing down on the locking tab and pulling the fuse holder straight out.
- 3. Check both of the fuses. If a fuse must be replaced, follow these steps:
- 1. Unplug the Power Cord from the wall outlet and from the receptacle on the back of the AutoPulse Multi-Chemistry Battery Charger. Wait one minute before going to step 2.
- Appendix A AutoPulse Daily Checklist
- Appendix B Troubleshooting
- Table B-1 Battery Troubleshooting Procedures
- 1. If its Charging LED is illuminated, the Multi- Chemistry Battery Charger is attempting to restore the Battery. Refer to Chapter 4, “Operating the AutoPulse Multi-Chemistry Battery Charger” for more information.
- 1. If the Battery status LED is flashing red, the Battery has failed. Replace the Battery. Refer to Section 6.2.4, “Reaching the...
- 2. If no status LEDs illuminate when you press the Battery’s Status Check button, the Battery has failed. Replace the Battery. R...
- 3. If a Li-Ion Battery’s internal temperature is below a nominal 41˚F (5˚C), it will fail to charge. Remove from Charger, allow the Battery to warm to room temperature (may take up to 3 hours), and re-insert in Charger.
- 4. If the Li-Ion Battery status LED’s are green or yellow, or the NiMH Battery status LED’s are green or amber, remove and re-insert the Battery. If the Charger’s FAIL LED remains illuminated, contact ZOLL.
- Appendix C Technical Specifications
