Figure 4-3 multi-chemistry charger control panel – ZOLL AutoPulse Rev A User Manual
Page 19
P/N. 12457-001 Rev. 2
Page 4-3
Power System User Guide
Note:
Do not slam a Battery into a Charger because doing so may cause damage to the Battery’s
Connector.
Note:
Both Batteries are mechanically keyed so that they can only be inserted in one orientation. Do
not force a Battery into a charging bay. If resistance is met, check for appropriate orientation,
and check to ensure that there are no obstructions to battery insertion.

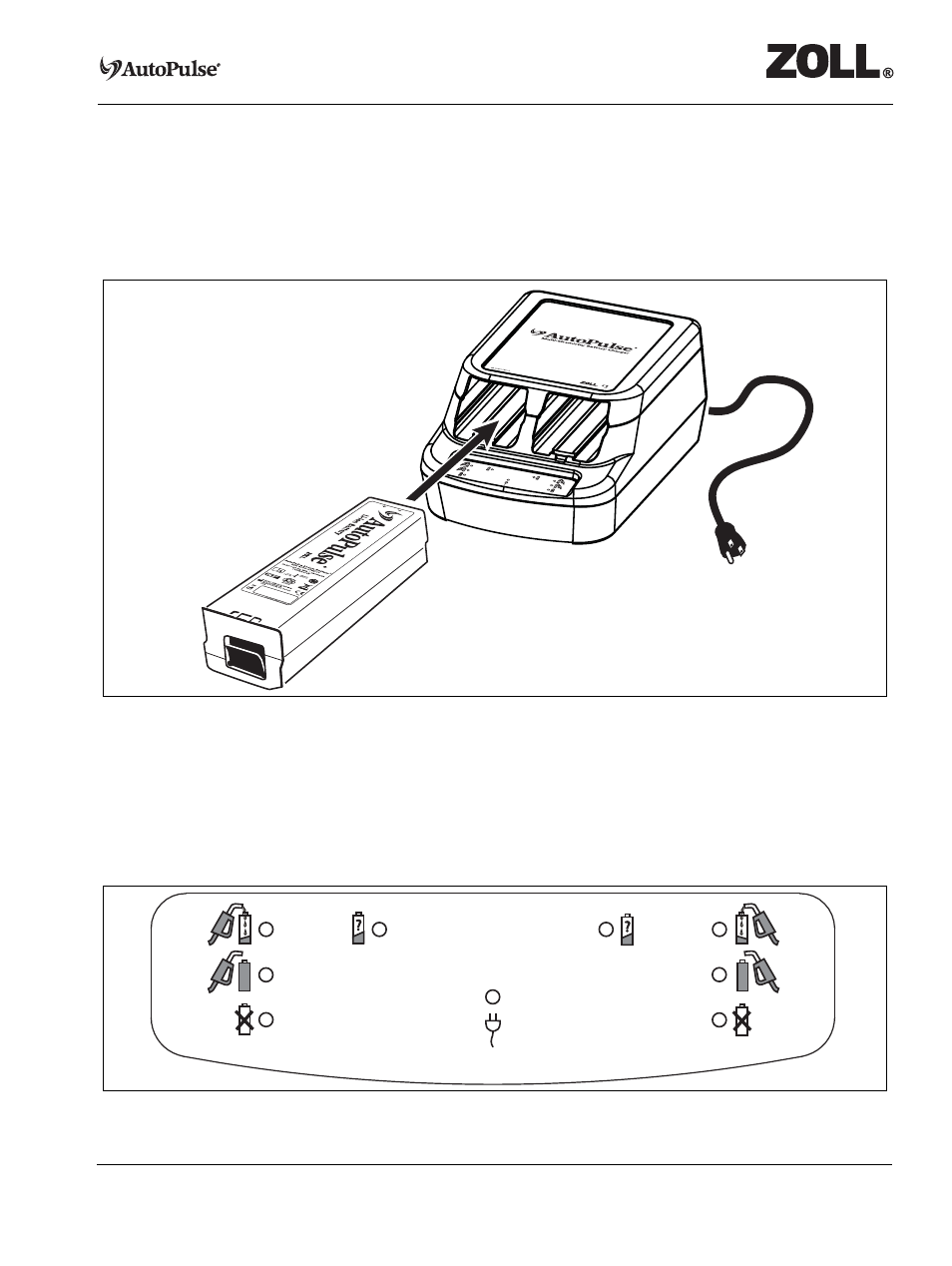

Figure 4-2 Sliding the Battery into a Multi-Chemistry Battery Charger Charging Bay
2.
The Multi-Chemistry Battery Charger automatically detects the presence of a Battery within 5
seconds.
3.
The Multi-Chemistry Battery Charger’s status will be indicated on the control panel (see Figure 4-
3 and Table 4-1).
Figure 4-3 Multi-Chemistry Charger Control Panel
