Page 5-6 P/N. 12457-001 Rev. 2
Power System User Guide
5.5 Battery Rotation
After every use, at the beginning of a shift, or at least once every 24 hours, the Battery in the AutoPulse
should be replaced with a fully charged Battery.

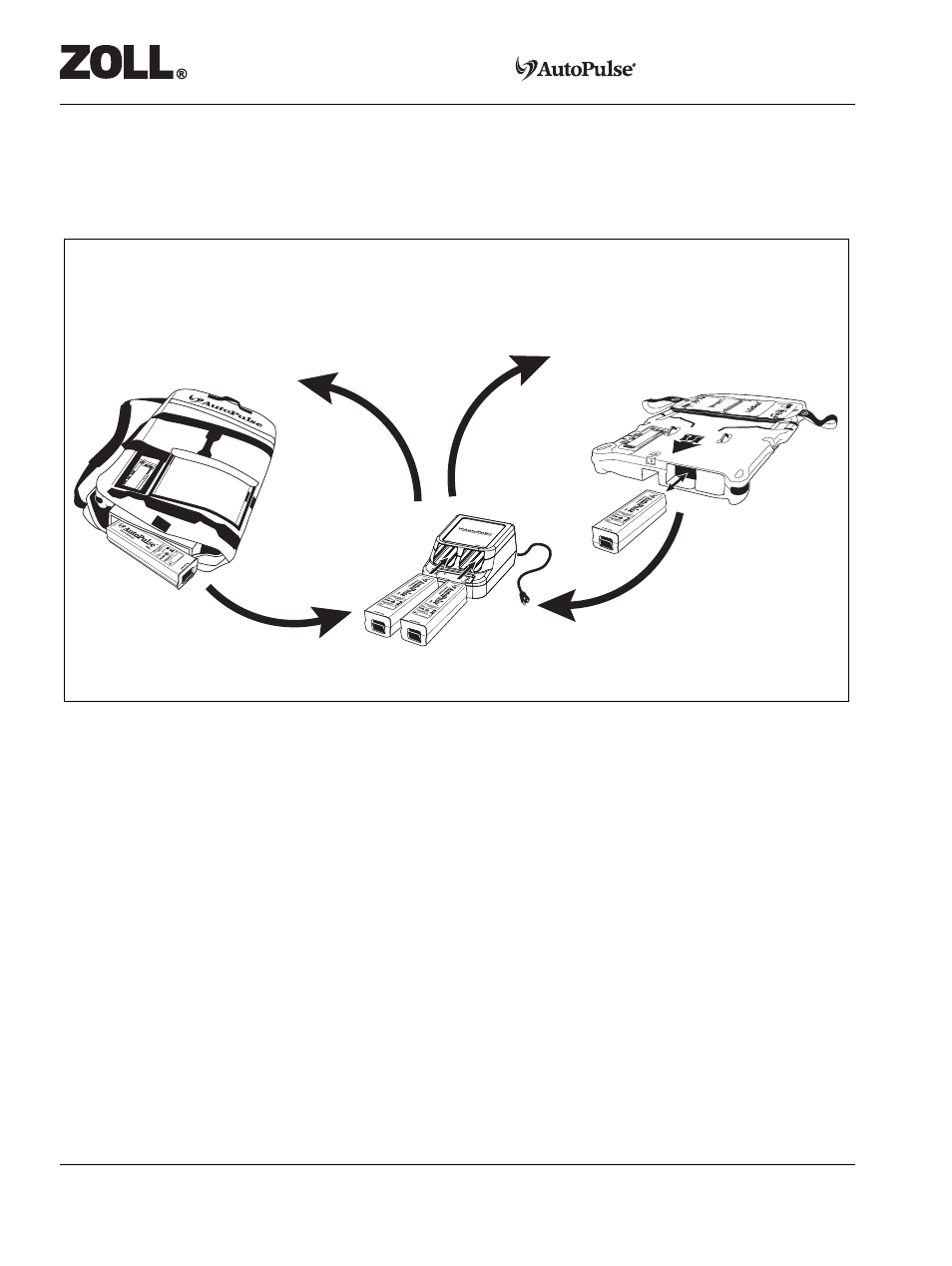

Figure 5-5 Four Battery rotation
Four Battery Rotation—to be done after every use and/or once per shift (see Figure 5-5 above).
• Remove the Battery from the AutoPulse, and place it into the Charger.
• Remove the spare Battery, and place it into the Charger.
• Take two fully charged Batteries from the Charger, check for green LEDs on each Battery, and then
place one into the AutoPulse, and use the second as a spare.
• Power on the AutoPulse and ensure no faults are displayed.
1
Replace the spare Battery
with a freshly-charged
Battery from the
Charger.
3
Charge the Platform Battery
and the Spare Battery.
Check the Battery
status
LED s before
placing a Battery
in service.
2
Replace the Platform
Battery with a freshly
charged Battery from
the Charger.
Recommended daily 4 Battery maintenance routine
