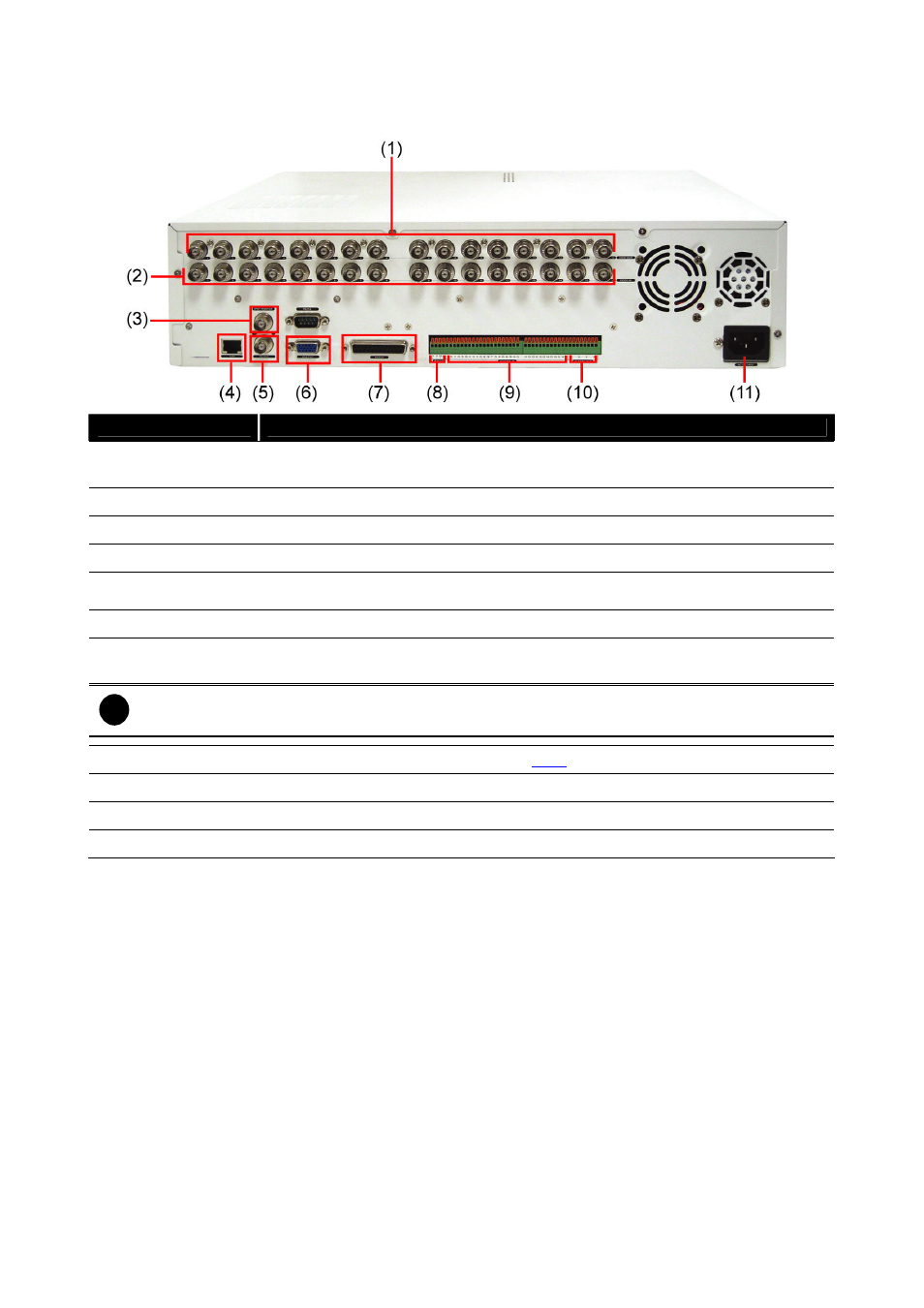

Back Panel
Name
Function
(1) Video Loop Out
Output the video signal to a CCTV monitor. Only output one channel signal at a
time.
(2) CH1~ 16
Input the video camera signal and display it on channel 1~ 16
(3) Spot Monitor
Output a video signal to a Spot Monitor when an alarm event is coming
(4) LAN Port
For Ethernet connection
(5) TV Out
Output the video signal to a TV
(6) VGA Out
Output the video signal to a CRT or LCD monitor
(7) Audio I/O
Support 16 channels audio input (ex. Microphone) and 2 channels of audio
output(ex. Speaker)
i
The audio input device needs to be powered by external power.
(8) RS485
For PTZ camera connection (also see
1.5.3
)
(9) Sensor In
Support up to 16 sensor devices
(10) Alarm Out
Support 4 relay devices (Relay: 1A @ 125V AC/30V DC)
(11) Power Plug
Connect the power cord into this port
