WEATHER GUARD 360-3-01 - Manual (Page 2)

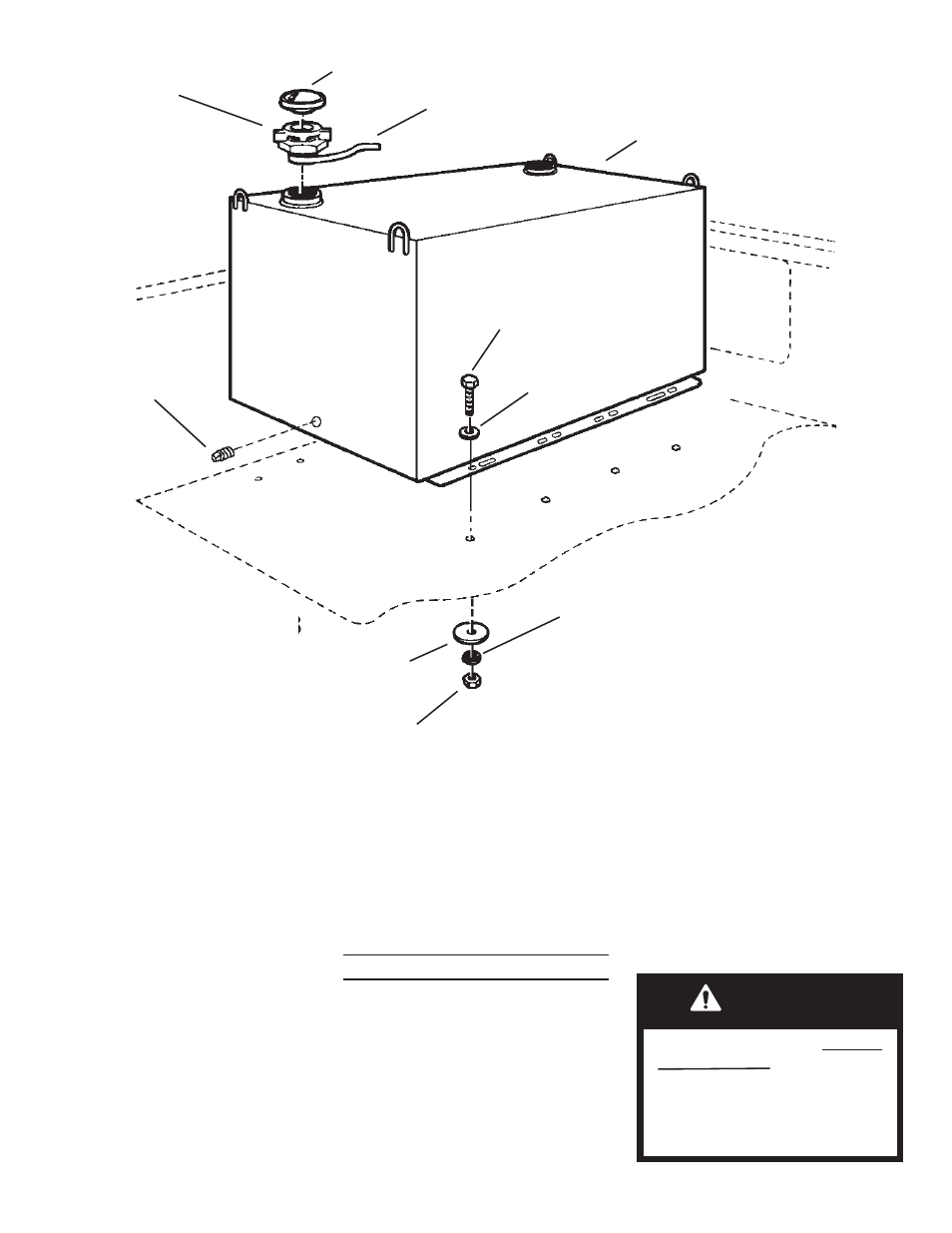

Vented Fuel Cap
Model 355
Filler Cap Neck
p/n 21-0552
Tank
Flat Washer
(8 places)
Pipe Tape
(local purchase)
Install 1/4" Drain
Plug with Pipe
Tape
3/8" Body Washer
(8 places)
3/8"-16 x 1-1/2" Bolt
(8 places)
Lock Washer
(8 places)
3/8"-16 Hex Nut
(8 places)
ASSEMBLY AND
INSTALLATION
INSTRUCTIONS
2
NOTE: To prevent rust from occur-
ring, touch-up any drilled holes.
1. Install drain plug into drain hole.
2. When installing model 352 Transfer
Tank with a 27" tool box in a full size
short bed pickup, the Tank will need to
be mounted with filler openings toward
center of the bed to avoid tool box hit-
ting wheel wells. Except full size short
wheel base Dodge pickup, where a
27" wide box will not fit.
PARTS LIST
• Transfer Tank
• Filler Cap Neck
• Filler Cap
• Bolt Kit
TOOLS REQUIRED
• Electric Drill with 7/16" Drill Bit
• 9/16" Open or Box End Wrench (2)
• Pipe Wrench
• Pipe Tape
BOLT KIT
Bolt kit #32-0350 is provided with your
tank. Check this bolt kit to be sure the
following items are included:
Qty. Description
8 3/8-16 x 1-1/2" Hex Bolt
8 3/8-16 Hex Nut
8 3/8" Flat Washer
8 3/8" Lock Washer
8 3/8" Body Washer
1 1/4" Drain Plug
6 Floor Spacer
CAUTION
Transfer Tank bottom must be
fully supported by the floor of
the truck bed so as not to
cause flexing of the tank which
could cause stress cracks and
leakage of the tank.
MODEL 358-3-01
