Note: Warner Electric Tension brakes are not
polarity sensitive, so wiring between terminals on
the MCS2000-DRV2 and brake are not sensitive to
the + and - designations. The following 24 volt tension brakes can be used
with the MCS2000-DRV2 Driver for 48 volt operation
with overcurrent feature.
ATT Series
ATTB/ATTC-25
ATTB/ATTC-55
ATTB/ATTC-115
MTB Series
All MTB’s up to
12 magnets
*Up to 16 magnets
if outputs paralleled
and inputs
paralleled
Magnetic Particle
MPB/MPC2
MPB/MPC15
MPB/MPC70
MPB/MPC120
MPB240
POB/POC-0.3 TO 20’S
PRB-H’S 1.2 TO 20’S
PTB’S 2.5 TO 20’S
PMC-A’S 10 TO 40’S
PHC-R 0.6 TO 40’S
*POB/POC-40 & 80
if output and
inputs paralleled
Warner Electric • 800-825-9050 P-2010-6 • 819-0524
Brake
Brake
“A”
“B”
48 Volt
Power
Supply
- DC
+DC
MSC2000-DRV2
“A” Antiresidual
Channel A
“B” Antiresidual
Channel B
1. In A 0-10V
2. 0V
3. In B 0-10V
4. 0V
5. Brk A+
6. Brk A-
7. Brk B+
8. Brk B-
9. -DC Power
10. + 24 - 48 VDC

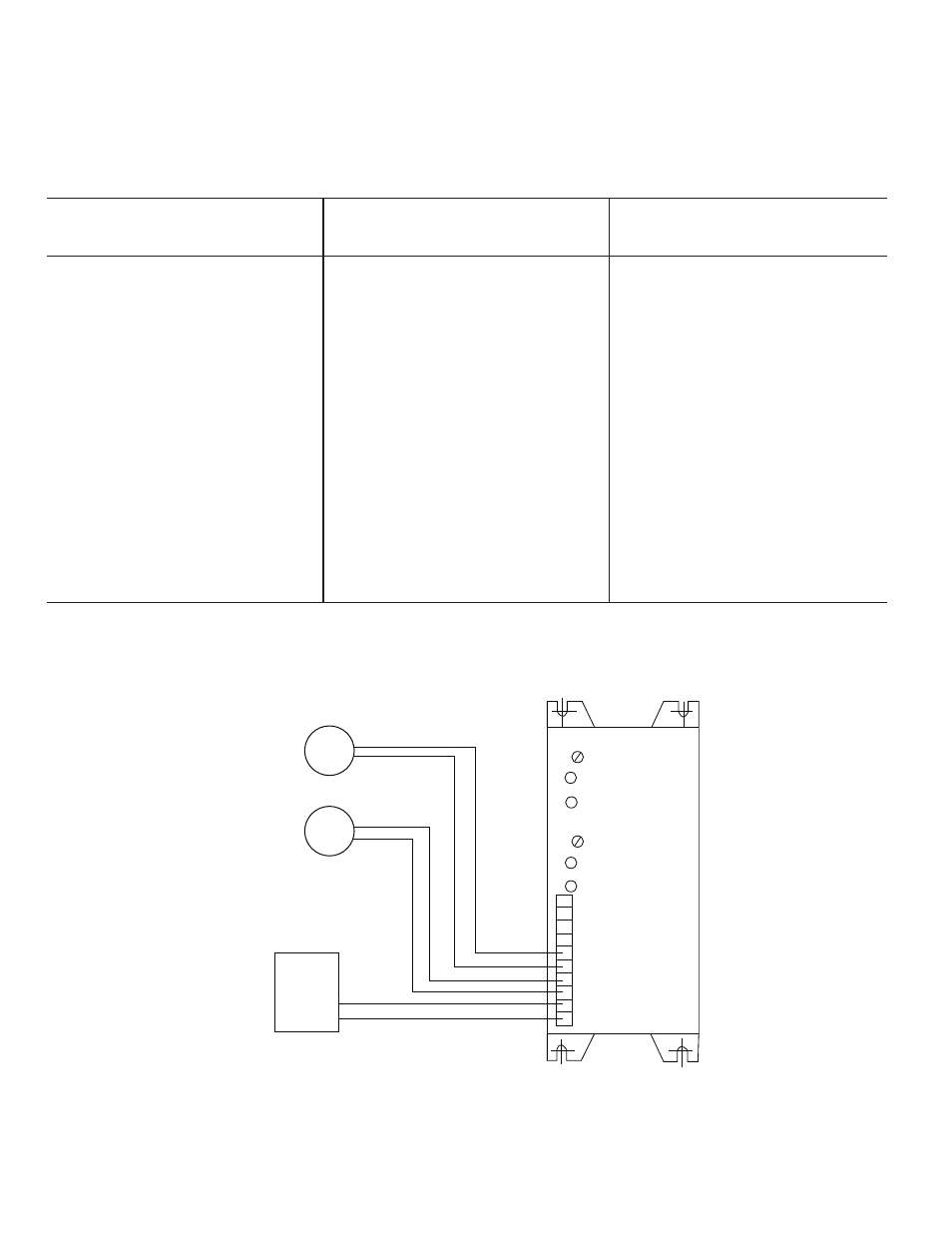

48 Volt DC Power supply MCS2000-DRV2 Driver
Figure 5
* When 16 magnet MTB Brakes and POB/POC-40 and 80 Magnetic Particle Brakes are used, inputs and
outputs must be wired parallel to obtain sufficient out put current for proper brake operation.
48 Volt System Power Supply and Brake Wiring
