Mechanical Data
UM-50FBC UM-100/180FBC
Static Torque - lb. ft. 16 30
Maximum Speed - rpm 3600 3600
Average Weight-lbs.
1020 15.6 18.7
2030 18.4 21.7
Inertia - WR - lb.ft. 2
Configuration 50 100/180
1020 input .021 .047
1020 output .0195 .050
2030 input .021 .048
2030 output .0195 .050
Enclosed UniModule Option

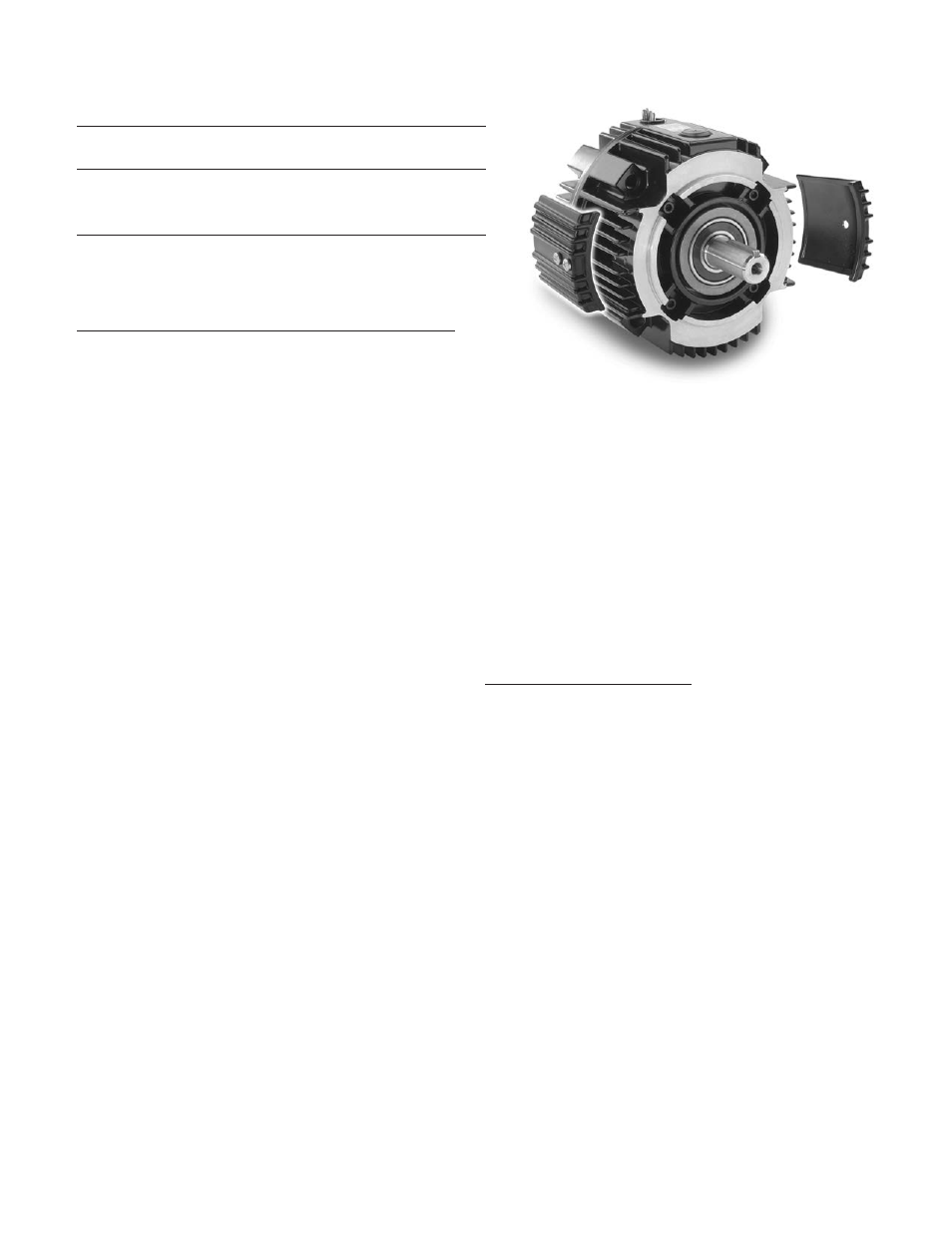

If an Enclosed UniModule is required, an
optional Cover Kit, Warner Electric part
number 5370-101-076, can be purchased
separately to enclose the open vents in the
housing.
Each Cover Kit includes two (2) vent covers
and four (4) screws needed to convert a
vented UniModule to an enclosed design
(non-washdown) as shown in Figure 10.
Figure 10
Note: When using this Cover Kit to enclose
the module the vent covers should be
assembled as the final step.
Notes:
Visit Warner Electric’s website at
www.warnerelectric.com for dimensional
drawings, weights, inertias, and a complete
offering of our products including clutches,
brakes and clutch/brake controls and
service parts.
In addition, Warner Electric module
products, controls, and service parts
information can be found in our catalog
P-1234-WE. Call 815-389-3771 to request any
of our catalogs.
