31 Warner Electric • 800-825-9050 P-208 • 819-0367
1
4
3
2
10
8
7
5
9
5-1
7
6
How to Order:
1. MB-1225 Adapts to NEMA C Face, Double
Shaft Motors, Frame Sizes 284, 284 UC, 324
UC, 326 UC, 364 UC and 365 UC.
2. Specify Bore Size for Item 2. (Frame size
determines bore.)
Example:
MB-1225 Motor Brake per I-25614 - 90 Volt,
1-5/8" Bore
These units meet the standards of UL508 and
are listed under guide card #NMTR2, file #59164.
Item Description Part Number Qty.
1 Cover 5353-288-001 1
2 Bushing* 1
1/2" to 2-1/2" Bore 180-0185 to 180-0217
3 Armature Hub 540-0014 1
4 Armature 5303-111-009 1
5 Magnet - 90 Volt 5353-631-001 1
5-1 Terminal Accessory 5311-101-001 1
6 Adapter 5353-105-002 1
7 Mounting Accessory 5351-101-003 1
8 Drive Pin and Retainer 5301-101-001 4
9 Mounting Accessory 5321-101-002 2
10 Spring Accessory 5303-101-006 4
*See page 32 for specific part numbers.

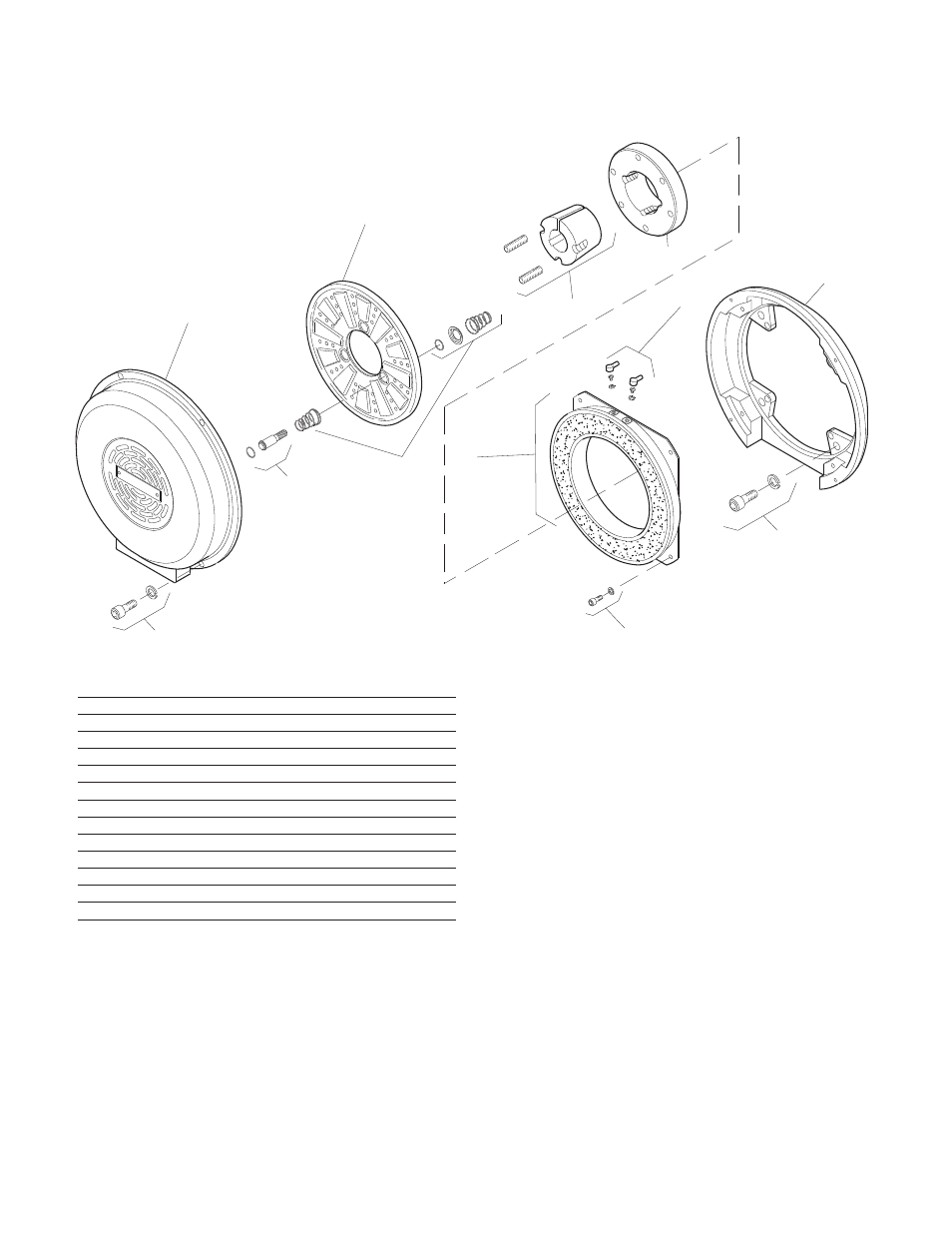

MB-1225 Motor Brake–Normal Duty Flange Mounted Drawing I-25614
