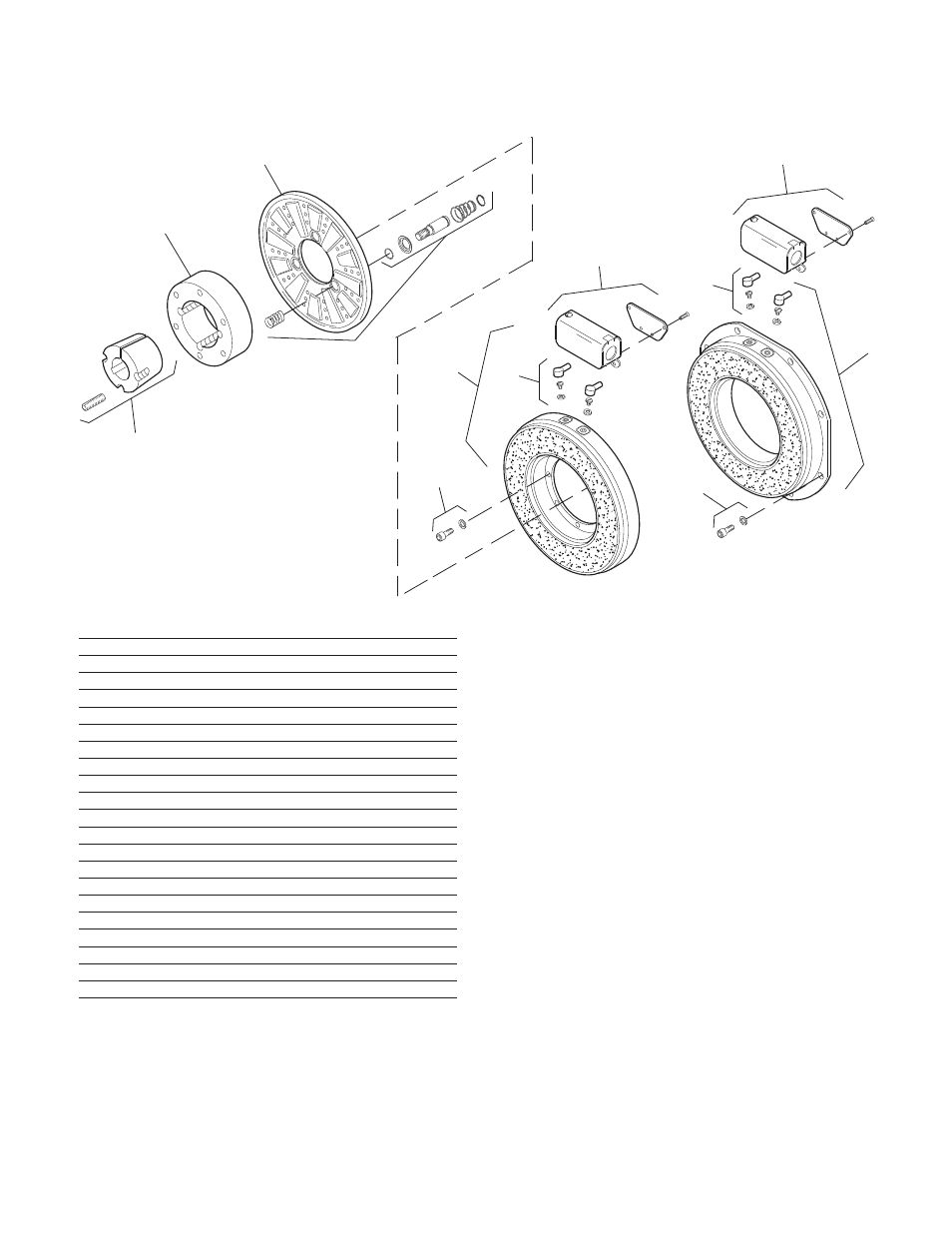

PB-825 Brake –Normal Duty Drawing I-25566
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Inside Mounted for Items 5A and 6A or
Outside Mounted for Items 5B and 6B.
3. Specify Voltage for Item 6A or 6B.
Example:
PB-825 Brake per I-25566 -
90 Volt, Inside Mounted, 1" Bore
These units, when used in conjunction with the
correct Warner Electric conduit box, meet the
standards of UL508 and are listed under guide
card #NMTR, file #59164.
2
1
3
4
7
6B-1
6B
7
6A-1 6A
5A
5B
Item Description Part Number Qty.
1 Bushing 1
1/2" to 1-5/8" Bore 180-0131 to 180-0149
2 Armature Hub 540-0394 1
3 Armature 5301-111-018 1
4 Autogap Accessory 5201-101-008 3
5A Mounting Accessory - I.M. 5321-101-001 1
5B Mounting Accessory - O.M. 5321-101-002 1
6A Magnet - Inside Mounted 1
6 Volt 5311-631-002
24 Volt 5311-631-003
90 Volt 5311-631-004
†90 Volt LK Facing 5311-631-011
6A-1 Terminal Accessory 5311-101-001 1
6B Magnet, Outside Mounted 1
6 Volt 5311-631-007
24 Volt 5311-631-009
90 Volt 5311-631-008
†90 Volt LK Facing 5311-631-012
6B-1 Terminal Accessory 5311-101-001 1
7 Conduit Box 5200-101-011 1
*See page 32 for specific part numbers. †Optional LK facing
available.
