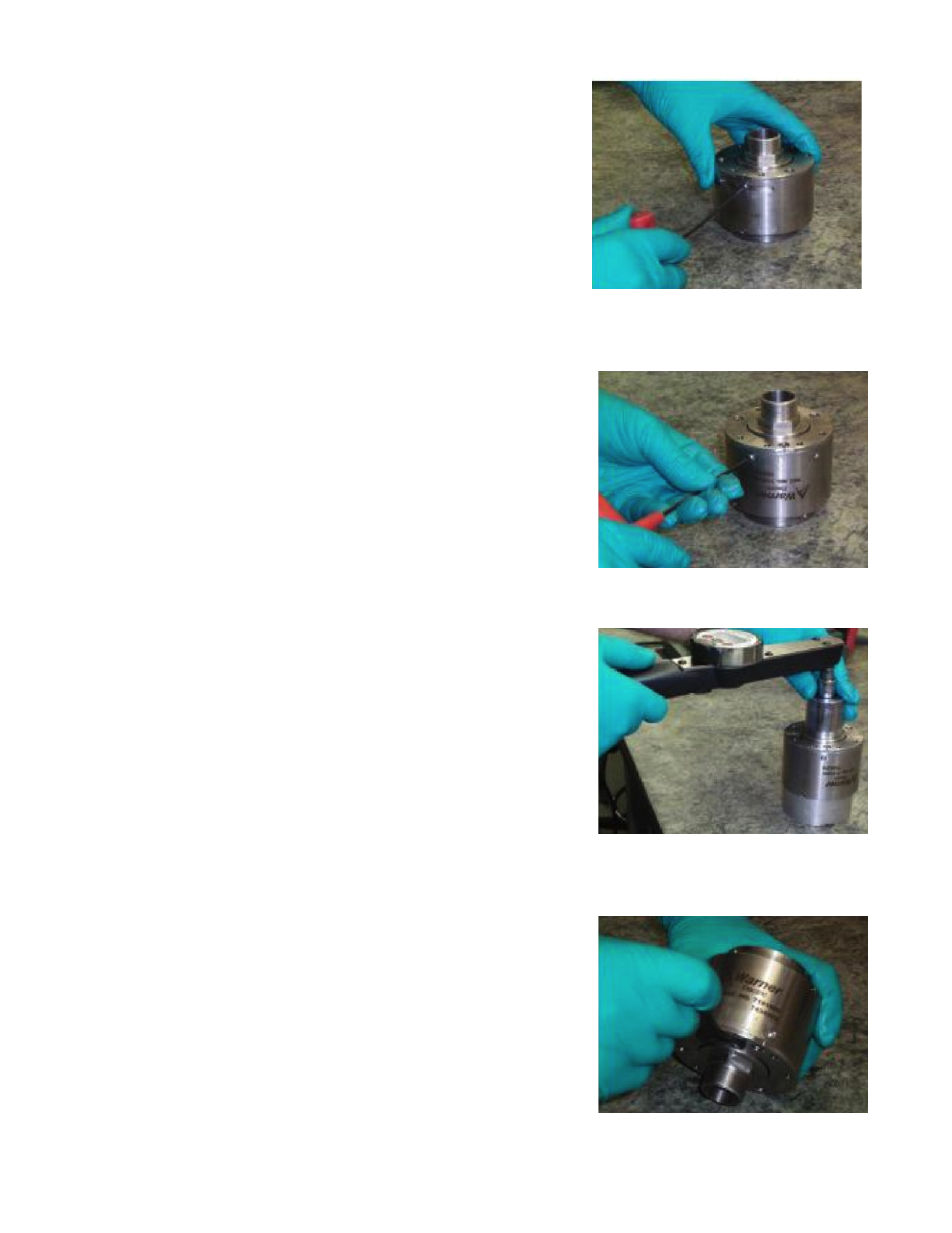

Figure 19
Reinstall set screw on the side of the clutch.
Reinstall two larger set screws. Tighten set screws
to 8-10 lb-in. Over tightening is not necessary
and will strip the screws or possibly damage the
housing body.
Set clutch to 5 and using a digital torque wrench
and a socket check to make sure the torque is
smooth and reaching the specified maximum
torque. If torque is not smooth or is very high,
disassemble clutch to look for mechanical rubbing
or parts assembled incorrectly. Check the epoxy
over the magnet screws for signs of rubbing,
carefully trim the epoxy down to specification.
Set torque to desired setting using a face spanner
wrench (YTL2-0002) and tighten set screws.
Figure 16
Figure 17
Figure 18
