Warner Electric Dairy Capping Headsets - Manual (Page 3)

Warner Electric • 800-825-9050 P-2096-WE 3

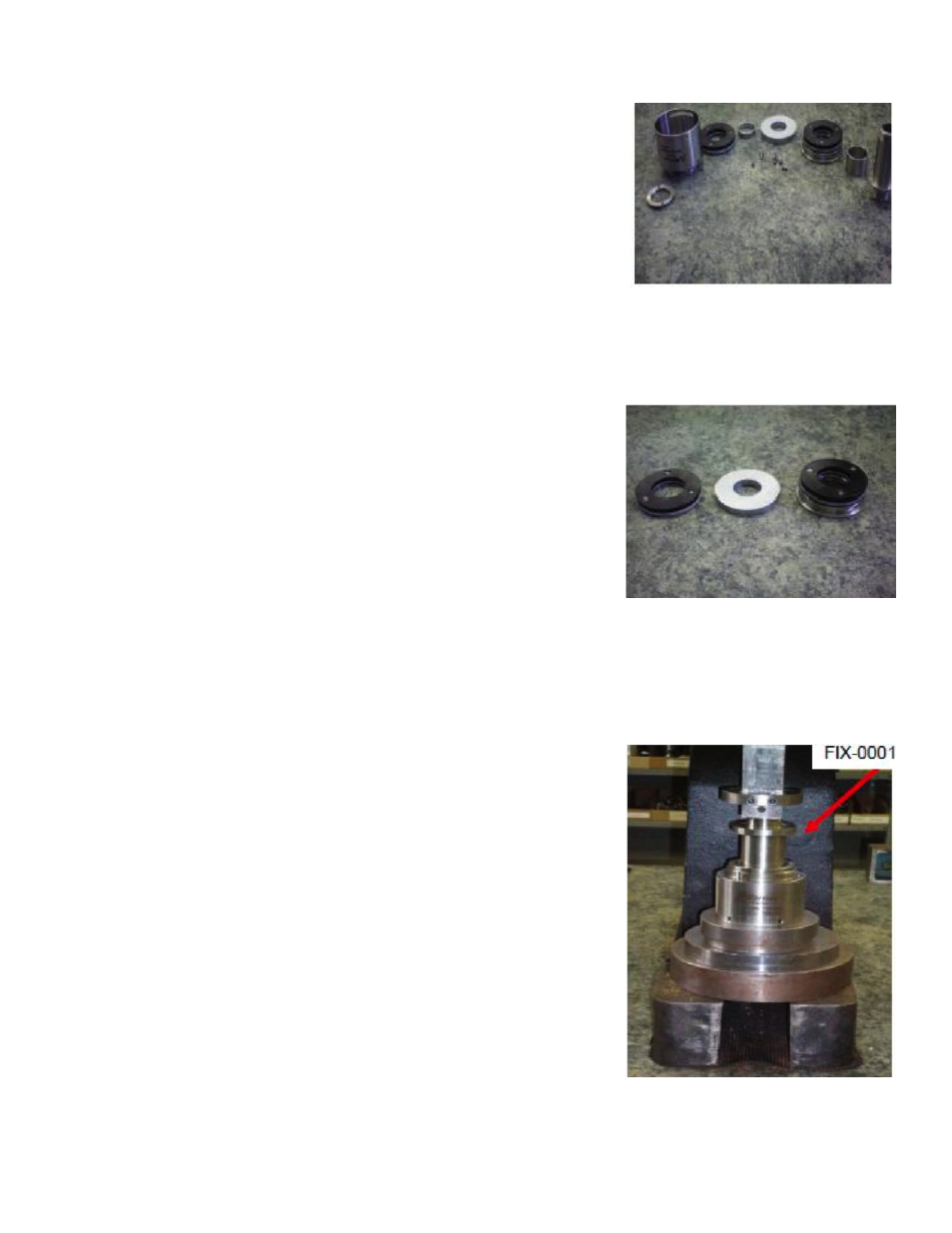

Separate shaft, housing, spacer, magnet stack,
and nut.
Separate magnet stack and clean all magnets
– replace as required. Use an alcohol based
cleaning solvent to clean the black driver magnets.
Do not use anything abrasive when wiping the
black driver magnets. Use Scotch Brite deburr
wheel to polish the hysteresis magnets.
Press out old bearing using FIX-0001 and an arbor
press.
Figure 6
Figure 7
Figure 5
