4 Warner Electric • 800-825-9050 P-2096-WE
Figure 11

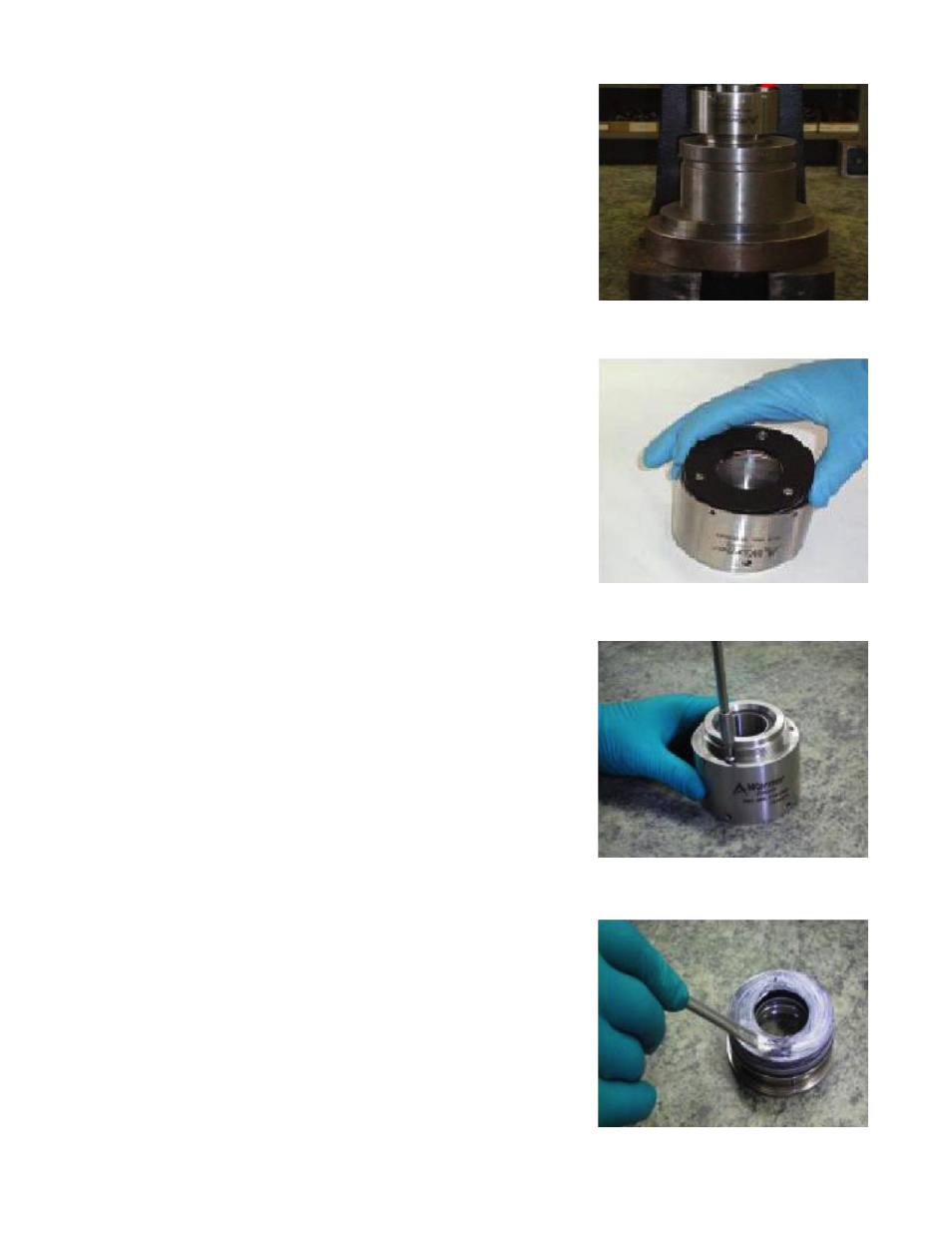

Turn housing over. Press new bearing in housing
using FIX-0001 and an arbor press.
Install magnet plate into housing. Line up any three
holes and insert screws.
Tighten the three button head Torx screws with a
3mm (T-15) Torx wrench (YTL1-0002).
Apply food grade grease to stack of black magnets.
Figure 8
Figure 9
Figure 10
