Warner Electric • 800-825-9050 P-2096-WE 5
Figure 15

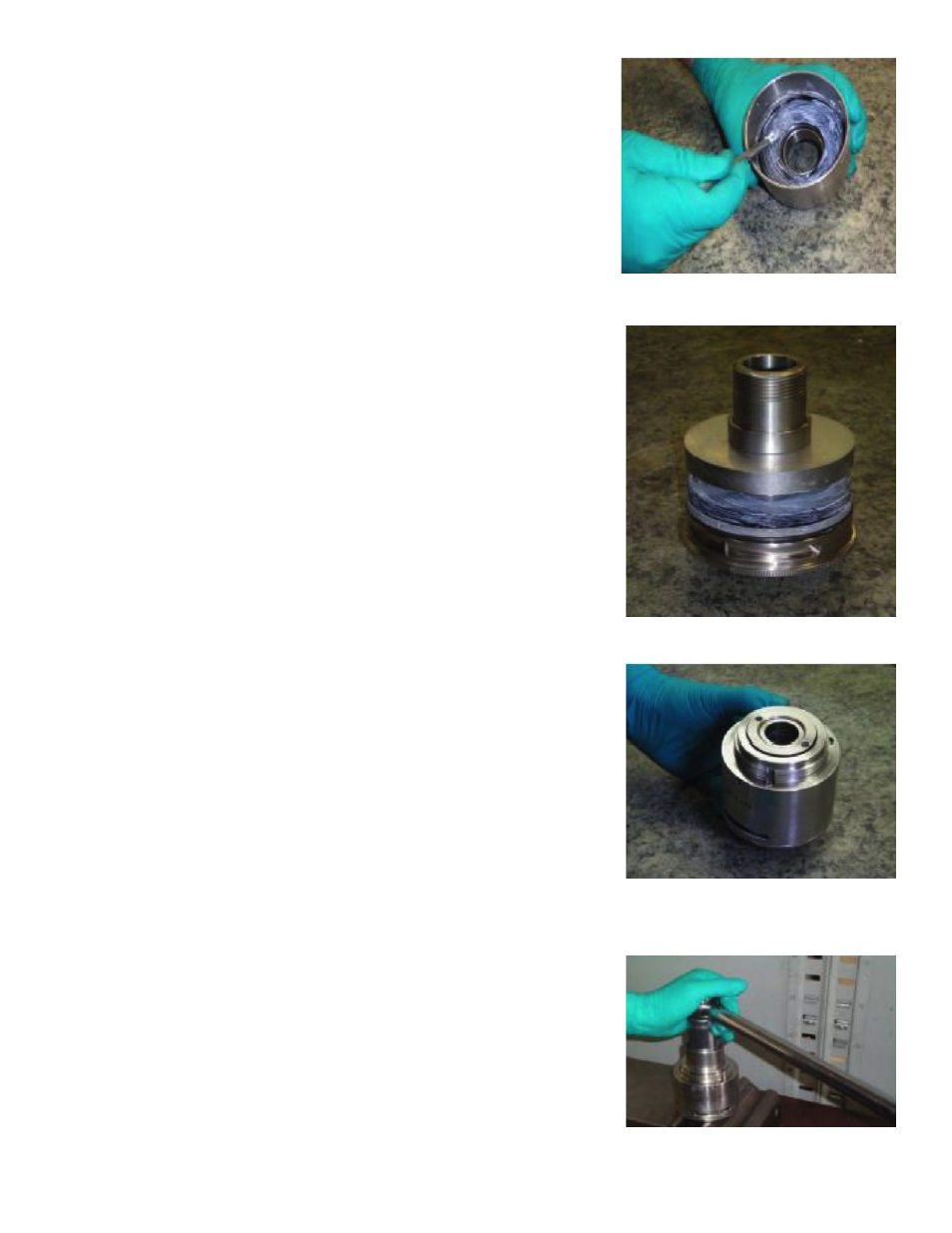

Apply food grade grease to black magnet inside
of housing.
Stack remaining parts, except housing,
according to engineer drawing.
Place housing down around parts that were
stacked in previous step. Install clamp nut on
shaft thread.
Place clutch back into vice and, using a FIX-
0004 to hold the clutch in place, tighten clamp
nut to 508.4 Ncm (45 ft-lbs).
Figure 12
Figure 13
Figure 14
