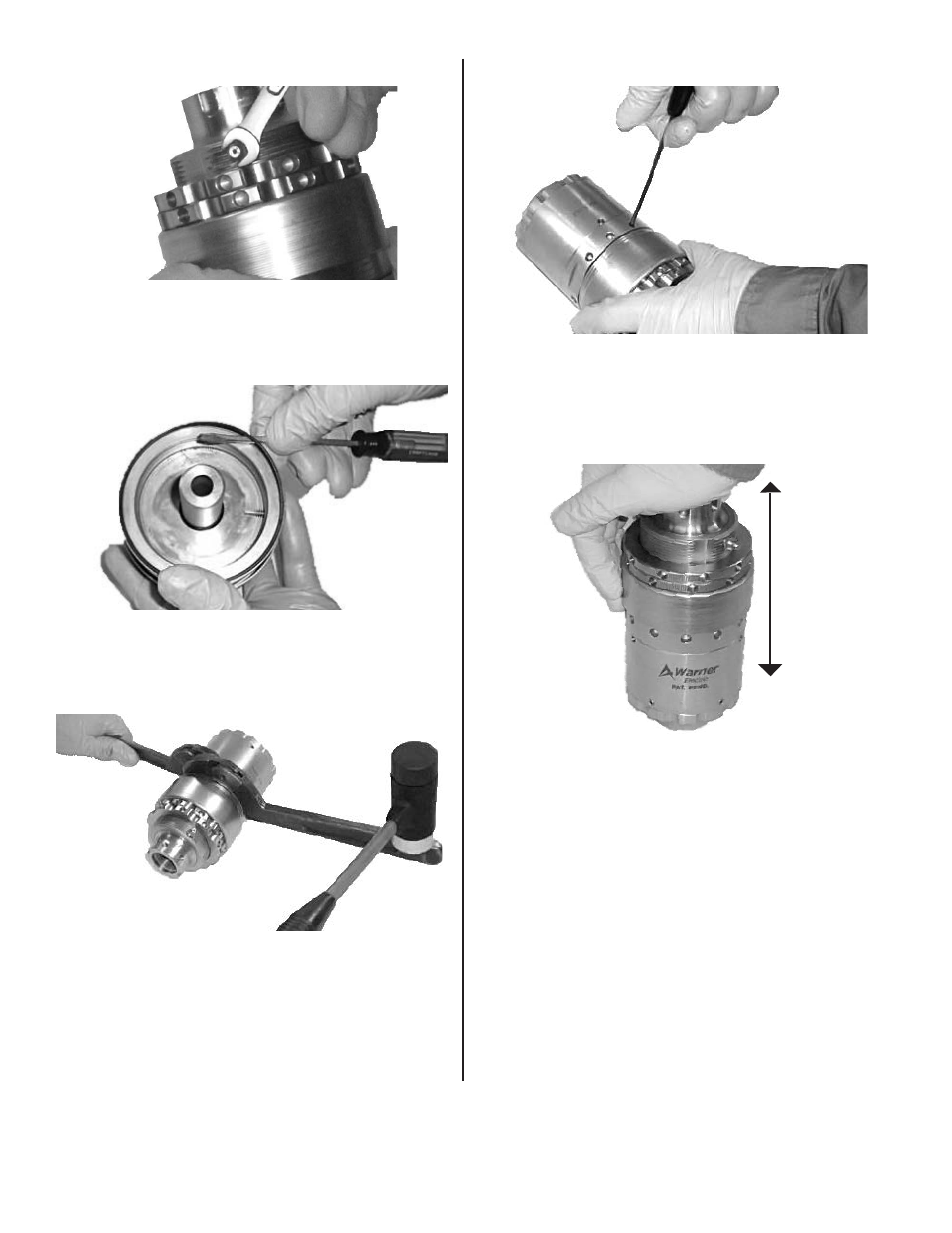

Install grease zerk using open-end wrench. See
Figure 65.
Figure 66
Install new o-ring on adapter base. See Figure 66.
Figure 67
Install top load assembly on to clutch and tighten
using spanner wrenches (YTL3-0009 & YTL3-0008).
See Figure 67.
Figure 68
Tighten set screw with 1/8” 3mm hex wrench.
Tighten set screws to 8-10 lb-in. Over tightening is
not necessary and will strip the screws or possibly
damage the housing body. See Figure 68.
Figure 69
Compress top load assembly to ensure that it
moves freely. See Figure 69.
Figure 70
