10 Warner Electric • 800-825-9050 P-2019 • ARC

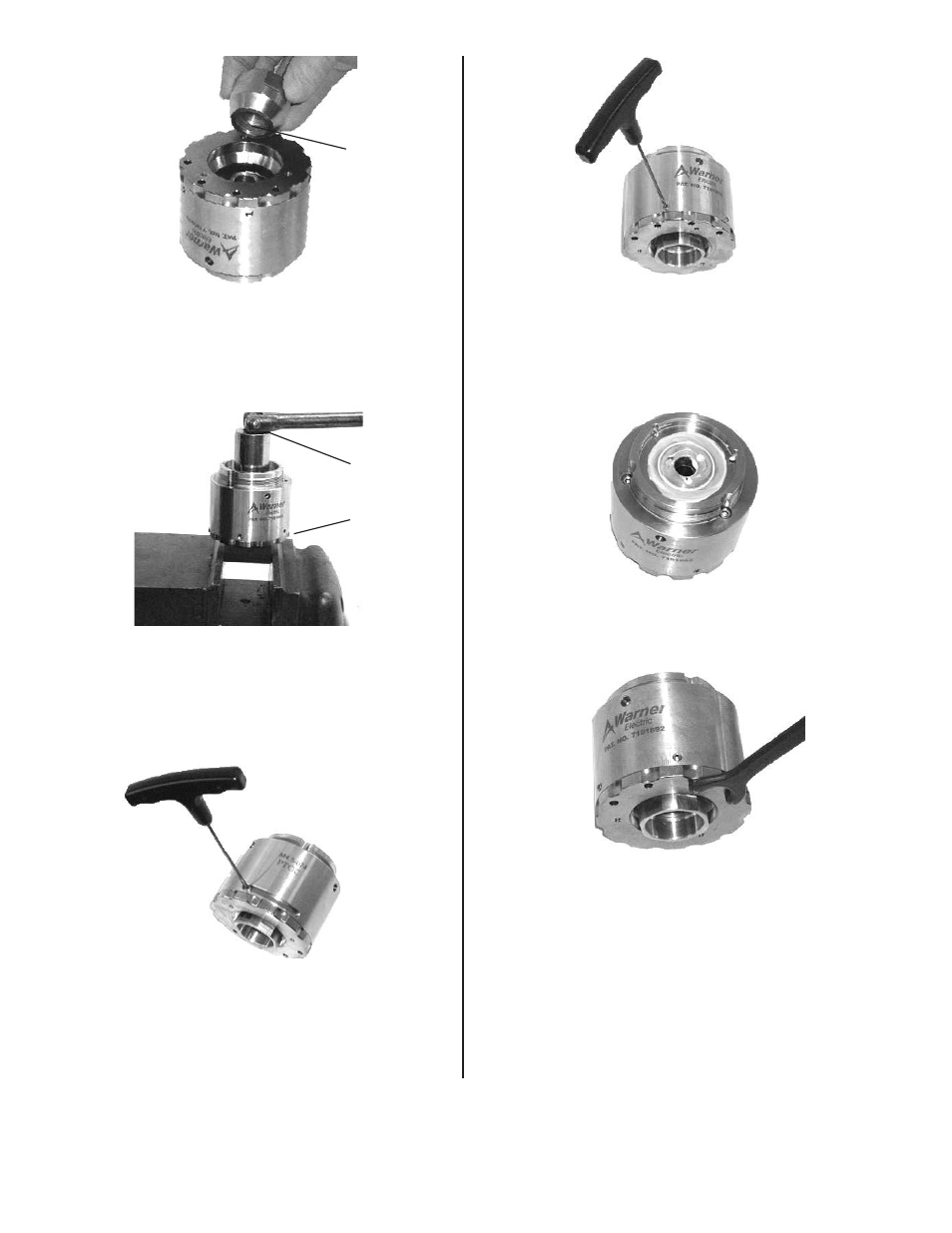

Apply a small amount of blue loctite (242
threadlocker) on the inner thread of the nut; screw
into place. See Figure 44.
Figure 44
Apply Blue
Loctite
Using FIX-0003 and FIX-0005 to hold the clutch in
place, torque to 45 ft-lbs. (508Ncm). See Figure 45.
Figure 45
FIX-0005
FIX-0003
Install .472” (12mm) long set screw. See Figure 46.
Figure 46
Install two ¼” (M6) set screws. Tighten set screws
to 8-10 lb-in. Over tightening is not necessary
and will strip the screws or possibly damage the
housing body. See Figure 47.
Figure 47
Apply grease to top of seal. See Figure 48.
Figure 48
Torque test the unit before re-installing upper
assembly and installing headset on machine. Using
1” face spanner wrench (YTL2-0002) to set the
torque at setting 5. See Figure 49.
Figure 49
