12 Warner Electric • 800-825-9050 P-2019 • ARC

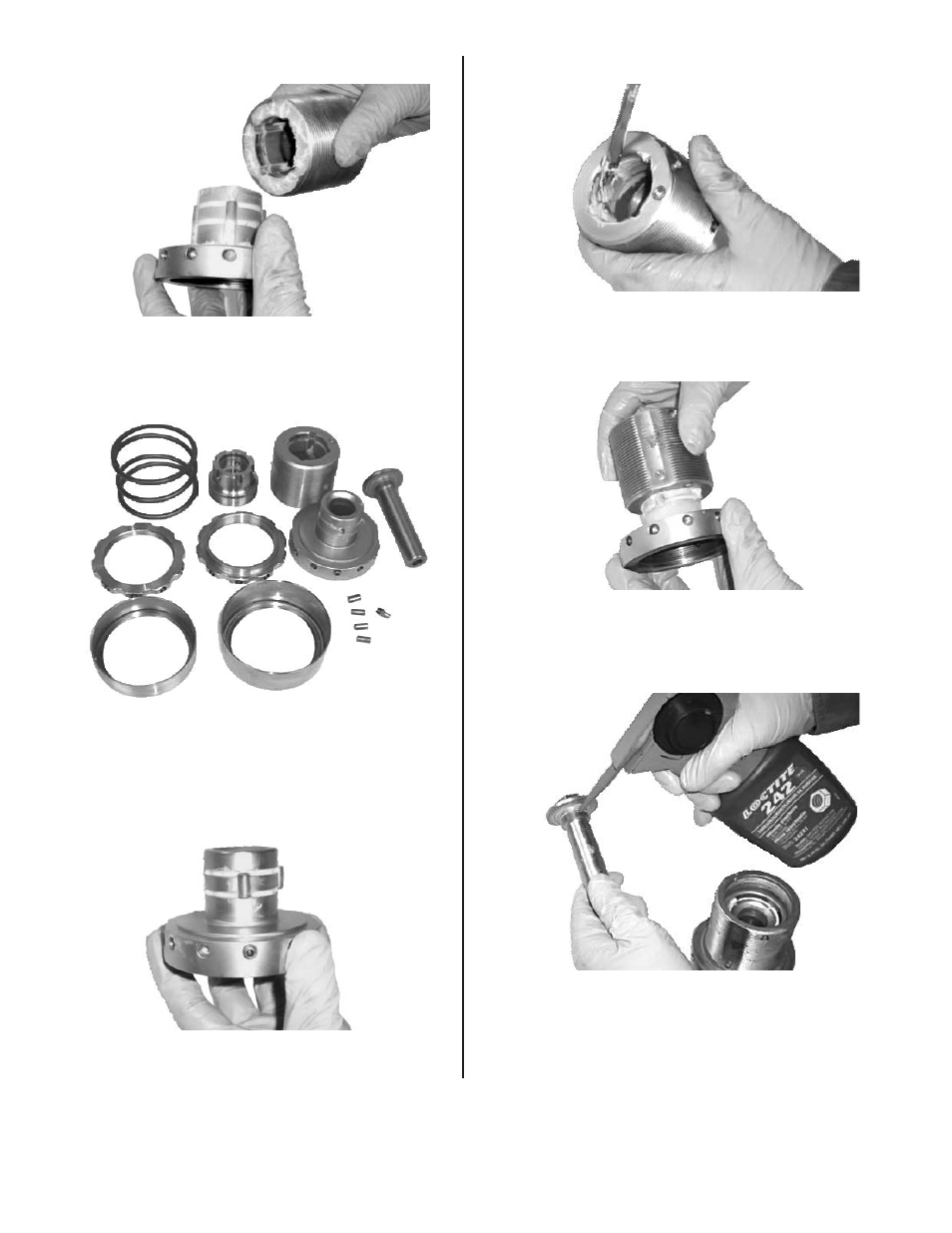

Remove shaft and inspect both parts for wear,
replace as required. See Figure 53.
Figure 54
Clean all parts. Replace as required. See Figure 54.
Figure 55
Install new pins; apply grease to shaft and pins. See
Figure 55.
Figure 56
Apply grease to bore where pins slide. See Figure
56.
Figure 57
Install shaft in top load assembly. Make sure all four
pins stay engaged during insertion. See Figure 5.
Figure 58
Apply blue loctite on threads of nut; insert into top
load and hand tighten. See Figure 58.
Figure 59
