Power Analysis Software
Performance Ripple Test
This test supports the measurement and anlysis of a power supply's output characteristics. Meas-
urements include the peak to peak ripple, the maximum and minumum values of ripple, and the spectral
content of ripple are provided.
Ripple Test Setup

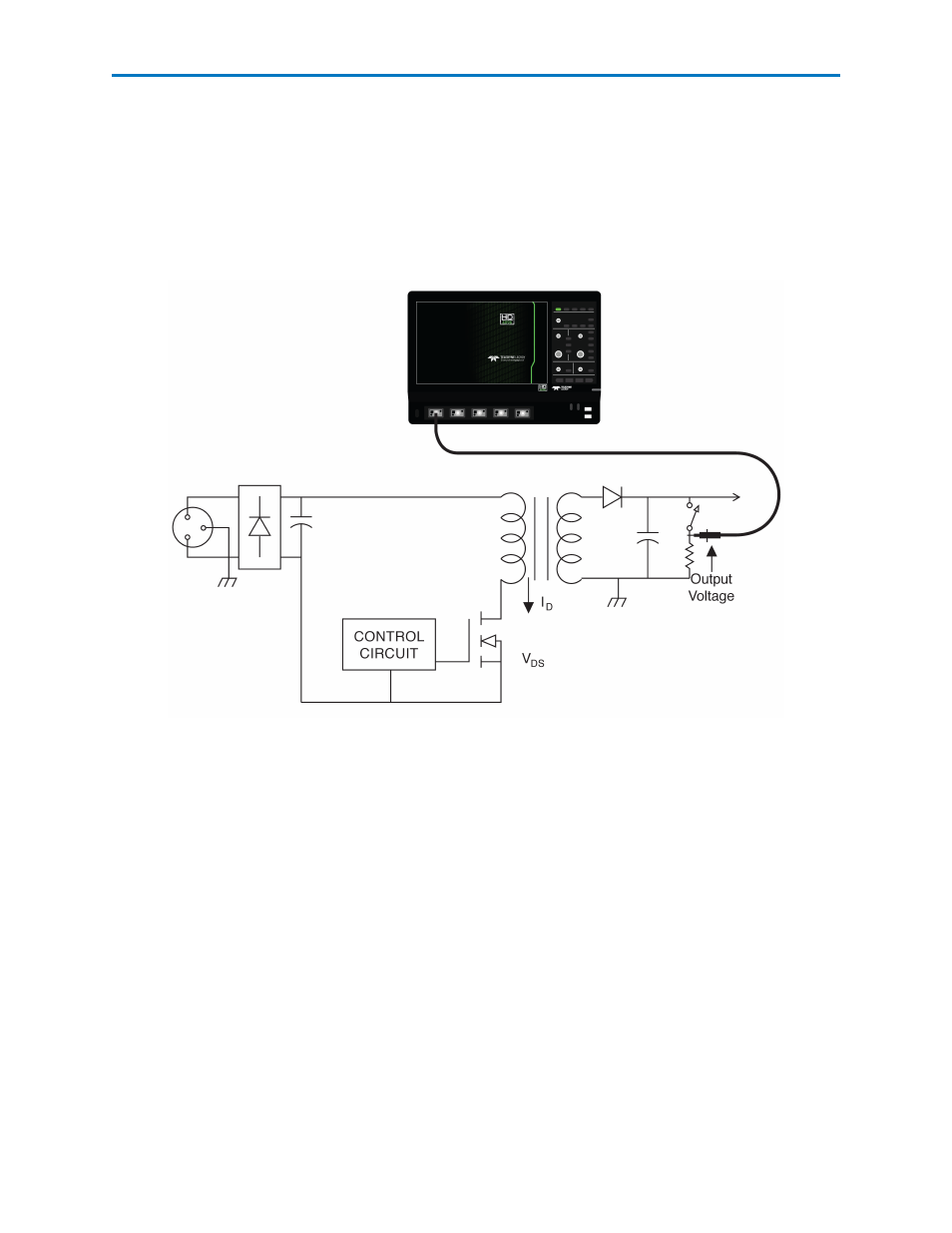

Sources for this section can be voltage or current. Confirm the correct input source has been selected in
the main Power Analyzer menu. Connect the probe to the output of the power supply.
Ripple Test Procedure
1. From the menu bar, choose Analysis > Power Analysis to open the Power Analysis dialog.
2. Check Enable.
3. Choose Performance Analysis and Efficiency Test.
4. Select the input Voltage source channel.
30
921326 Rev B
