Operator's Manual

Line Power Test

This test analyzes the line current, voltage, power, and power factor of the device under test.

1.

Set up the source channels

.

2. On the Power Analysis tab choose Line Power Analysis, and Power Test

3. Optionally, select to display Reactive Power, Phase Angle and/or Crest Factor measurements.

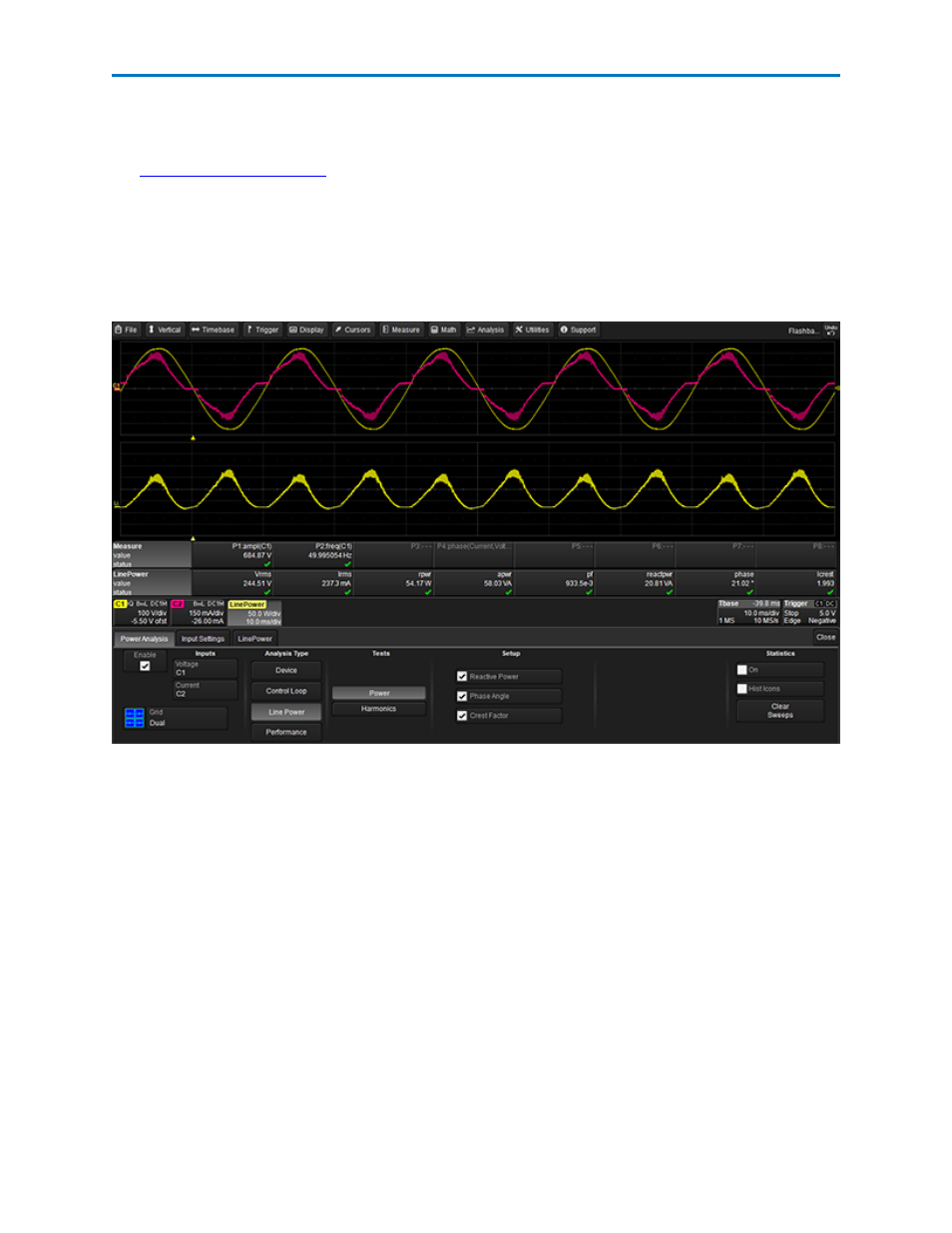

The display shows the line voltage and current waveform, as well as the power and energy waveforms.
Parameters displayed are rms voltage, rms current, real power, apparent power (apwr) power factor (pf)
and, if selected, reactive power (reactpwr), phase angle (phase), and crest factor (Icrest).
