UWBSpekChek™ WiMedia Platform Compliance
Test Guide
rev3.10
2
Page 8 of 33

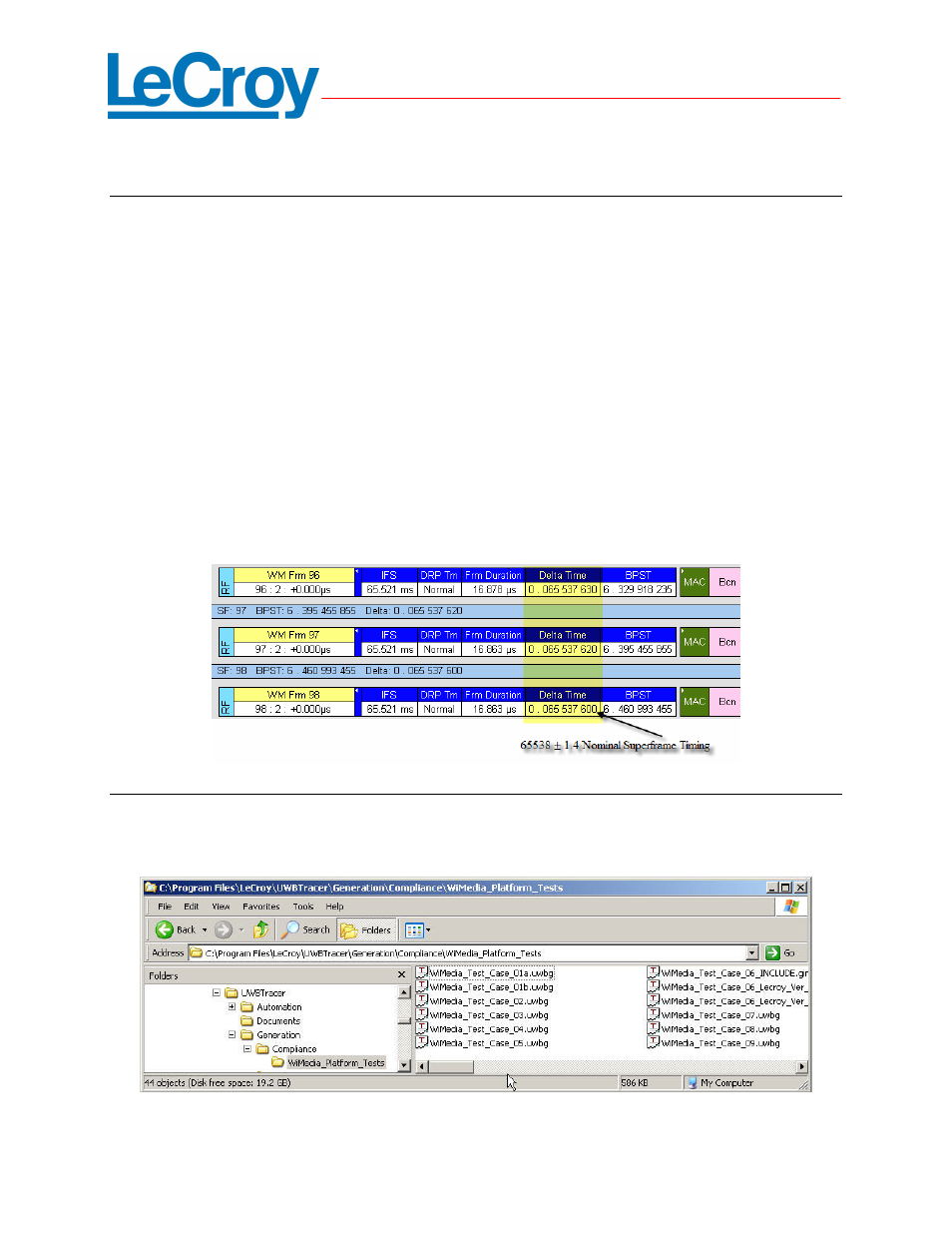

Test system calibration
This calibration procedure is run for the TX only test system before all other test cases
are started. The calibrated beacon interval of 65538 ± 1.4 microseconds is used in all
test cases unless otherwise specified.
1.
Start analyzer capture.
2.
Standard test start-up sequence.
3.
Stop analyzer capture and stop DUT and INTD. Observe nominal beacon
interval.
4.
Start analyzer capture.
5.
Start test system beacon in slot 2 with a beacon interval of 65538
microseconds.
6.
Stop analyzer capture. Check that analyzer interval is 65538 ± 1.4
microseconds. If not – adjust test system settings so the reported analyzer
interval is 65538 microseconds.
