98
Automation API for CATC Bluetooth Analyzers CATC Ver. 1.40

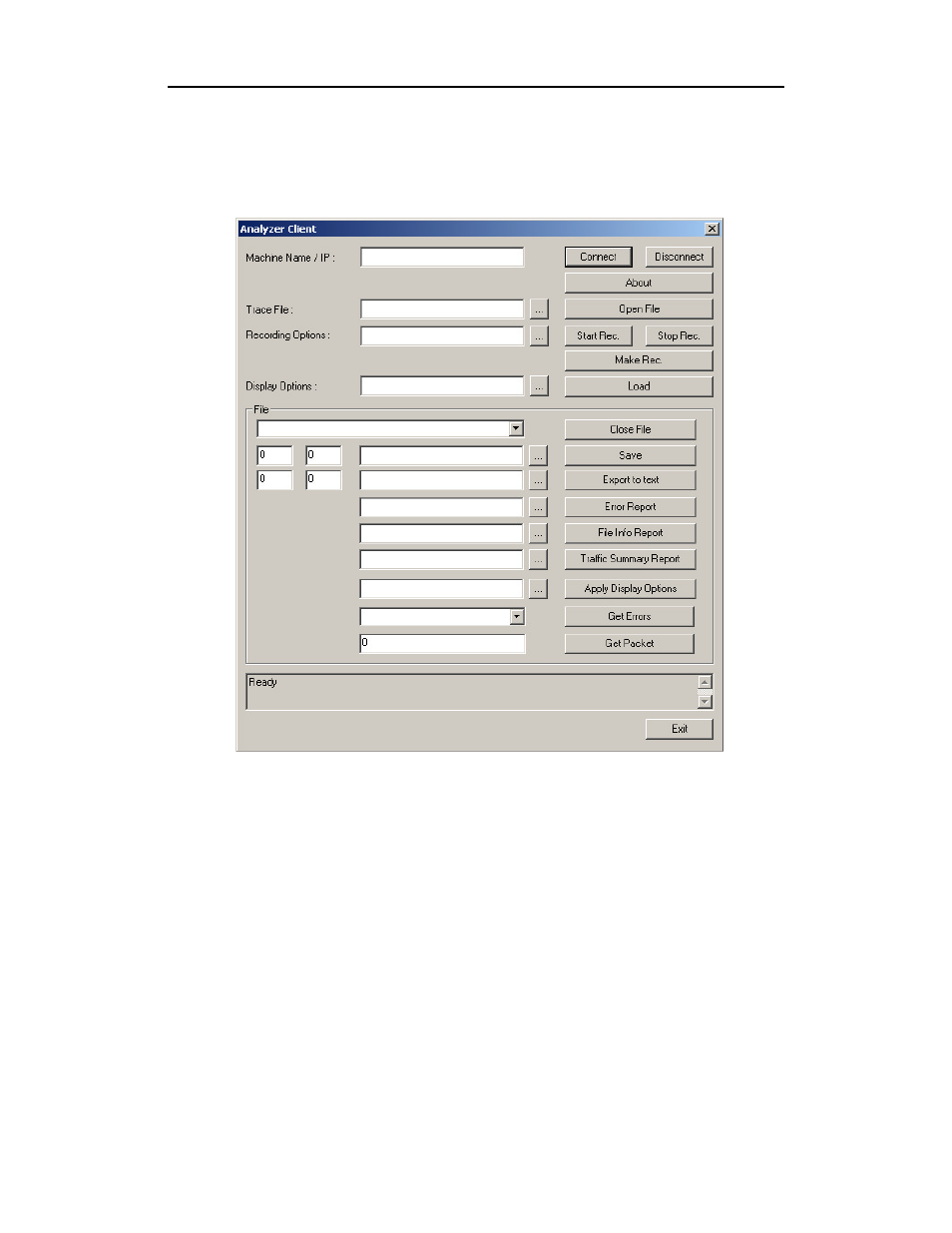

Step 2 Double-click AnalyzerClient.exe.
The application will start. If you prefer, you can copy the executable
to your hard drive and launch it from there.
Step 3 Enter the IP address or Host Name of the Merlin Host Controller.
Step 4 Press Connect.
The status message at the bottom of the window should change from
’Ready’ to a message that reads something like ’Merlin: Version
1.61’. This change indicates that a connection has been established
to the Merlin Host Controller.
When you have completed this step, the Merlin Interface software
will automatically launch on the Host Controller.
If the message "The RPC server is unavailable" appears, check the
network connections between the two PCs. Also try using the IP
address in place of the Host Name (assuming that you had originally
used the Host Name). If the message "Access denied" appears, make
