Operator's Manual

14

TF-DSQ-OM-E RevC

Probe Calibration

Probe Calibration Menu

Accessing the Probe Calibration Menu

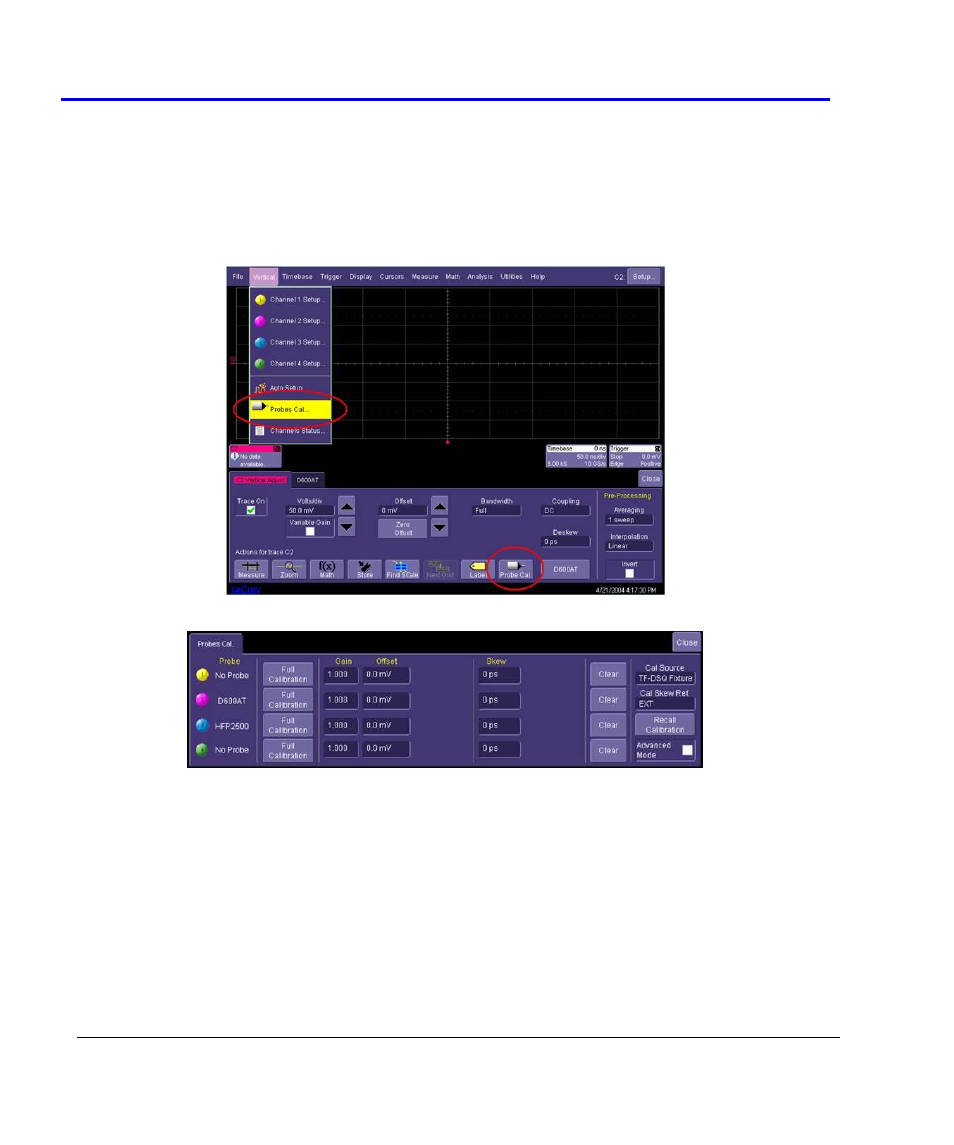

The probe calibration menu can be accessed from the Vertical drop-down menu or from the
Channel (sometimes referred to as Vertical Adjust) dialog:

Probe Calibration Menu Description

Figure 4-5. The Probe Calibration dialog contains information and controls.

The information on the probe calibration dialog is organized so each row represents the
information for a given channel and each column represents the calibration information or
control for that channel. For each channel, the information and controls provided include:

The channel number in the colored button icon and the probe type that is installed

A Full Calibration button, which starts the calibration

DC correction information including both gain and offset correction

The skew correction

A Clear button
