Operator's Manual

TF-DSQ-OM-E RevC

Assembling the TF-DSQ fixture

See the

fixture overview

to identify individual components.

System assembly is accomplished in the following steps:

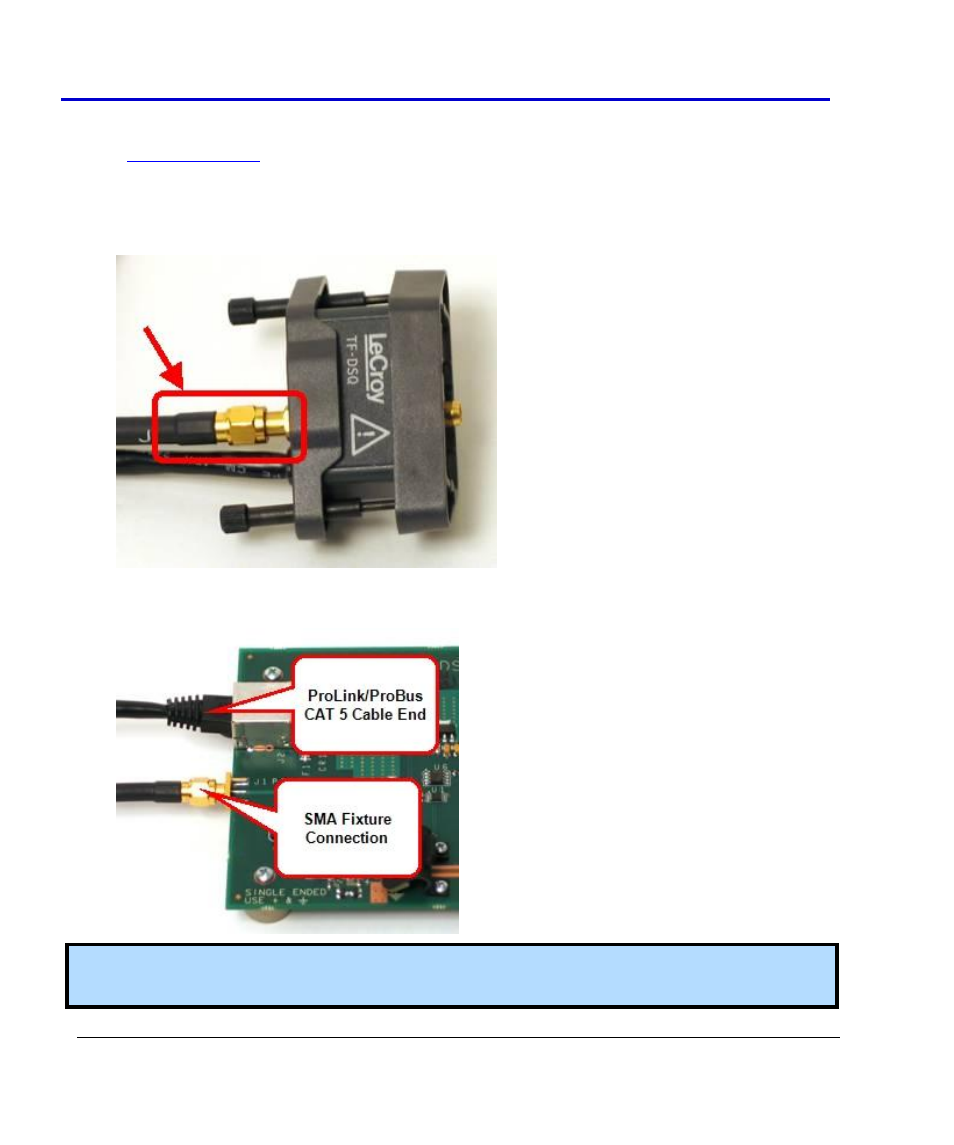

1. Connect one end of the 50 Ω cable to the desired ProLink or ProBus extender (with

adapter).

2. Connect the other end of the 50 Ω cable to the SMA connector on the TF-DSQ fixture.
3. Connect the ProLink or ProBus CAT 5 cable from the extender to the TF-DSQ fixture.

Note: The 50 Ω connection should be torque tightened with an RF torque wrench and must be
properly tightened.
