Common mode voltage selection, Advanced probe calibration, Theory of operation – Teledyne LeCroy TF-DSQ User Manual

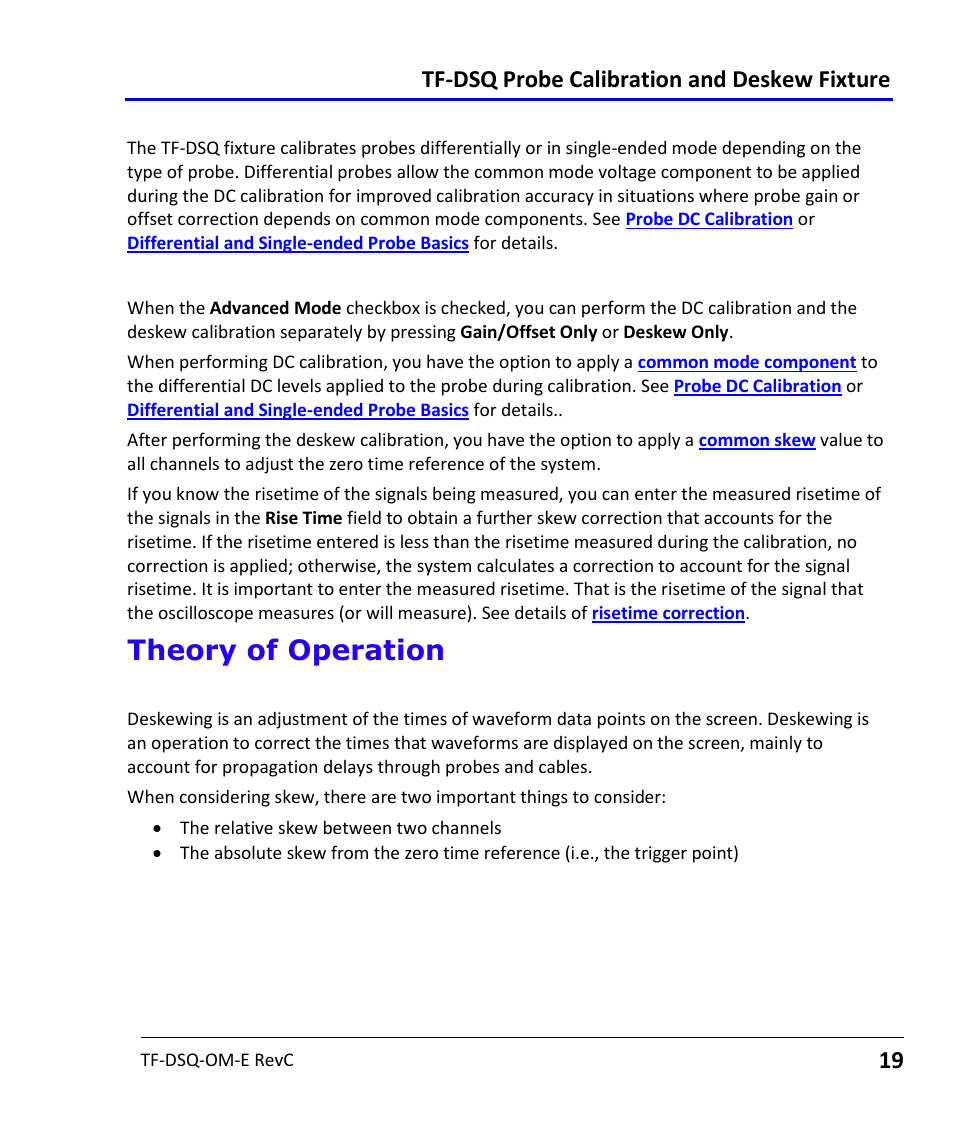

Page 19: Deskew theory of operation, Probe deskew calibration, Deskew calibration, Common mode voltage settings for dc calibration, Tf-dsq probe calibration and deskew fixture
