Waveace 6, Installing the usb driver – Teledyne LeCroy WaveAce EasyScope Operators Manual User Manual
Page 6
WaveAce
6
ES-OM-E-RevA
4.

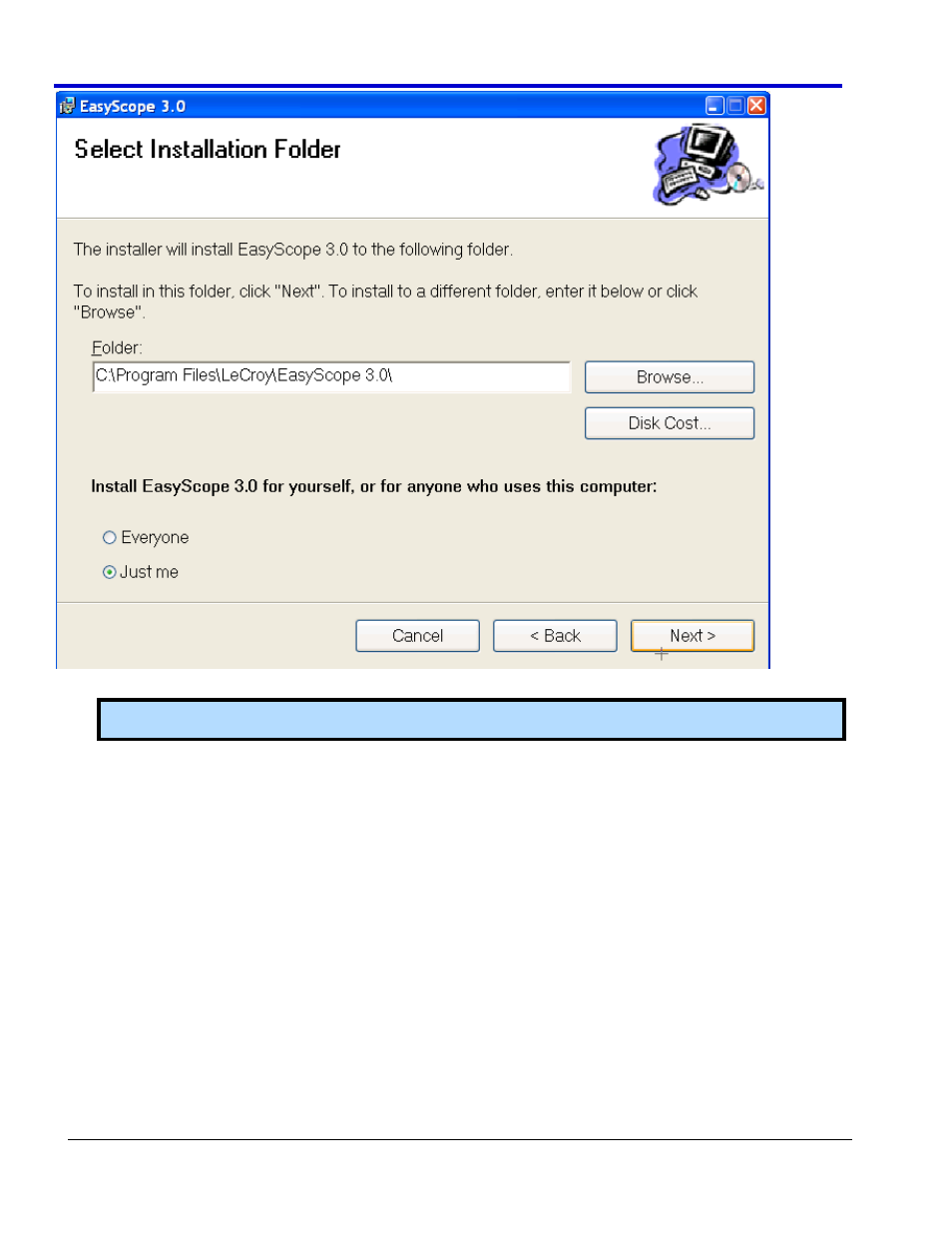

Click Next to use the default installation folder. The Confirm Installation window opens.
Note: If you want to install EasyScope 3.0 to a different folder, click the Browse button and choose a
location.
5.
Click Next to start the installation.
6.
When the installation is complete, a confirmation message is displayed. Click Close to exit the EasyScope
installation.
Installing the USB Driver
If you connect your WaveAce series oscilloscope by the USB interface, you need to install the USB driver. If you
connect your WaveAce series oscilloscope by RS-232 interface, you do not need to install a device driver.
1.
Connect the oscilloscope to your PC using the USB serial cable. Microsoft Windows automatically detects
the oscilloscope and display the Found New Hardware window.
2.
Click the Found New Hardware window. The Found New Hardware Wizard opens.
