EasyScope Operator's Manual
ES-OM-E-RevA
21

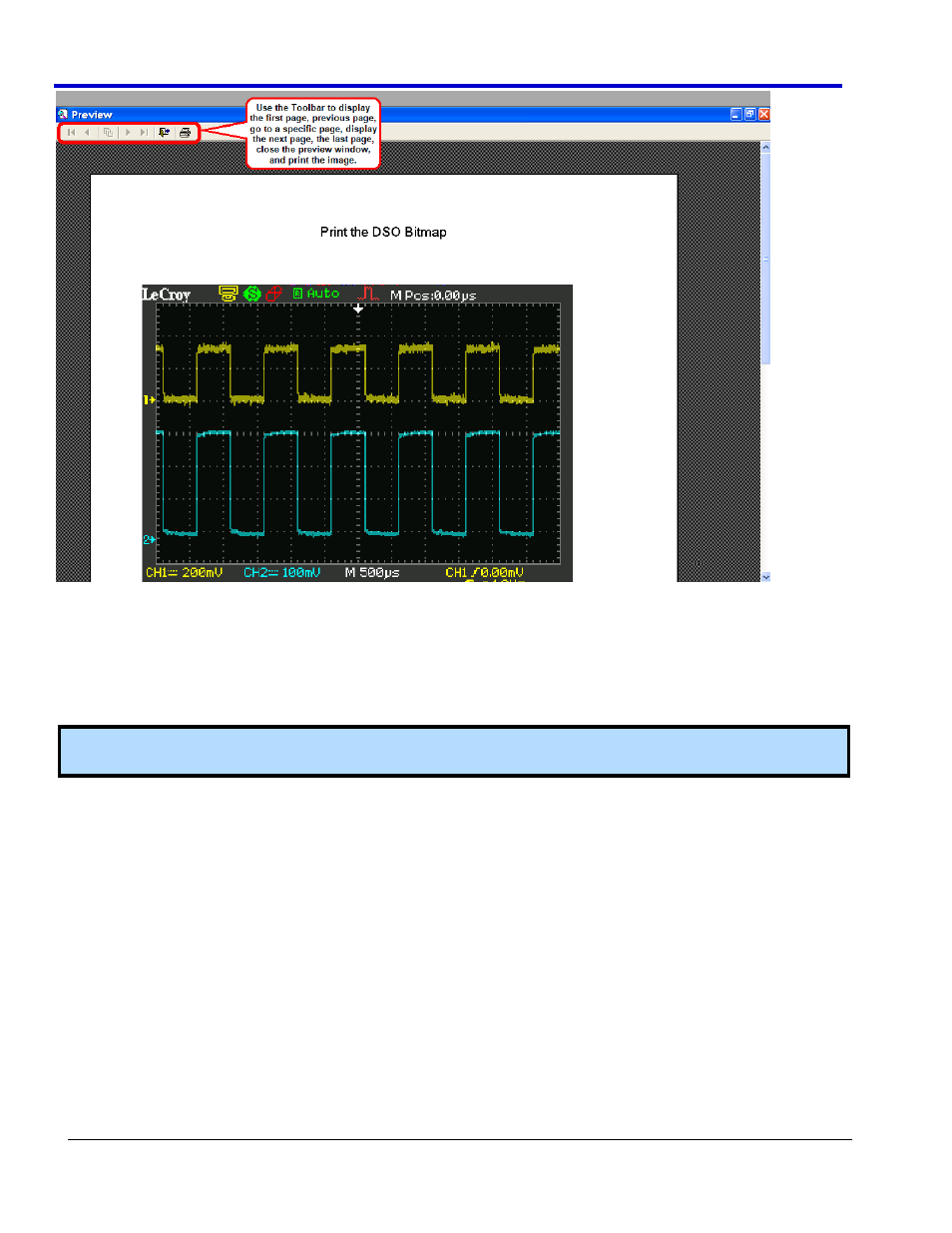

To print the bitmap image, click the Print toolbar button.
Saving Bitmap Images
1.
You can save the waveform bitmap image by clicking the Save button at the top of the window.
2.
In the Save Bmp file window, click Browse to choose a location for the saved file. Type a filename and
click OK to save the data.
The image is saved as a bitmap file (.bmp).
Note: You can open a previously saved bitmap image file (.bmp) using the DSO Bitmap... button in the Open
Files area.
