EasyScope Operator's Manual
ES-OM-E-RevA
27
Refresh - Press to refresh the data.
Close - Press to close the Virtual Panel.

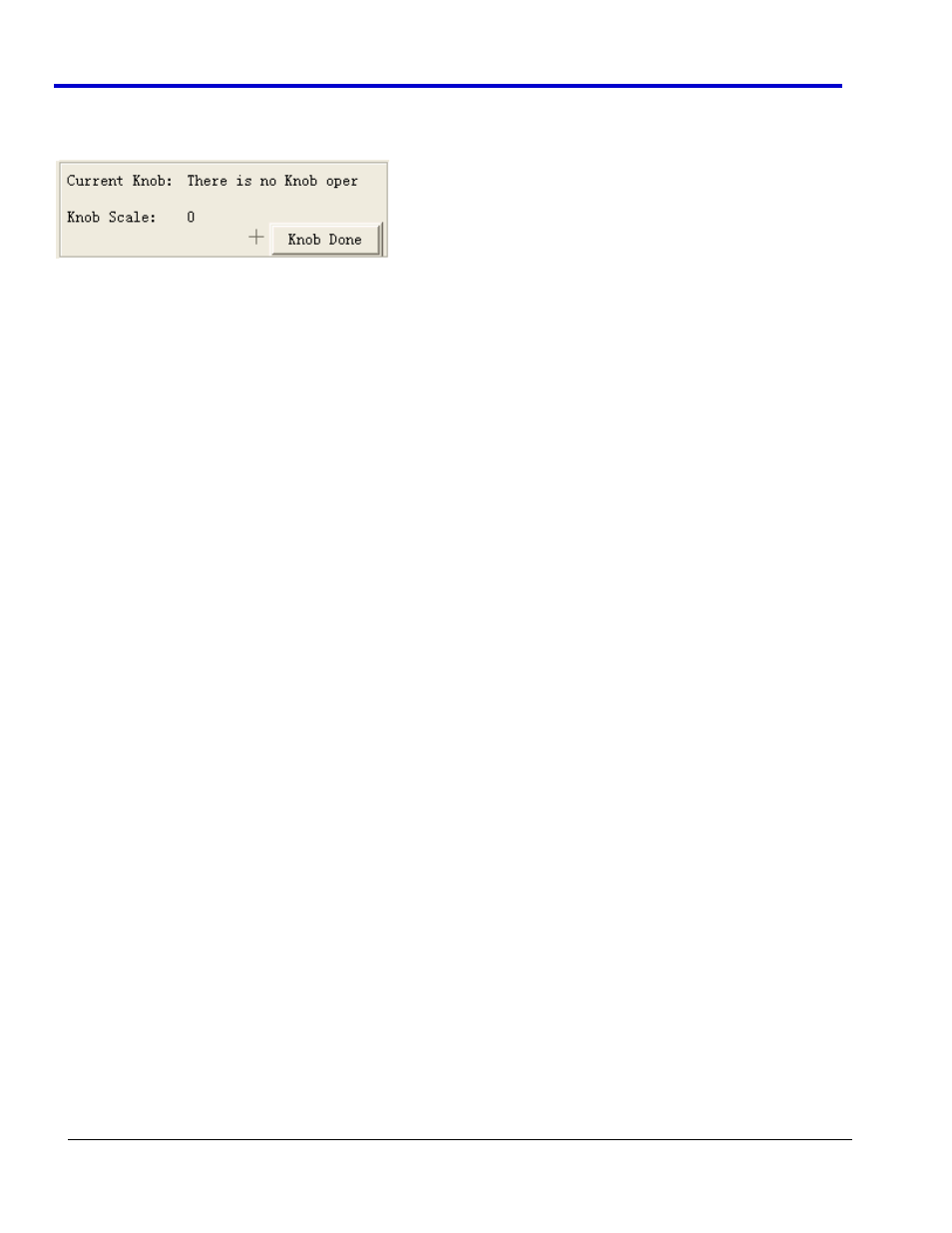

Knob Controls
Knob Scale - Displays the knob scale when you press the left/right Adjust knob arrows.
Knob Done - Press Knob Done when you want to apply the knob scale setting.
