EasyScope Operator's Manual

ES-OM-E-RevA

25

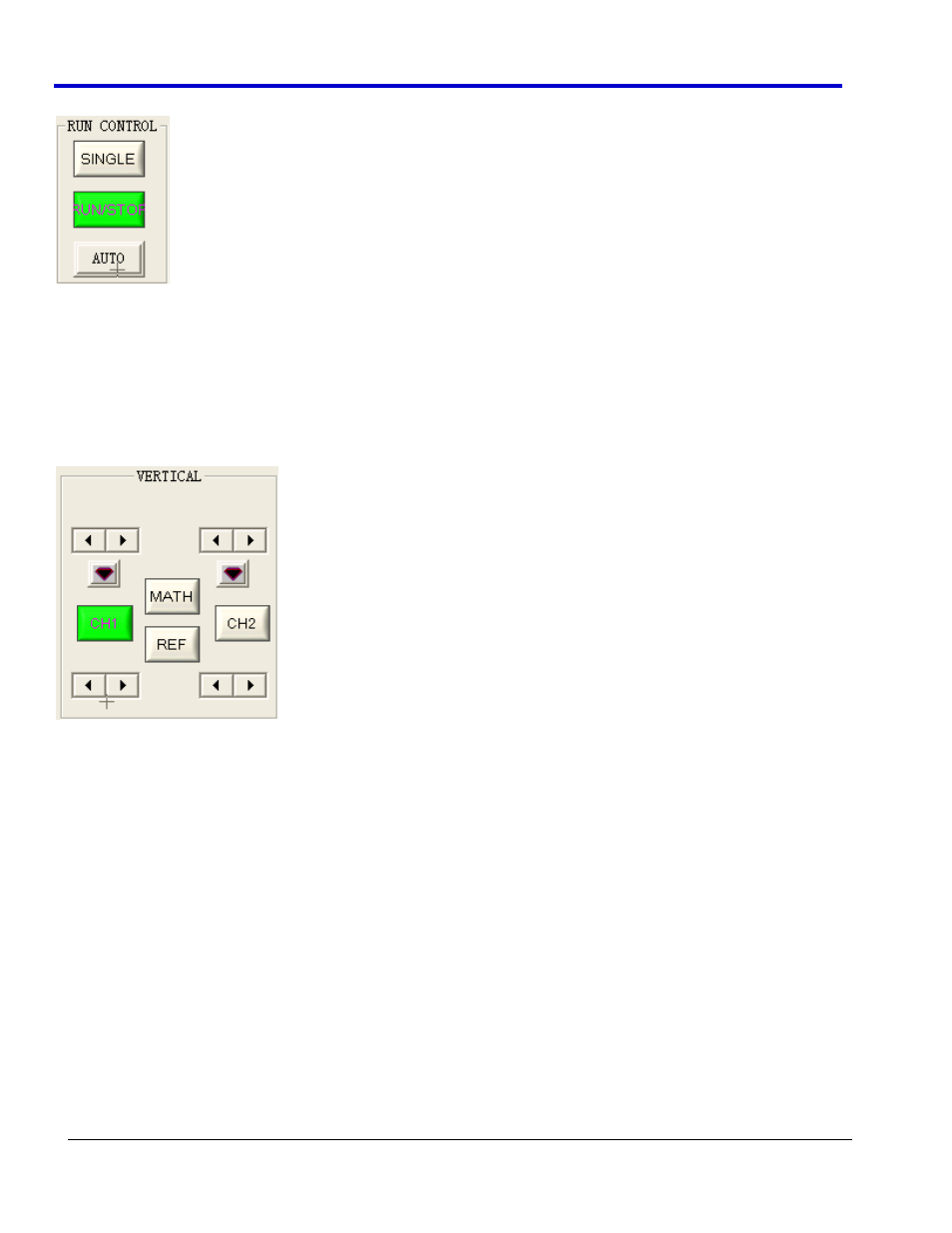

Run Control Buttons

SINGLE - Press to acquire a single waveform. Each time you press the SINGLE button, the oscilloscope
acquires another waveform. When the oscilloscope detects a trigger it completes the acquisition and stops.

RUN/STOP - Press when you want the oscilloscope to acquire waveforms continuously. Press RUN/STOP
again to stop the acquisition.

AUTO - Press to have the oscilloscope automatically identify the type of waveform and adjust the controls
to produce a usable display of the input signal. When you press the AUTO front panel button, the Auto Set
menu opens. You can use this menu to display multiple-cycle signals, a single-cycle signal, the rising edge,
the falling edge or recall the previous setup.

Vertical Controls

Volts/Div knobs (CH1/CH2)- Click the left/right arrow buttons to "turn" the Volts/Div knob to adjust the
volts/division setting (vertical gain) of the corresponding channel (CH1 or CH2). Press the knob to toggle
between fine (variable) and coarse (fixed) adjustments.

Channel buttons (CH1/CH2) - Press a channel button (CH1 or CH2) to turn that channel ON or OFF and
open the Channel menu for that channel. You can use the Channel menu to set up a channel. When the
channel is ON, the channel button is lit.

Vertical Position knobs (CH1/CH2) - Click the left/right arrow buttons to "turn" the Vertical Position knob
to adjust the vertical position of the corresponding channel (CH1 or CH2). Press to set the vertical position
to zero.

MATH - Press to display the Math menu. You can use the Math menu to use the oscilloscopes Math
functions.

REF - Press to display the Ref Wave menu. You can use this menu to save and recall two reference
waveforms (REFA and REFB) in internal memory.
