First Things...First
PXD222-OM-E Rev A ISSUED: November 2001
9

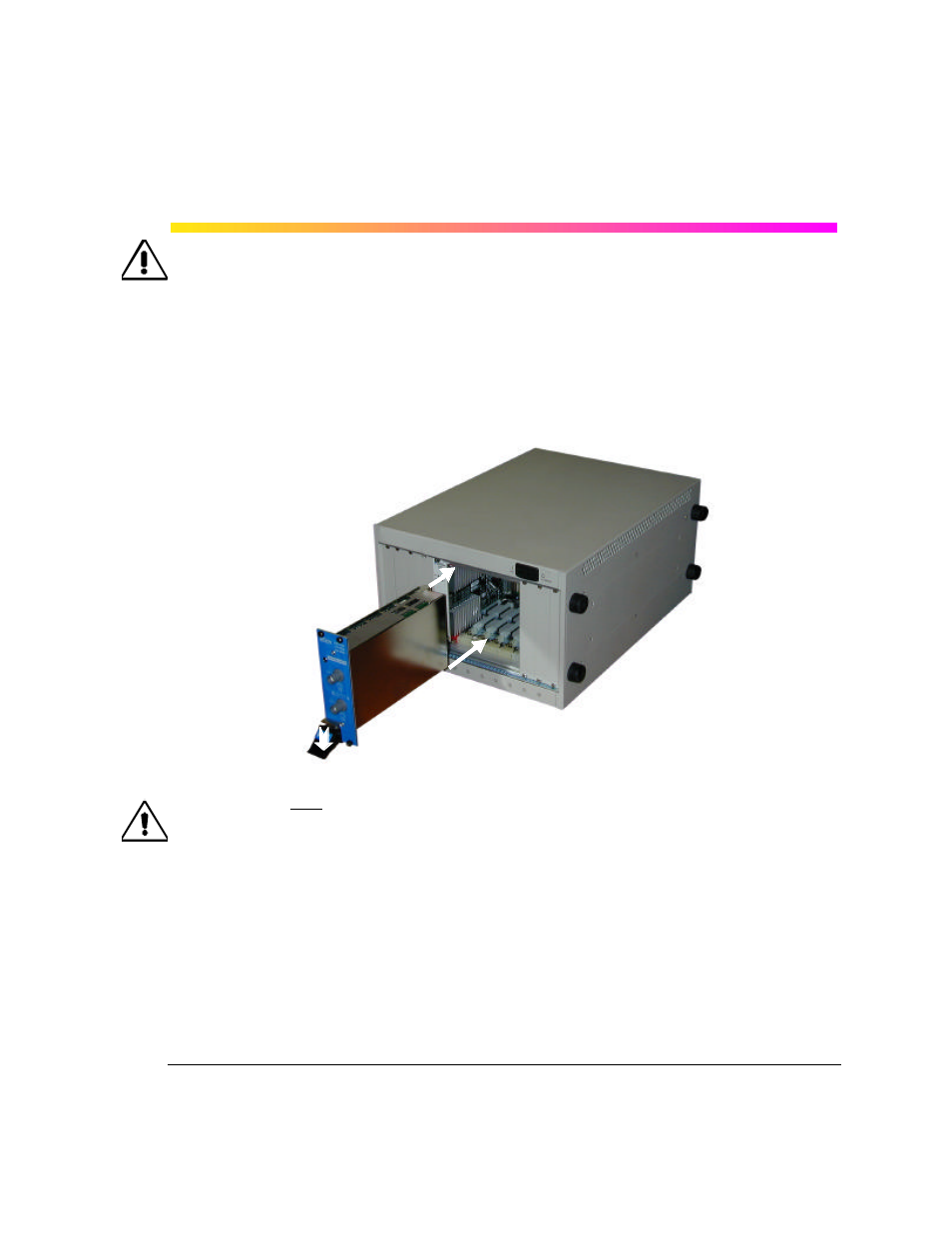

Install the PXD 222 Digitizer
1. Shut down the instrument and install the digitizer in the PXI chassis slot by first inserting the
digitizer’s card edge into the front module guides (top and bottom). Slide the digitizer to the
rear of the mainframe with the injector/ejector handle pushed down.
2. When you begin to feel resistance, push up on the injector/ejector handle to fully seat the digi-
tizer in the chassis.
3. Secure the digitizer to the front panel of the chassis with the mounting screws.
4. Cover any open slots in the PXI chassis to ensure proper air flow.
5. Power up the chassis. (If you are connecting to the chassis via an MXI-3 connection, power up
the computer after powering up the chassis.
CAUTION
Overheating will result if any slots in the PXI chassis remain open. Cover all open slots to
ensure proper air flow.
