Instructions
918246‐00‐RevA 7
• Disconnect your Zi‐8CH‐SYNCH module by first clicking the Disconnect Slave DSO button on the Remote
Slave DSO dialog, and then removing Crossover or Ethernet cables. Following this disconnection
procedure preserves your setup and settings when reconnecting. Also, the Master restores the
Reference Clock from External to Internal when the user disconnects the Slave from the Master.
Four Channel Setup using DBI on 20‐30 GHz WaveMaster 820, 825, or 830 Zi Master and Slave
Oscilloscopes

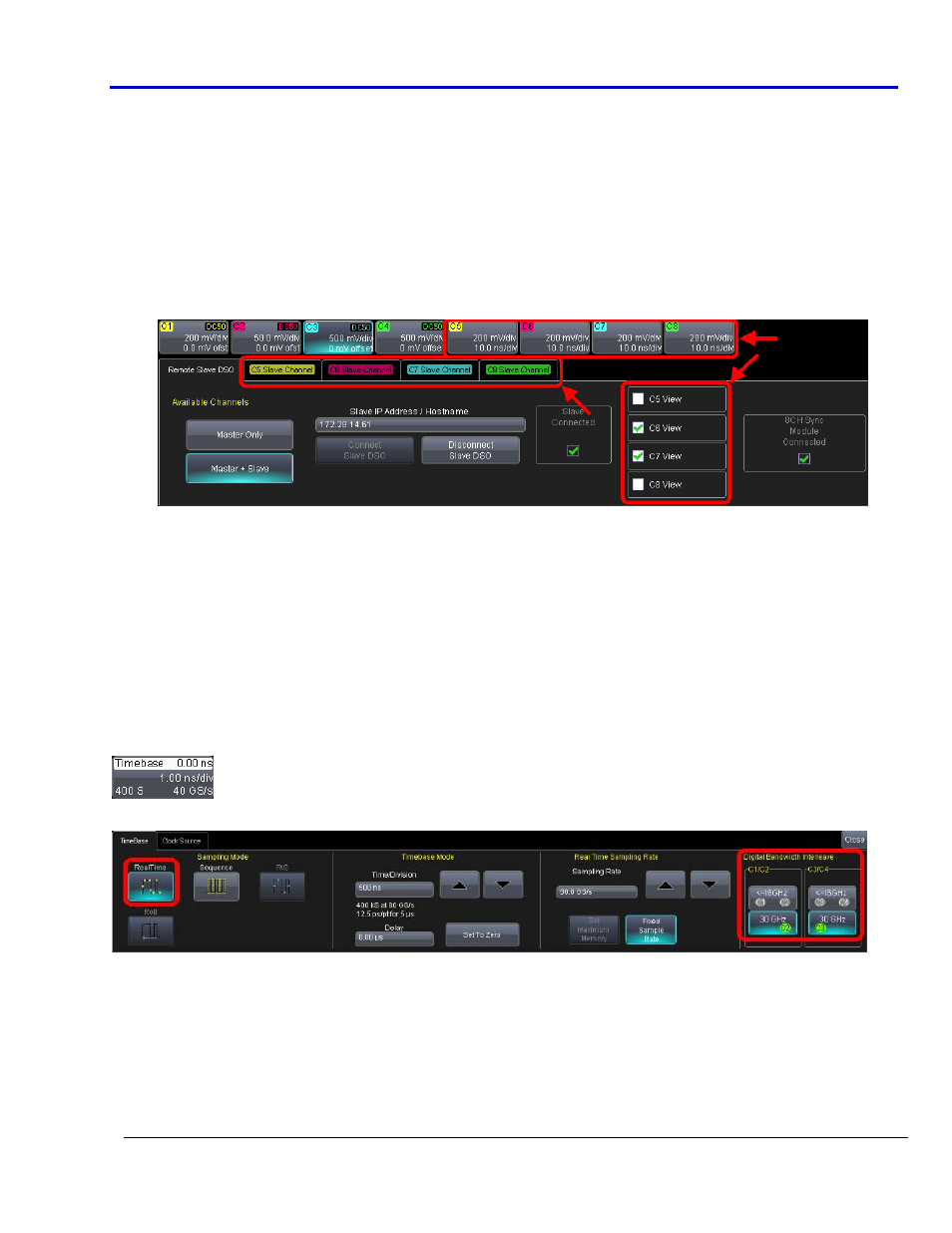

As mentioned previously, after performing DBI Signal Connections (on page 4) for the input channels (2
and 3 from the master and 6 and 7 from the slave) mark the corresponding C6 View and/or C7 View
check‐boxes on the Remote Slave DSO dialog, as desired, to display up to 4 signals on the master
oscilloscope.
PLEASE NOTE THE FOLLOWING:
• Trace descriptor labels and waveform data moves from the master to the slave instrument. Trace
descriptor labels are also updated with correct signal and timebase information.
• When disconnecting your Zi‐8CH‐SYNCH module by first clicking the Disconnect Slave DSO button on the
Remote Slave DSO dialog, and then removing Crossover or Ethernet cables. Following this disconnection
procedure preserves your setup and settings when reconnecting.
Synchronized Data Shown on Trace Descriptor Labels
After a proper synchronized connection between the two instruments, you should see trace descriptor labels for
additional channels displayed on the Master oscilloscope.
Timebase Trace Descriptor Label
Touching the Timebase trace descriptor label on the master oscilloscope shows the Timebase dialog.
The Master oscilloscope is set to RealTime sampling mode. This particular instrument is in Digital Bandwidth
Interleave (DBI) mode (far right of the previous dialog).
