Zi Oscilloscope Synchronization Module
4 918246‐00‐RevA
Signal Connections
With the aforementioned prerequisite configurations made, set your system up using the following steps:

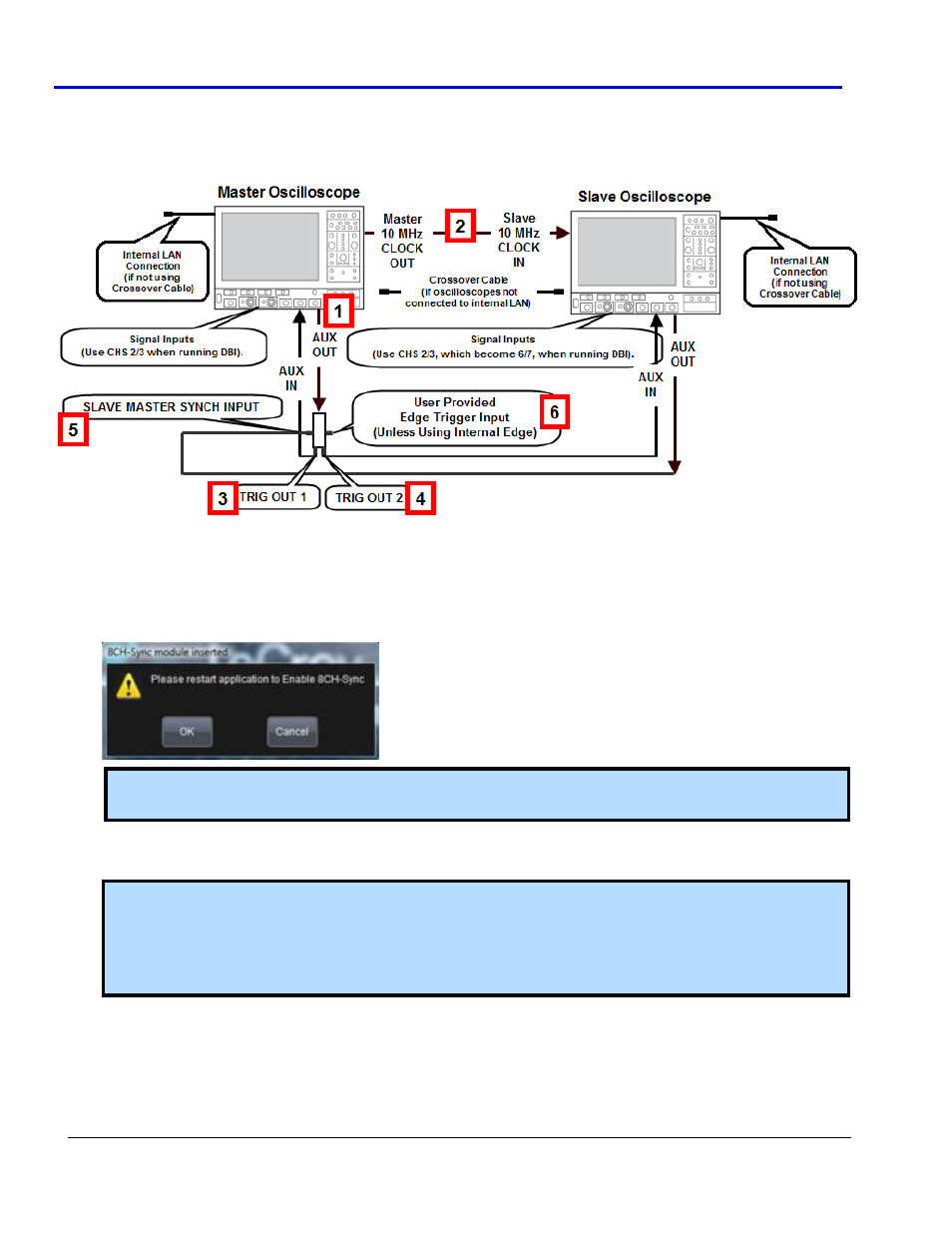

Numbered labels correspond with the following descriptions.
1. Attach the BNC end of the Zi‐8CH‐SYNCH module to the Master oscilloscope's AUX OUT connector. The
system prompts you to restart the oscilloscope application software if you attach the Zi‐8CH‐SYNCH
module while the oscilloscope software is running. Click the OK button and allow the oscilloscope
software to restart.
Note: The top of the Zi‐8CH‐SYNCH module bears a label with the input and output signals names and
the module name shown. Hold the module firmly and press inward until secure and it clicks in place.
2. Attach the Master oscilloscope's 10 MHz CLOCK OUT to the Slave oscilloscope's 10 MHz CLOCK IN. Also,
attach the included Ethernet Crossover Cable or connect both oscilloscopes to your internal LAN.
Note: Disconnect your Zi‐8CH‐SYNCH module by first clicking the Disconnect Slave DSO button on the
Remote Slave DSO dialog, and then removing Crossover or Ethernet cables. Following this
disconnection procedure preserves your setup and settings when reconnecting. Also, the Master
restores the Reference Clock from External to Internal when the user disconnects the Slave from the
Master.
3. Attach another provided 36" SMA cable to the TRIG OUT 1 (Master) of the Zi‐8CH‐SYNCH module and the
other end to the Master oscilloscope's AUX IN connector using an SMA‐BNC adapter.
4. Attach another provided 36" SMA cable to the TRIG OUT 2 (Slave) of the Zi‐8CH‐SYNCH module and the
other end to the Slave oscilloscope's AUX IN connector using an SMA‐BNC adapter.
5. Attach the last provided 36" SMA cable to the SLAVE SYNCH INPUT connector on the Zi‐8CH‐SYNCH
module and the other end to the Slave oscilloscope's AUX OUT connector using an SMA‐BNC adapter.
