User Guide: FAAST Fire Alarm Aspiration Sensing Technology® Networking
24

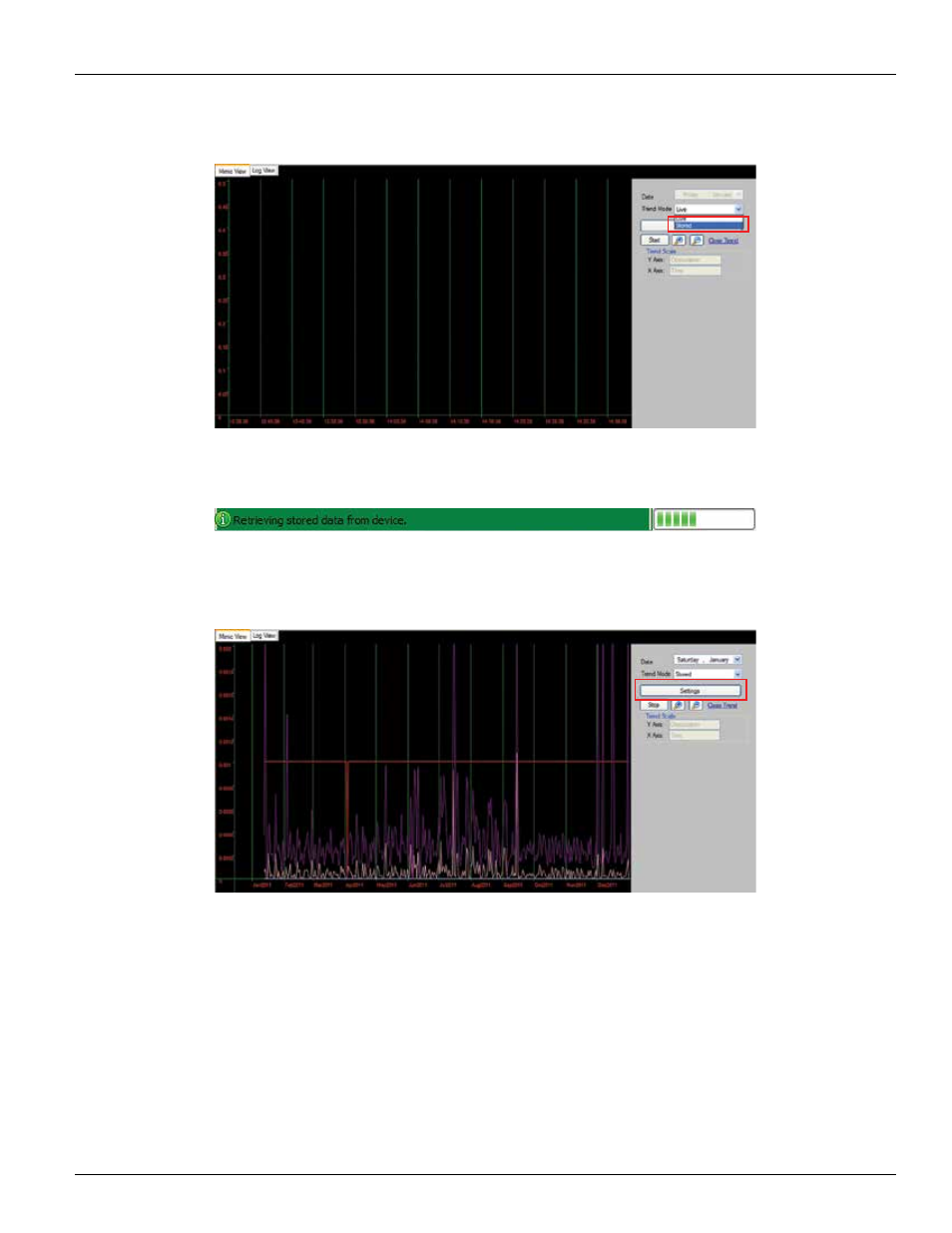

3. From the Trend Mode menu, select the Stored option.
4. Click Start to begin retrieval of the historical trend data. Retrieval may take several seconds. The status will be shown in the
progress bar at the bottom of the window.
5. Once the historical data has been retrieved, use the Date control to select the date where data viewing will begin. Use the and
buttons to zoom to the desired time resolution. The resolution on the Y axis can be adjusted by clicking Settings and setting the
Maximum Obscuration
.
Note: The trend graph control can be resized by moving the cursor to the black-gray border just above the Date menu. When the
cursor changes, click to drag and resize.
Log View
The Log View provides a way to remotely view detector events as they occur as well as retrieve the event log that is stored on the
detector. It also provides the facility to create and view short text messages that may be stored on the detector. These messages may
be useful for documenting maintenance or configuration changes.
To use the Log View, follow these steps:
1. Connect to the detector and switch to the Monitoring View. For instructions, see the previous section.
