User Guide: FAAST Fire Alarm Aspiration Sensing Technology® Networking
22

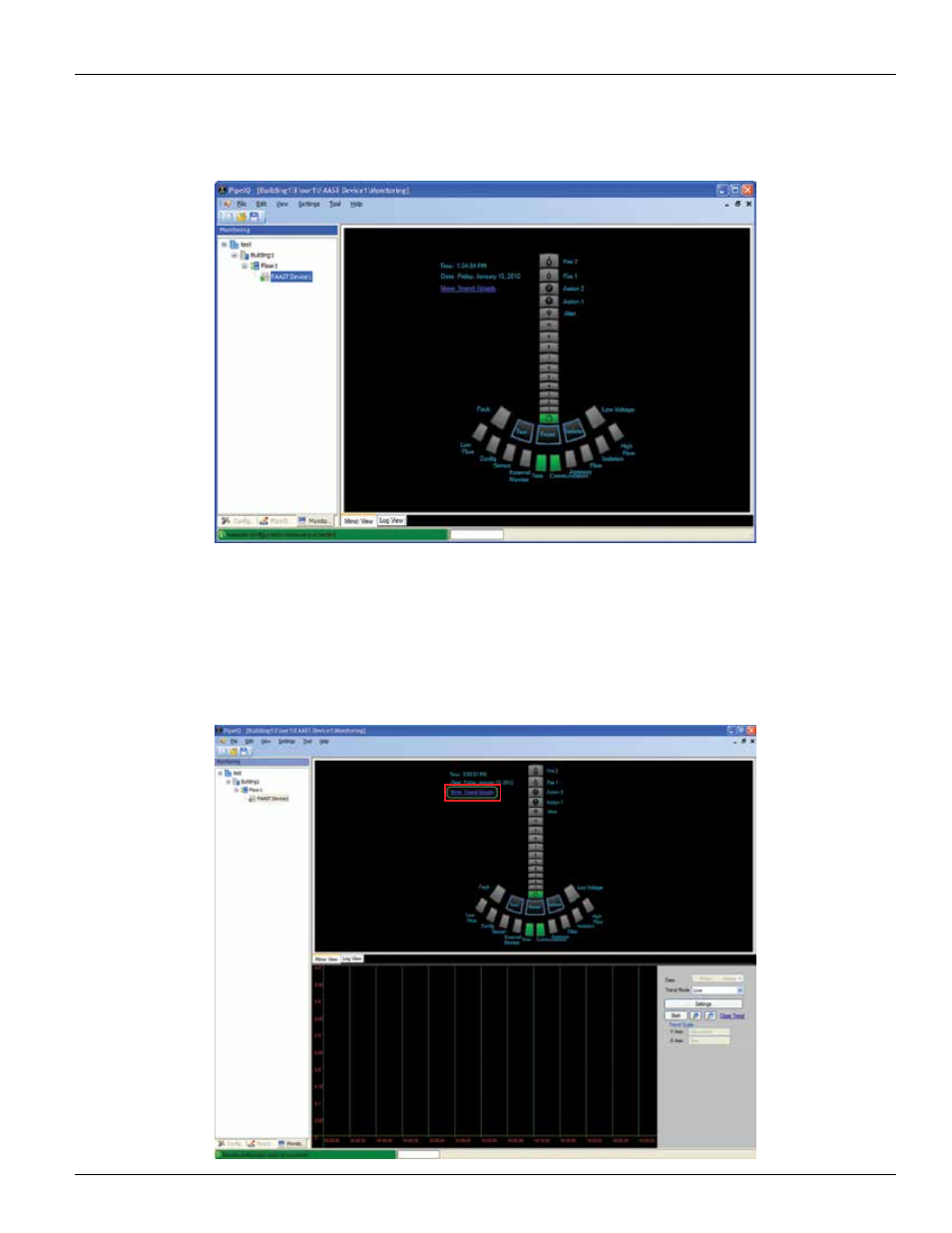

3. Double-click on the detector icon to open the Mimic View. A graphical representation of the front panel will appear. For
detailed information on the front panel, see the product manual.
4. Within 15 seconds, the indicators will illuminate, showing the current status. From then on, the display will continue to update
every 15 seconds.
Live Trend Graph
The PipeIQ trend graph plots a reading of the particulate level in real-time. To begin a live trend graph monitoring session:
1. Connect to the detector and switch to the Monitoring View. For instructions, see the previous section.
2. From the Mimic View, click the blue View Trend Graph text to open the trend graph. The trend graph opens below the Mimic View.
