ALUMINUM VIEWPOINT RUNNING BOARDS

2014 SORENTO

Page 7 of 8

12/4/13 Rev1 (DP)

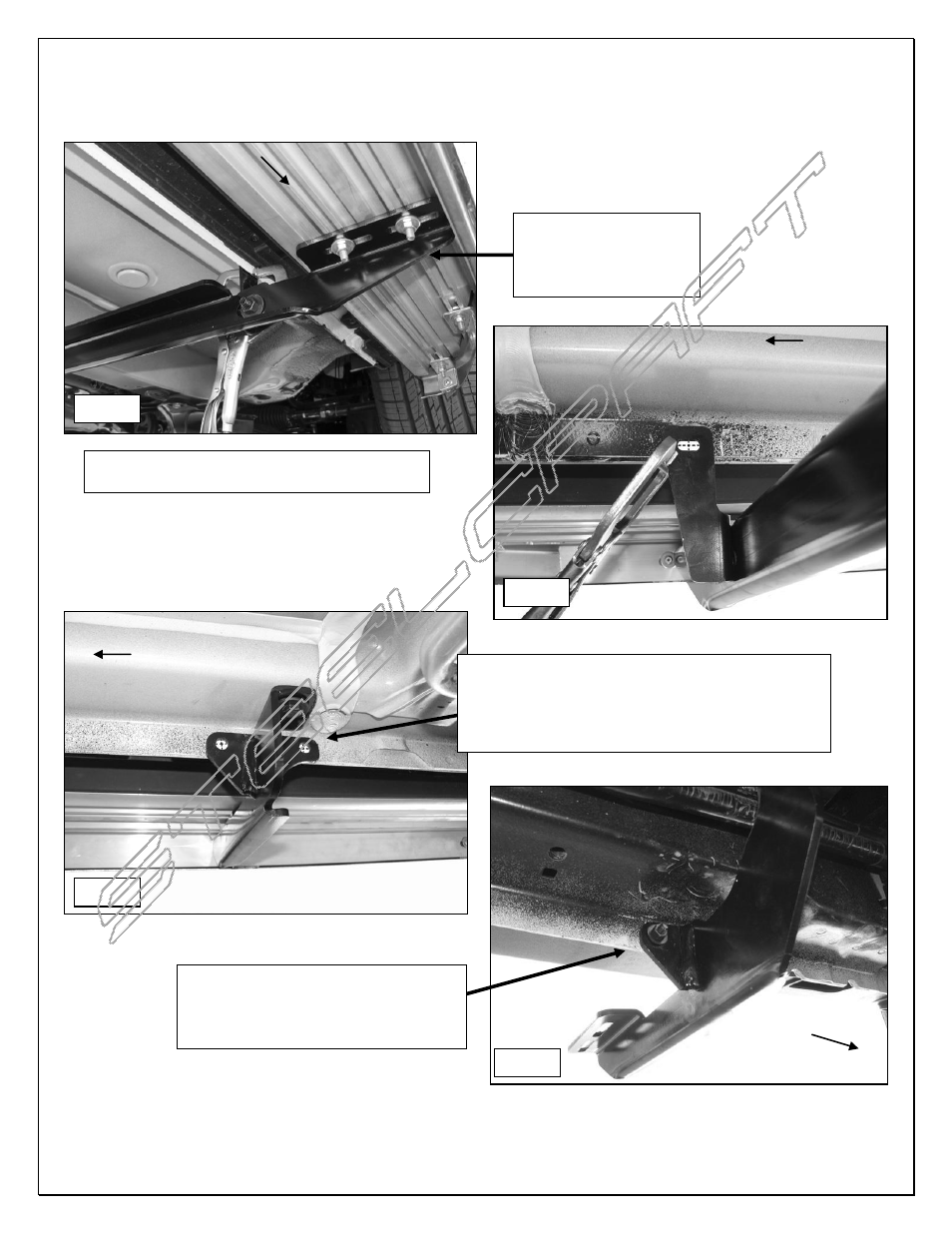

Passenger Side Installation Pictured

Fig 14

Fig 15

Front

Use clamp to temporarily hold front Bracket
up to pinch weld until final installation

(2) 6mm x 22mm STD
Flat Washers
(2) 6mm Lock Washers
(2) 6mm Hex Nuts

Mark the Bracket location onto back of pinch
weld. Do not drill until after Running Board is
properly aligned and adjusted. Use clamp to
temporarily hold Support Bracket in place. Do
not drill too close to bottom edge of pinch weld

(2) 6mm x 25mm Hex Bolts
(4) 6mm x 18mm Small Flat Washers
(2) 6mm Lock Washers
(2) 6mm Hex Nuts

Front

Rear

Fig 16

Fig 17
