Steelcraft Automotive 180310 RUNNING BOARD - Manual

ALUMINUM VIEWPOINT RUNNING BOARDS
2014 SORENTO
Page 1 of 8 12/4/13 Rev1 (DP)
PARTS LIST:
1 Driver/Left Running B oard with 1” Rubber Backing
(use on SX & Limited models) 4 12mm Plastic Retainer
1 Passenger/Right Running B oard with 1” Rubber
Backing (use on SX & Limited models)
4 12mm Lock Washer
2 2” Tall Rubber Backing (use on LX and EX
models)
4 12mm x 24mm OD x 2.5mm Flat Washers
1 Driver/Left Front Mounting Bracket 4 12-1.75mm Hex Nut
1 Passenger/Right Front Mounting Bracket 2 8-1.25mm x 25mm Hex Bolt
1 Driver/Left Front Support Bracket 4 8mm x 22mm OD x 2mm Flat Washers
1 Passenger/Right Front Support Bracket 2 8-1.25mm Nylon Lock Nuts
1 Driver/Left Center Mounting Bracket 12 6mm T-Bolts
1 Passenger/Right Center Mounting Bracket 12 6-1.0mm x 25mm Hex Bolts
1 Driver/Left Rear Mounting Bracket 14 6mm Lock Washers
1 Passenger/Right Rear Mounting Bracket 22 6mm x 18mm OD x 1.6mm Small Flat Washers
2 12mm x 40mm Short Button Head Bolt Plate 12 6mm x 22mm OD x 2mm STD Flat Washers
2 12mm x 35mm Long Bolt Plate 12 6mm Hex Nuts
2 14mm x 50mm x 4mm Spacer Washer 10 6-1.0mm Nylon Lock Nuts

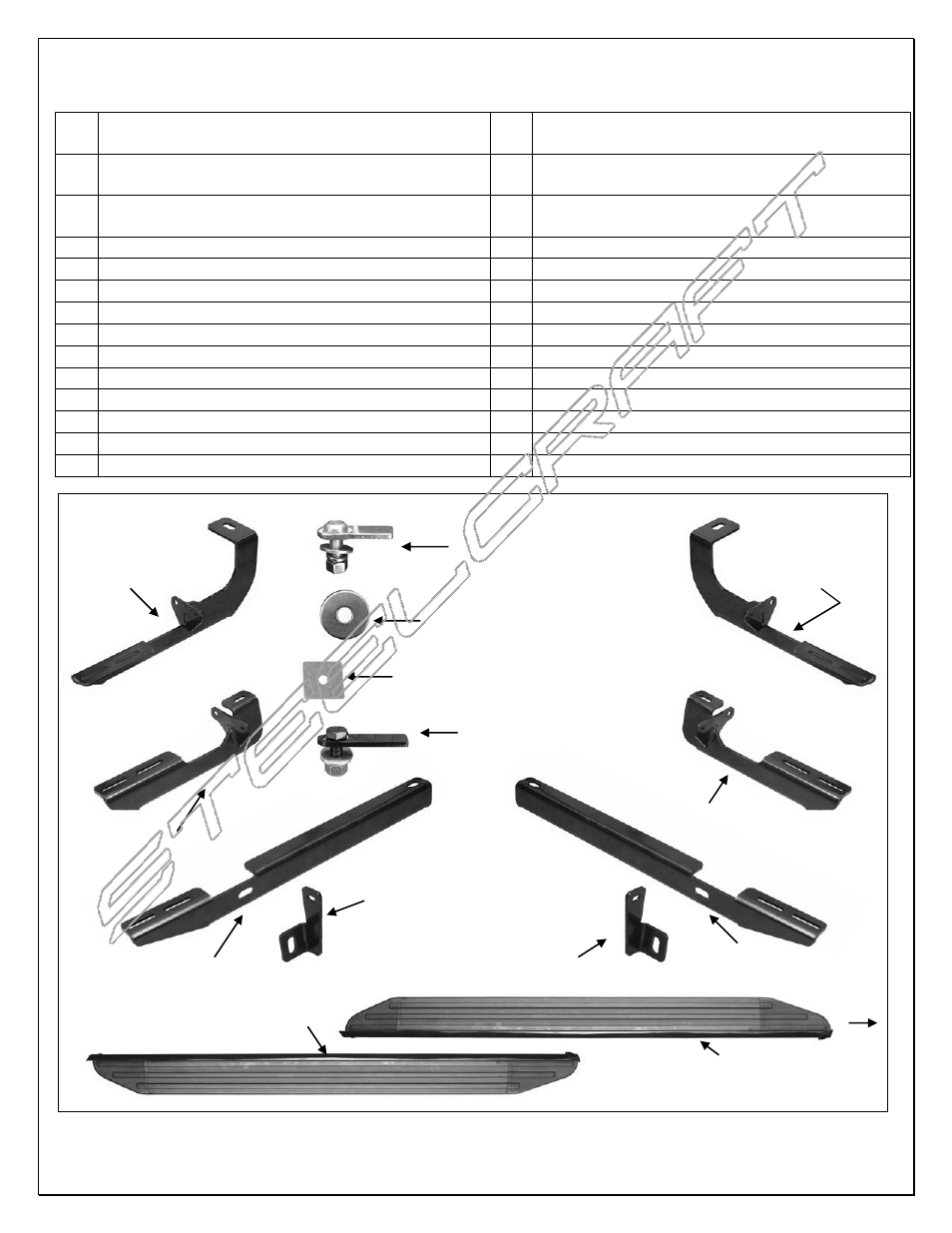

Driver/Left Front
Mounting Bracket
Passenger/Right
Rear Mounting
Bracket
Driver/Left
Rear Mounting
Bracket
(2) 12mm x 40mm Short
Low Profile Bolt Plates
(2) 12mm x 35mm Long
Bolt Plates
Driver/Left Running Board
Passenger/Right Running Board
Front
(2) Spacer Washers
Passenger/Right Front
Mounting Bracket
Passenger/Right Front
Support Bracket
Driver/Left Center
Mounting Bracket
Driver/Left Front
Support Bracket
Passenger/Right Center
Mounting Bracket
(4) 12mm Plastic Retainers
