Steelcraft Automotive 180310 RUNNING BOARD User Manual
Page 5
ALUMINUM VIEWPOINT RUNNING BOARDS
2014 SORENTO
Page 5 of 8
12/4/13 Rev1 (DP)

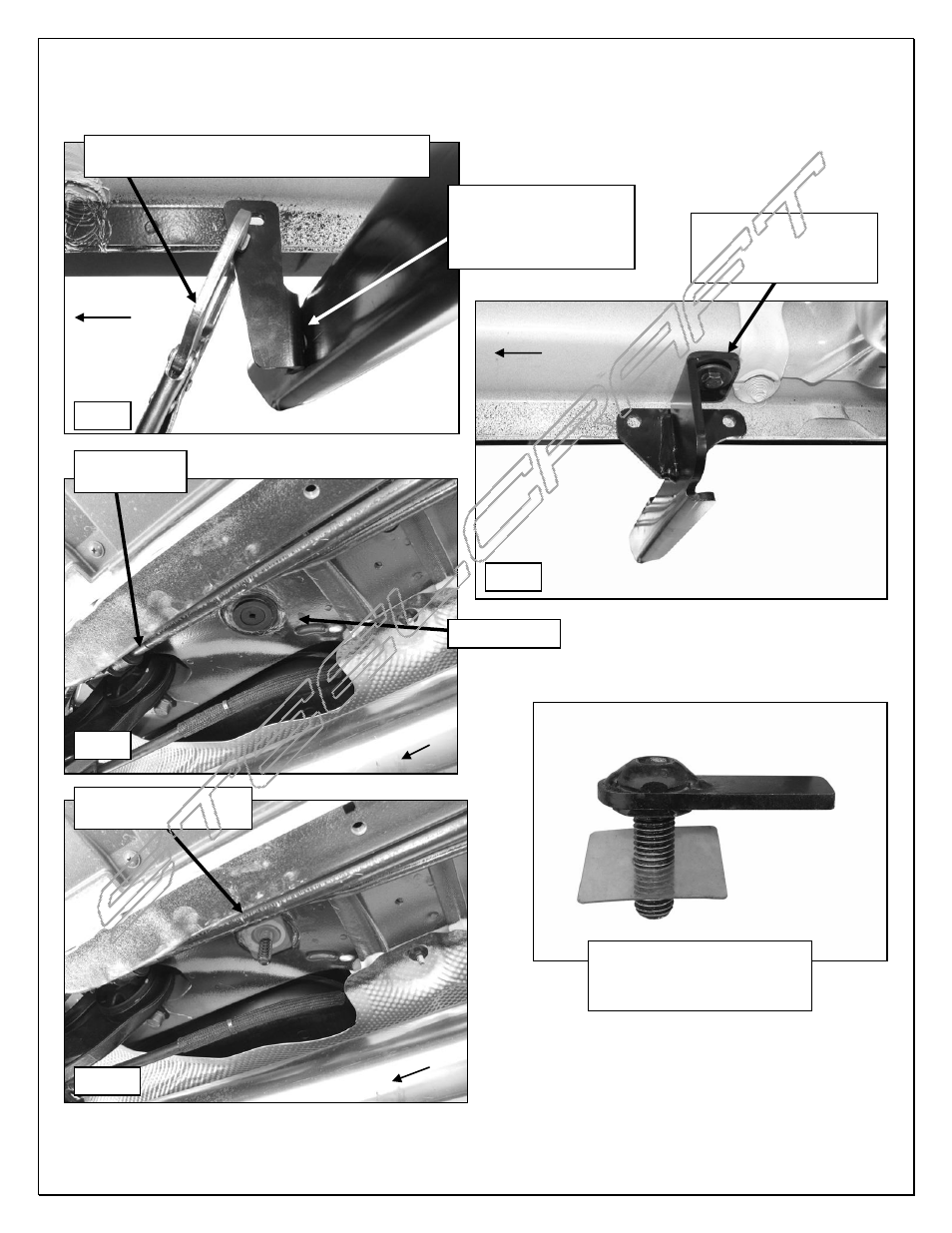

Passenger Side Installation Pictured
Fig 9B
Fig 6
Fig 7
(Fig 9A) 12mm x 40mm
Short Low Profile Bolt Plate
with 12mm Plastic Retainer
12mm x 40mm Short
Low Profile Bolt Plate
Rear
Rear
Remove plug
Use clamp to temporarily hold front Bracket
up to pinch weld until final installation
8mm x 25mm Hex Bolt
(2) 8mm Flat Washers
8mm Lock Washer
8mm Hex Nut
6mm x 25mm Hex Bolt
6mm Lock Washer
6mm Flat Washer
Front
Front
Fig 8
Rear trailing
arm mount
