13.3 ACCELERATION (ACC) – Sets the amount of time for the motor to

accelerate from zero speed to full speed. The ACC Trimpot is factory

set to 1.5 seconds. For longer acceleration time, rotate the ACC

Trimpot clockwise. For more rapid acceleration, rotate the ACC

Trimpot counterclockwise. See Figure 32.

Note: Rapid acceleration settings may cause the current limit circuit

to activate, which will extend the acceleration time.

13.4 DECELERATION (DEC/B) – Sets the amount of time for

the motor to decelerate from full speed to zero speed. The

DEC/B Trimpot is factory set to 1.5 seconds. For longer

deceleration time, rotate the DEC/B Trimpot clockwise. For

more rapid deceleration, rotate the DEC/B Trimpot counter-

clockwise. See Figure 33.

Application Note – On applications with high inertial loads,

the deceleration may automatically increase in time. This will

slow down the rate of speed of decrease to prevent the bus

voltage from rising to the Overvoltage Trip point. This function

is called Regeneration Protection. It is recommended that

for very high inertial loads that both the ACC and DEC/B

Trimpots should be set to greater than 10 seconds.

For rapid stopping, install the optional DBVF – Dynamic

Brake Module (Part No. 9598). See Section 3.5, on page 10.

13.5 SLIP COMPENSATION (COMP) – Sets the amount of

Volts/Hz to maintain set motor speed under varying loads.

The COMP Trimpot is factory set to 1.5 Volts/Hz, which

provides excellent speed regulation for most motors. To

increase the slip compensation, rotate the COMP Trimpot

clockwise. To decrease the slip compensation, rotate the

COMP Trimpot counterclockwise. See Figure 34.

The slip compensation may be adjusted as follows:

1. Wire an AC RMS ammeter in series with one motor

phase.

2. Run the motor and set the unloaded speed to approxi-

mately 50% (900 RPM on 4-pole 1500/1725 RPM

motors).

3. Using a tachometer, record the unloaded speed.

4. Load the motor to the nameplate rated current (AC

Amps).

5. Adjust the COMP Trimpot until the loaded RPM is equal to

the unloaded RPM.

6. The motor is now compensated to provide constant speed under varying loads.

24

MAX

-

+

ADJUST

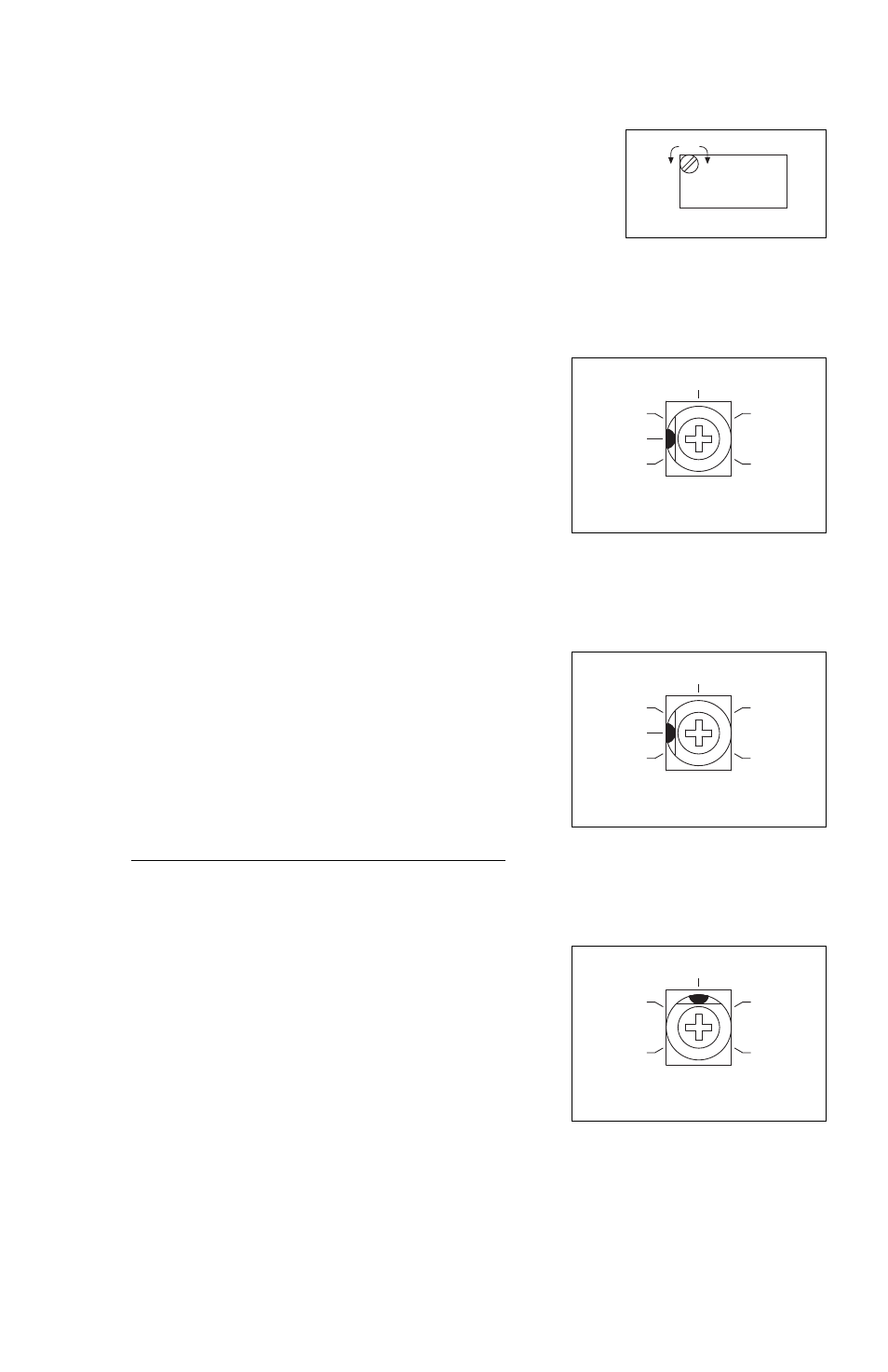

FIGURE 31 – MAXIMUM

SPEED TRIMPOT

MODELS KBVF-45, 48

(Shown Factory Set to 1.5 Seconds)

1.5

.3

3

ACC

20

10

17

FIGURE 32 – ACCELERATION

TRIMPOT RANGE

ALL MODELS

(Shown Factory Set to 1.5 Seconds)

1.5

.3

3

DEC/B

20

10

17

FIGURE 33 – DECELERATION

TRIMPOT RANGE

ALL MODELS

(Shown Factory Set to 1.5 Volts/Hz)

COMP

0

3

.8

1.5

2.3

FIGURE 34 – SLIP COMPENSATION

TRIMPOT RANGE

ALL MODELS
