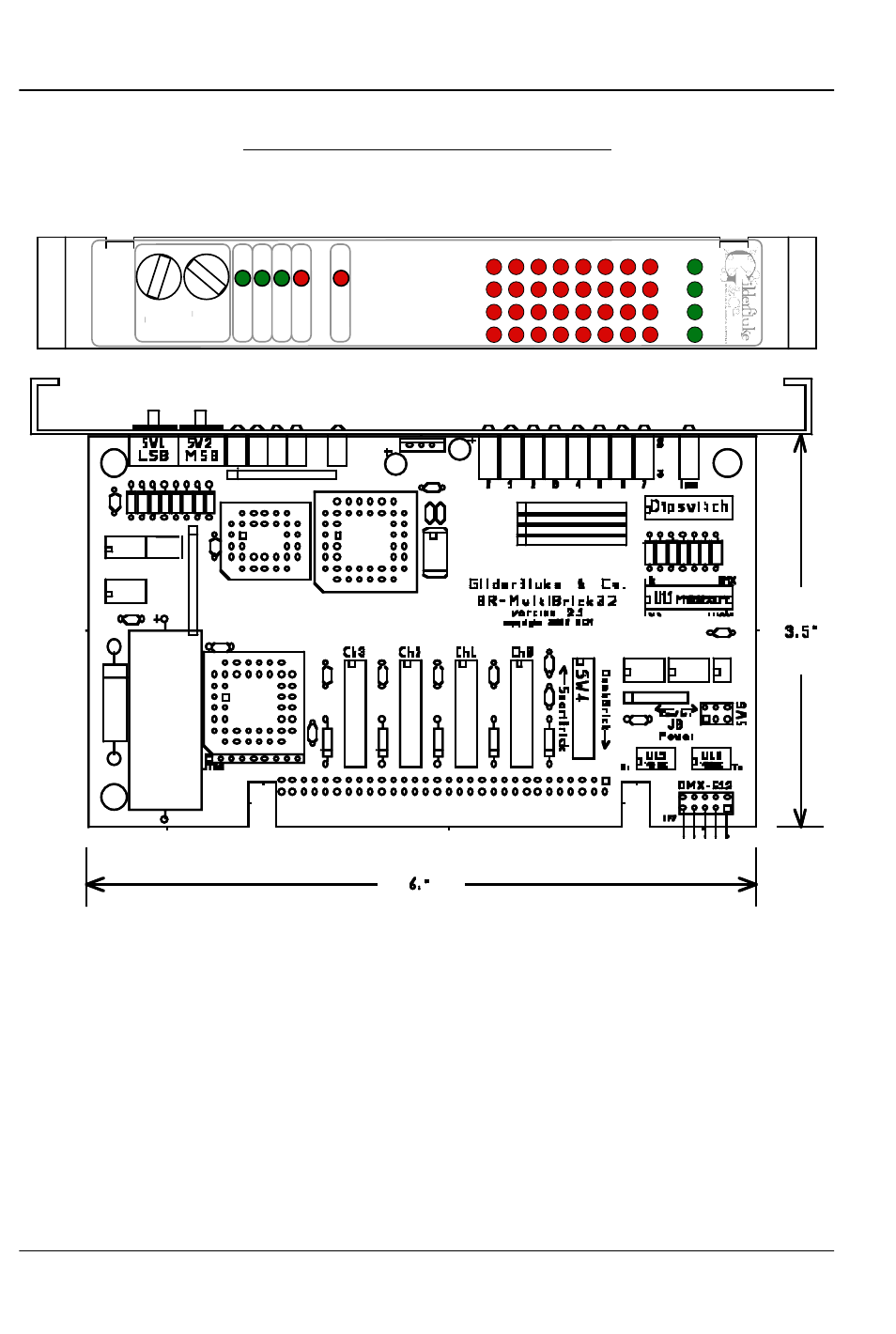

BR-MultiBrick32 Indicators
There are only a small number of connections, indicators, and configuration dip-
switches on each BR-MultiBrick32.
Board Error
DMX-
512
Brain Heart/
Running
Heartbeat
Addres
s
BR-Multi-
Brick32
Record
MSB
(x0h)
0
1
2
3
4
5
6
7
Outputs
0
1
2
3
Fuse
s
LSB
(0
xh)
C
4
0
8
E
2
6
A
D
F
1
B
9
7
5
3
C
4
0
8
E
2
6
A
D
F
1
B
9
7
5
3
0
1
2
3
There are five Status LEDs on the BR-MultiBrick32:
1) Heartbeat: The ‘heartbeat’ will always flash so that you can see
that the BR-MultiBrick32 is alive. If this LED doesn’t flash at least
twice per second, you should power down the BR-MultiBrick32
and check the power supply and connections to the BR-
MultiBrick32. If this output ever stops flashing, a special circuit on
the BR-MultiBrick32 will reset and restart the microcontroller in less
than a second.
2) 'Smart' Brick Heart/Brick Running: Depending on the mode of
operation the BR-MultiBrick32 is in, this LED has several different
functions:
