Hang tv – Salamander Designs SL/PM2/A User Manual

Page 2

Slide the post bracket into the posts as shown below,

guiding the flat nuts (G) to ensure all parts slide freely.

Position the post bracket vertically along the posts where
you wish the center of the television to rest.

Tighten button head screws (F) with hex key (H) to firmly

set the bracket onto the posts.

B. Assemble 8 flat nuts (G) with 8 set screws (M) and

drop into the left and right sides of each post.

C. Position the set screws (M) into the thru holes and tighten

through to the base plate pins. This will lock the posts to
the top of your Synergy cabinet.

Tighten firmly w ith hex key (O).

Thru Holes

Salamander Designs Ltd.

w w w.salamanderdesigns.com

800-535-5659

Doc No. 500-888/ v11.10

Squeeze to remove.

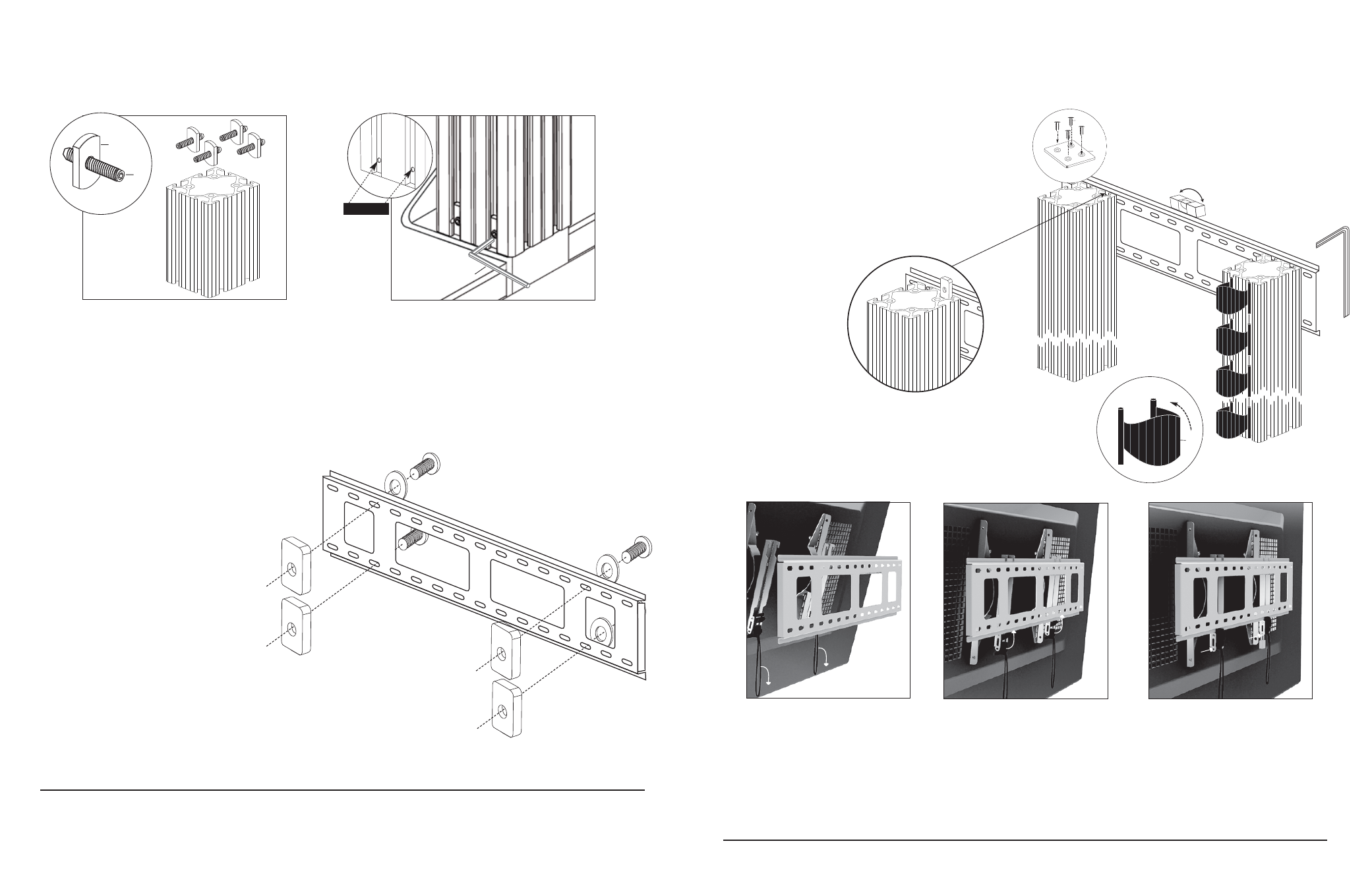

3. ATTACH TV BRACKETS TO TV

5. INSTALL POST BRACKET WIRE MANAGERS & CAPS

4. ASSEMBLE POST BRACKET

Refer to Step 2 of the Flexo 100/L Manual.

6. HANG TV

Assemble 1 Button Head Screw with Washer
through the indicated slot (4 places) with flat nuts
loosely on each.

Thread the screws loosely to the nuts just enough
to ensure the nut does not fall off.

Center TV Brackets (II) on Wall Bracket (I)
and push black Click Fasteners up into
lock position.

Install Pad Lock (IV).

Pull on black cord to unlock Click
Fasteners and hook TV Brackets (II)
onto Wall Bracket (I) from top.

LIMITED WARRANTY- For five full years Salamander Designs Ltd. will repair or replace, at our option, any product defective in materials or craftsman-
ship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure.
Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any
damage incurred in a shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned prepaid, via
UPS within the continental U.S.A. only.
