6 Type ‘config’ and press
. Line by line, you will be presented with a series
of setting options with possible responses in (round brackets) and any
default values shown in [square brackets]. Enter the required information for
each line and press
. Alternatively, to accept a default setting, just press
.
• IP auto configuration (none/dhcp/bootp) [dhcp] : - select ‘none’.
• IP address [192.168.1.22] : - enter an appropriate IP address for the
SmartView World.
• NetMask [255.255.255.0] : - enter an appropriate Subnet mask.
• Gateway (0.0.0.0 for none) [0.0.0.0] : - if appropriate, enter an
appropriate Gateway address.
• Enable IP Access Control (yes/no) [no] : - this setting switches IP packet
filtering on or off. It is mainly used to re-enable access after a faulty IP
access control configuration has been activated (see
in
the Configuration chapter for more details).
• LAN interface speed (auto/10/100) [auto] : - choose an appropriate
Ethernet speed or select ‘auto’.
• LAN interface duplex mode (auto/half/full) [auto] : - choose an
appropriate duplex setting or select ‘auto’.
7 Once all details have been entered, confirm that they are correct. The IP
section of SmartView World will store the new data and perform an internal
reset. You can now power down the SmartView World and the computer
and disconnect the serial link between them.
8 Now proceed to the next stage To make the final IP port connection
ð
To make the final IP port connection (stage 2 of 2)
1 Ensure that power is disconnected from the SmartView World and all
devices to be attached.
2 There are two IP main connection methods: using Ethernet or using the
serial port (with external modem/ISDN adapter). Both methods are outlined
below:

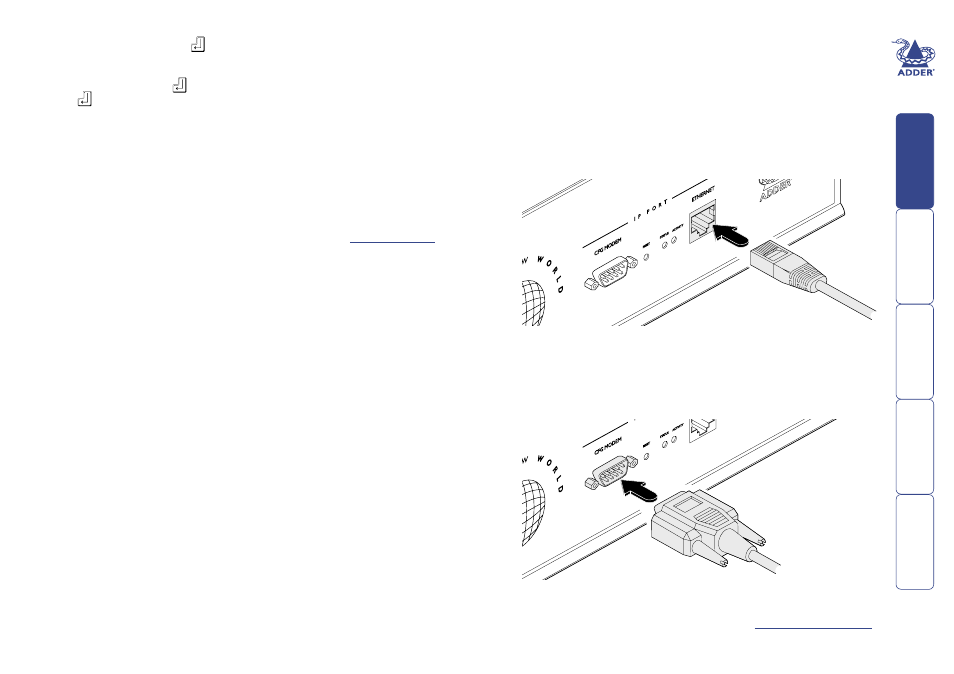

Ethernet connection
a Connect a suitable twisted pair cable to the RJ45 socket (labelled
‘ETHERNET’) on the front panel of the SmartView World.
b Connect the other end of the twisted pair cable to an Ethernet hub
running a 10Mbps or 100Mbps.
Serial port connection
a Connect a serial (non-crossover) cable to the 9-way D-sub socket
(labelled ‘CFG/MODEM’) on the front panel of the SmartView World.
b Connect the other end of the serial cable to a suitable external modem
or ISDN adapter.
3 You can now proceed to the IP configuration stage
in the Configuration chapter.
