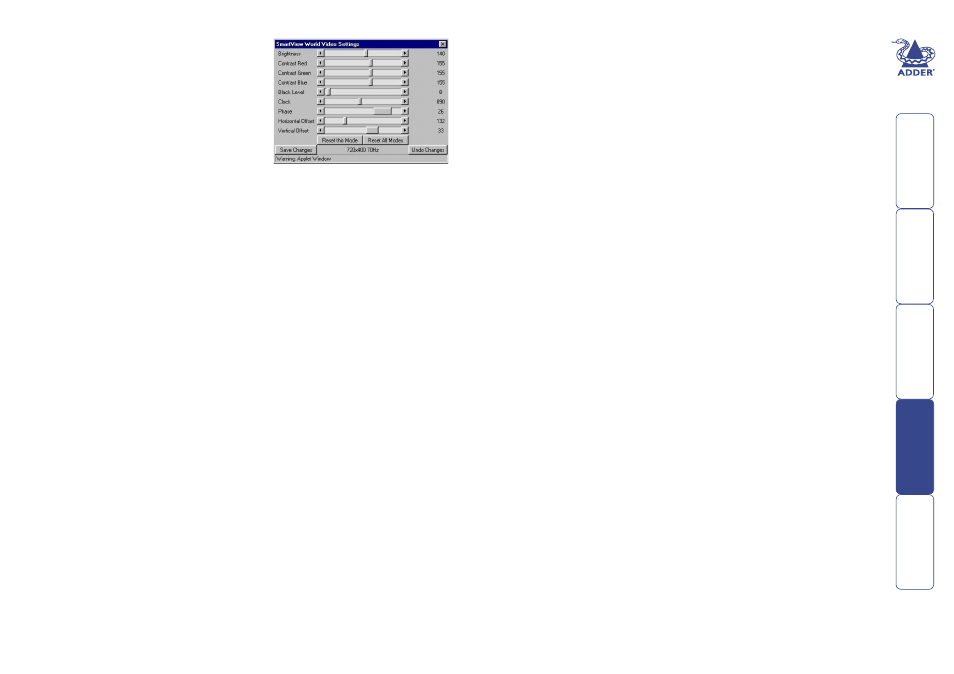

The ‘Video Settings’ option within
the Remote Console offers a range of
adjustments to obtain the best results
from the screen image.
Note: Brightness, Black Level and Contrast
affect all modes and KVM ports globally,
the other settings are changed specifically
for each mode on each KVM port.

Brightness
Controls the brightness of the picture.

Black level
Defines what intensity of colour is still recognized as black.

Contrast
Controls the contrast of the red, green and blue elements of the picture.

Clock
Defines the horizontal frequency for a video line and depends on the video
mode. Different video card types may require different values here. The default
settings in conjunction with the auto adjustment procedure should be adequate
for all common configurations. If the picture quality is still bad after auto
adjustment you may try to change this setting together with the sampling phase
to achieve a better quality.

Phase
Defines the phase for video sampling, used to control the display quality
together with the setting for sampling clock.

Horizontal Position
Adjusts the horizontal positioning of the video image within the window.

Vertical Position
Adjusts the vertical positioning of the video image within the window.

Reset this Mode
Resets mode specific settings to their factory defaults.

Reset all Modes
Resets all settings to their factory defaults.

Save changes
Save changes permanently.

Undo changes
Restore last settings.
